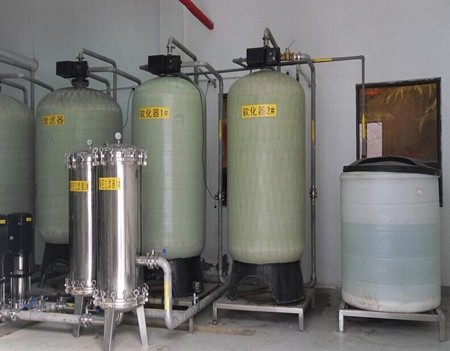

Fully automatic softening equipment: The softening equipment uses cation resin to soften the source water,The main purpose is to enable the cation resin to adsorb calcium and magnesium ions in water(The main components that form scale),Reduce the hardness of the source water,It can also carry out intelligent resin regeneration and be recycled.

1.Users can choose manual control systems according to their conditions to save costs.

2.If the user24The continuous water usage for hours can be alternately regenerated according to the water usage time,One on standby and one in use.

3.Users can also configure a multi-media filter for the first stage according to the water quality requirements,It is used to remove sediment, rust, colloids and suspended solids from water. The secondary configurable activated carbon filter is used to remove pigments, odors, biochemical organic matter in water, and reduce the residual chlorine value and pollution in water. Three-level configuration of water softening equipment.

4.The effluent quality meets the national standard for low-pressure boiler feed water.

5.Time control-Timing type; Flow control-Metering type. In terms of operation, various combination methods such as single tank, double tank and multiple tanks are adopted. When making a selection, users can choose according to their needs. In terms of operation, this product not only has the function of automatic operation but also can be operated manually.

6.Technical indicators and job requirements

Inlet water pressure0.18-0.6mpa

Operating temperature1-55℃

Source water hardness<8mmol/l

Operation mode: Automatic/Manual water discharge

Hardness≤0.03mmol/l

Regenerantnacl

Regeneration method: Downstream flow/"Countercurrent"

Exchanger001*7Strongly acidic ion exchange resin

Control method: Time/"Traffic"

Working power supply220v/50hz
