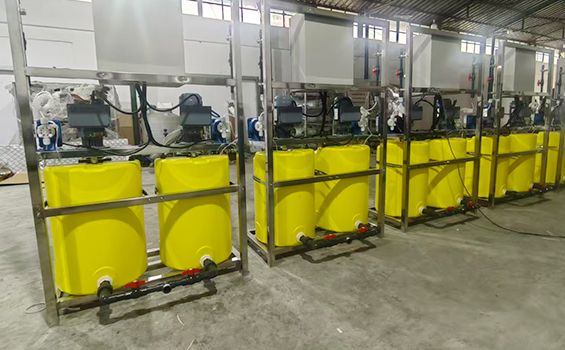

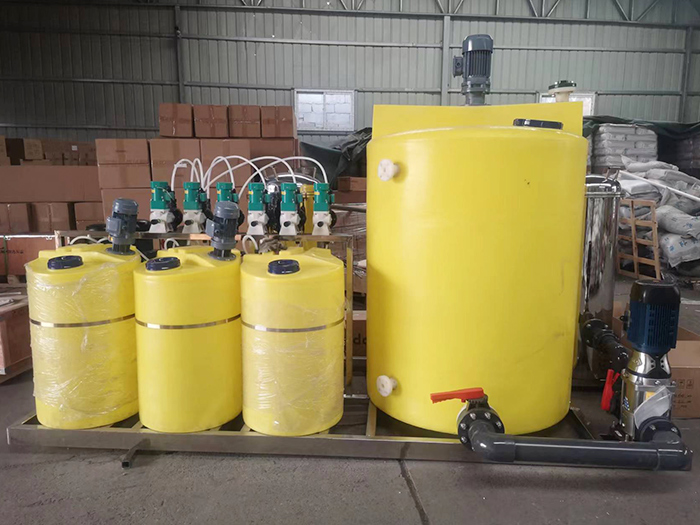

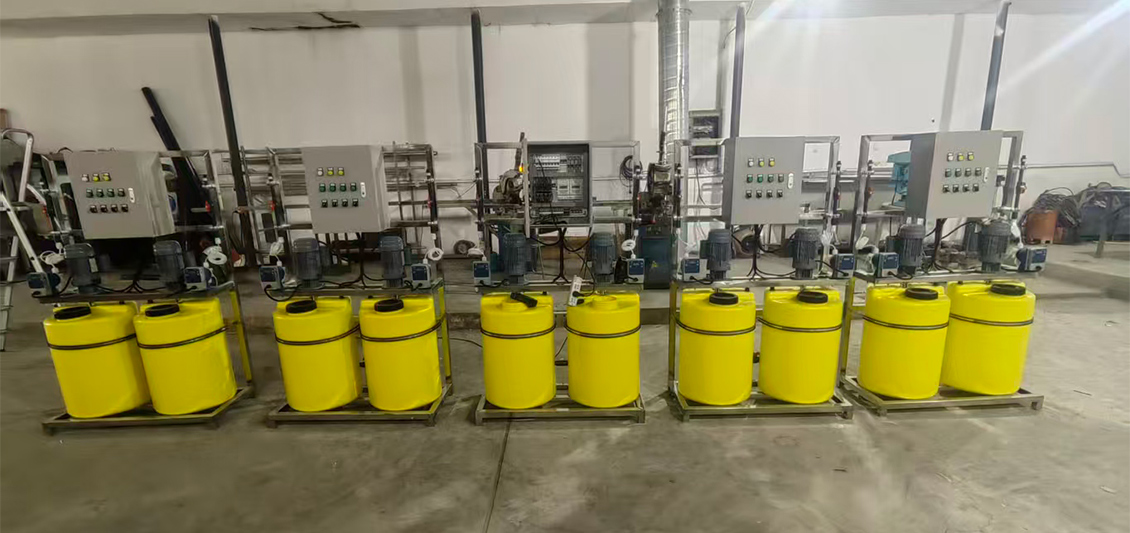

Pure water system dosing equipment

The automatic dosing equipment for pure water systems is specially designed for waterworks and reverse osmosis/ultrafiltration pure water processes. It can automatically add disinfectants, scale inhibitors, reductants, and acid-base neutralizers. Stabilizing the water quality of pure water production, delaying the fouling and scaling of membrane elements, and extending the service life of filter cores and membrane modules are essential supporting equipment for water purification and production processes.

inquiry

Product Details

Working principle

Pure water system dosing equipment

The equipment integrates an intelligent control cabinet, high-precision metering pumps, anti-corrosion medicine tanks and sensor pipelines. Set the dosage parameters of the chemicals in advance, and the equipment will automatically perform quantitative proportioning and dosing. It can adapt the dosage of chemicals according to the changes in the quality of the raw water, is equipped with low liquid level warning and overload protection, and operates fully automatically throughout the process without the need for frequent manual intervention.

Core function

01Fully automatic quantitative dosing, suitable for the continuous water production requirements of pure water systems
02Prevent reverse osmosis / Ultrafiltration membrane scaling and pollution can extend the membrane's service life
03Stabilize and regulate water quality to ensure that the quality of pure water output consistently meets standards
04Automatic warning and shutdown in case of drug shortage or overload ensure the safe and controllable operation of the equipment
05Modular integrated design, simple installation and convenient later maintenance

Adapted medicine&Applicable scenarios

: Adapted medicine Sodium hypochlorite, scale inhibitor, bactericide, reducing agent, hydrochloric acid, sodium hydroxide Applicable scenarios Waterworks, reverse osmosis pure water matching, ultrafiltration water purification process, laboratory pure water preparation

Why choose Yuanlai Water Treatment?

Direct delivery in stock Batch approval availableComplete machines are available for direct delivery in stock, with a full range of specifications. We support bulk wholesale from competitors
All series of accessories Rich in categoriesOne-stop supply of reverse osmosis membranes, metering pumps, controllers and other supporting accessories
Process selection Reasonable combinationWe can provide a complete set of process selection and matching suggestions for pure water systems
OEM Customized on demandSupport OEM assembly and private label customization to meet the needs of engineering contractors and distributors
