Technical indicators and job requirements

Inlet water pressure0.2-0.6Mpa

Operating temperature5-45℃

Raw water hardness3-10mg-N/L

Operation mode: Automatic

Effluent hardness≤0.03mmol/L

RegenerantNaCl

Regeneration method: Downstream flow/"Countercurrent"

Exchanger: Ion exchange resin

Control method: Time/"Traffic"

Working power supply380V/50Hz

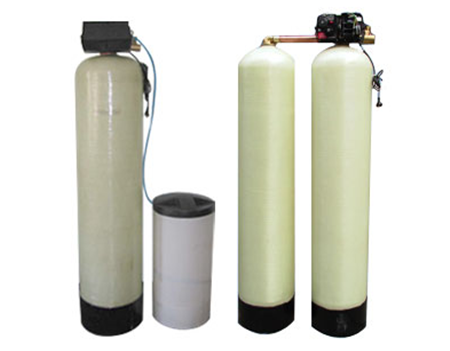

Softening water equipment uses cation resin to soften raw water. The main purpose is to have the cation resin adsorb calcium and magnesium ions (the main components of scale) in the water, reduce the hardness of the raw water, and it can also be intelligently regenerated for recycling.

1Users can choose manual control systems according to their conditions to save costs.

2If the user24For continuous water usage within hours, alternating regeneration can be selected based on the water usage time, with one as a backup and the other in use.

3Users can also, based on the water quality requirements, configure a multi-media filter for the first stage to remove sediment, rust, colloids and suspended solids from the water. The secondary configurable activated carbon filter is used to remove pigments, odors, biochemical organic matter in water, and reduce the residual chlorine value and pollution in water. Three-level configuration of water softening equipment.

4The effluent quality meets the national standard for low-pressure boiler feed water.

5Time control - timing type; Flow control - metering type. In terms of operation, various combination methods such as single tank, double tank and multiple tanks are adopted. When making a selection, users can choose according to their needs. In terms of operation, this product not only has the function of automatic operation but also can be operated manually.
