YL-90FLECKSoftened water

Hardness online monitoring and control system

Department of system fuck as said Ming

Directory

I. Principles of System Measurement and Control

Ii. Equipment Features

Iii. System Technical Parameters

Iv. Communication Settings

V. Parameter Setting Instructions

Vi. Communication Instructions

Vii. Accessories List

I. Principle of system measurement and control

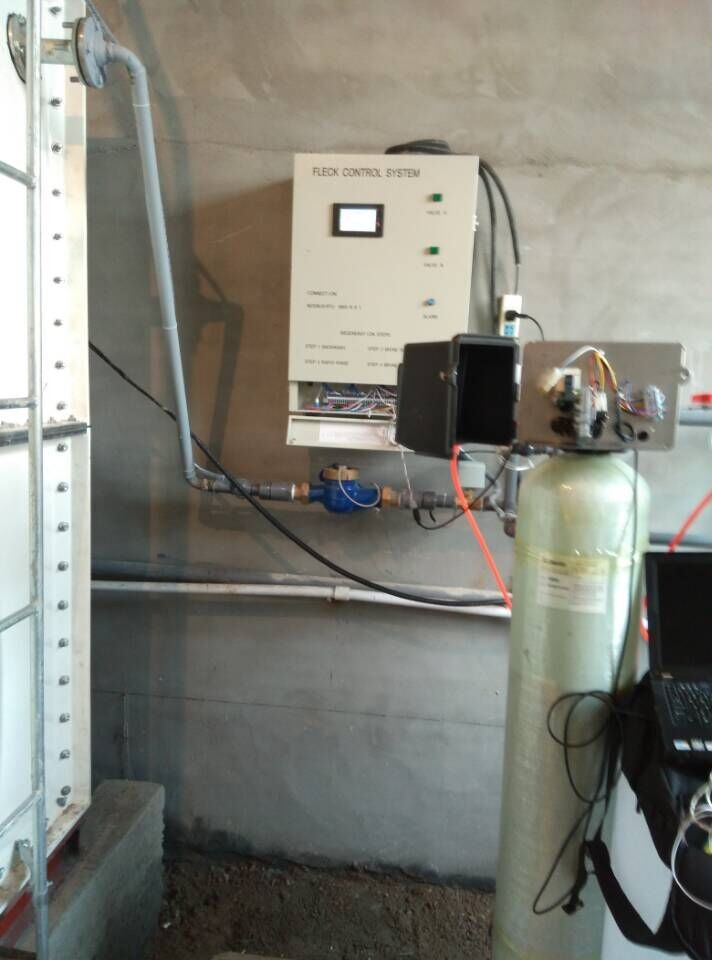

1, YL-90F Online automatic monitoring of effluent hardness

The equipment operates unattended. Faults automatically alarm and upload. Any operation status and control can be displayed and completed in the control room through the system,This system is equipped with reserved ports for connection with the heat network automatic control system, allowing information such as the system's operating status, inlet and outlet water quality, and water tank liquid level to be uploaded to the heat network central control room.

"Realize"24The water hardness of the softened water equipment is automatically monitored online every hour15The hardness of the effluent water is tested once every minute (the test time can be adjusted), the failure points of the resin work are identified, and the resin regeneration program is started immediately, neither ahead of nor behind schedule. This ensures that the working exchange capacity of the resin is maximized while keeping the hardness index at the outlet of the water softening equipment within the calibrated range. Compared with the same model of water softener, it can save energy annually20%-30%Operating costs can be reduced, thereby truly achieving the goal of preventing boiler scaling, maintaining boiler efficiency, and energy conservation and emission reduction.

The hardness monitoring system applies the principle of colorimetric analysis to automatically sample the effluent from the softened water system once at the set time. Each time a certain amount of hardness reaction reagent is automatically injected into the quantitatively sampled water, different hardness sampled water will present different wavelengths. Relying on the principle of photoelectric conversion, the hardness detection is completed. The principle is simple, the technology is reliable and the sensitivity is high.

case

One10Ton per hour water softener

Resin filling volume 300L

Salt consumption for each regeneration 80Kilogram

Regeneration water consumption  (System default value

1Backwash flow rate 49Gallon/Minutes  In total 10Minutes   Total490Gallon

2Slow wash for smoking  25Gallon/Minutes In total 60Minutes   Total1500Gallon

3"Forward washing"       30Gallon/Minutes In total 15Minutes  Total 450Gallon

The water consumption throughout the entire cycle is approximately 2440Gallon, approximately9.2Tons of

It needs to be regenerated once each time80Kilogram of salt9.2Tons of water, regenerated weekly3Next time, a new contract is required every year160Secondly, salt is consumed 25600Kilogram It requires water consumption 1472Tons.

After using this equipment, since it measures hardness by time, regeneration is only carried out when the water quality is substandard. Therefore, the equipment can be extended20%-30%The water output and the consumption of regenerated salt can be reduced by approximately5120Kilogram7680Kilogram The consumption of reclaimed water can be reduced300Tons of450Tons.

It can reduce normal maintenance costs20%-30%,Truly achieve energy conservation and emission reduction.

2,YL-90FPrinciple of hardness monitoring

The hardness monitoring system applies the principle of colorimetric analysis to automatically sample the effluent from the softened water system once at the set time. Each time a certain amount of hardness reaction reagent is automatically injected into the quantitatively sampled water, different hardness sampled water will present different wavelengths. Relying on the principle of photoelectric conversion, the hardness detection is completed. The principle is simple, the technology is reliable and the sensitivity is high.

The monitoring system automatically samples and also uses titration, consuming a trace amount of the solution each time. Search for the critical value of water hardness during regeneration. Other data are irrelevant to the control of regeneration instructions. The hardness index of the regeneration instruction soft water is0.03mmol/L.

The benchmark value for system comparison is0.03mmol/L. Greater than0.03mmol/LThis indicates that the water quality is substandard, less than0.03mmol/LThis is qualified water quality.

Fully automatic water softening equipment is usually unattended. Therefore, to test whether the water softening equipment is effective and whether the water quality meets the national standards and the anti-scaling requirements, an automatic continuous analysis and detection of the hardness of the water output from the water softening equipment is adopted. Based on the hardness of the water output from the water softening equipment, the regeneration program is controlled and initiated.

Ii. Equipment Features

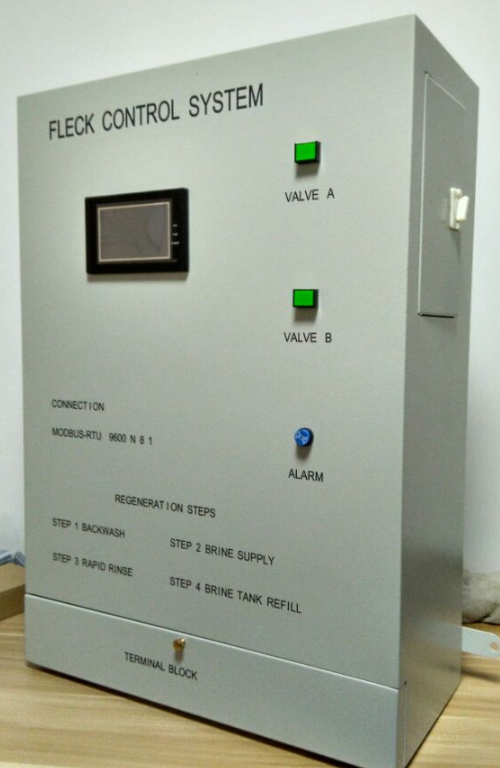

Control system configuration

2.1 The entire process adopts the United States.ARMThe company is controlled by a microcomputer core chip and features a touch screen operation interface (  4.3" 7The inch can be optionally equipped with German Siemens It can display the operating status, including the working status of each valve during system operation, the direction of water flow, the hardness value of the inlet water, the hardness value of the outlet water, and the hardness value of the secondary return water, which are displayed in real time and accurately.

2.2 The regeneration status display shows the working status of each valve at each step of the system regeneration, the direction of water flow, and all on-site operations can be synchronously operated in the main control, achieving seamless connection with the Fulaike water softener, which is reliable.

2.3 The water hardness index shows that the hardness index of the effluent water quality is displayed in real time during the system operation. When the effluent water quality does not meet the standard, regeneration is automatically started. After regeneration is completed, a re-inspection is conducted for confirmation.

2.4 Hardness detection, water quality hardness index display, automatic dosing, automatic flushing, automatic filling, automatic mixing, automatic detection. When the system is in operation, the hardness index of the effluent water quality is displayed in real time, and a dosing shortage alarm is triggered and uploaded. One supply of medicine is sufficient3-6With a usage cycle of one month, all historical data within a heating quarter can be queried and exported.

2.5 The alarm display shows fault alarms in real time, such as detector faults, regeneration operation faults, secondary backwashing faults, etc. It has the function of detecting water leakage in the computer room. When water leakage is detected in the computer room, the power supply will be automatically cut off and the data will be uploaded to the main control,At the same time, start the sewage pump in the computer room to work and reduce equipment loss.

2.6 It has an extension function and can be achieved by upgrading the probe module without adding the main equipmentPH,Real-time monitoring and upload of conductance, residual chlorine, etc.

2.7 The device's operating system supports the function of upgrading the operating system with a USB flash drive.

2.8 Alarm display: It can show fault alarms in real time, such as detector faults, regeneration operation faults, secondary backwashing faults, etc., and historical alarm records can be queried and exported.

2.9 Multi-way valves can be adopted24VAc power supply mode, equipment to be provided by yourselfupsUninterruptible power supplies can meet the requirements in the event of a power outage in the computer room48Self-powered for hours, it ensures continuous supply and detection of softened water, as well as data upload.

2.10 The double-valve and double-tank system can change its operation mode as needed.AProduce water simultaneously BAlternating operation

2.11 Can be collected1The actual liquid level of the road water tank is displayed, and the liquid level of the control soft water tank is shown, Available1The raw water pump start signal function is effective during regeneration and is suitable for low-pressure raw water environments

2.12 Select the regeneration mode as needed AWater quality monitoring mode BTraffic mode

2.13 Terminal supply1Remote regeneration interface, passive open signal, closed10SPost-regeneration

2.14 The water quality monitoring function collects water samples at regular intervals and in fixed quantities based on the set time and flow rate through the voltage comparison method, automatically analyzes them, displays and uploads them

2.15 Collect flow signals, display cumulative flow, remaining flow and instantaneous flow, and upload them through communication, Optional flowmeter APulse signal BAnalog signal CElectronic water meter signal Meet numerous on-site demands.

2.16 Manual regeneration function, regeneration in progress, can be operated step by step

2.17 The control system provides detailed fault alarm functions, including water quality exceeding standards, valve jamming, liquid level exceeding limits, etc

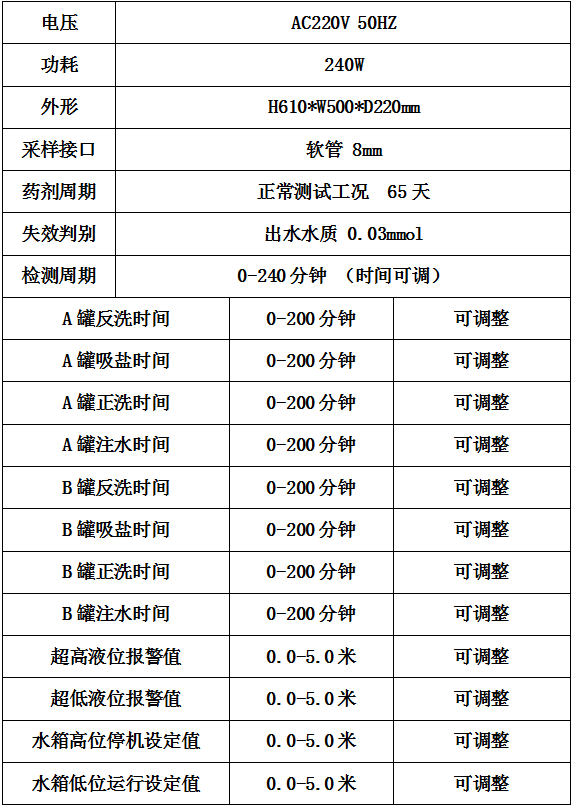

Iii. System Technical Parameters

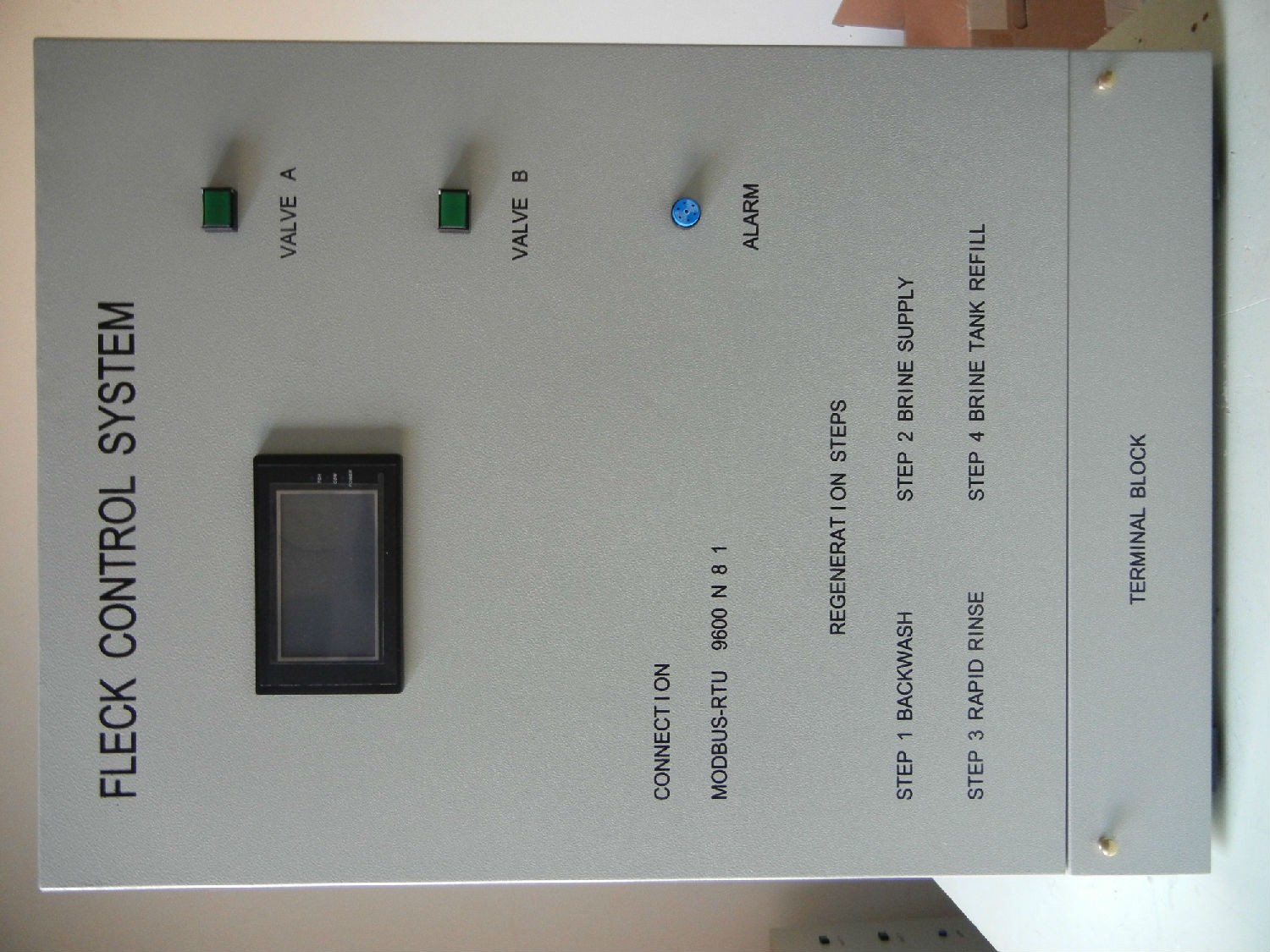

Iv. Communication Settings

1, Baud rate  (4800  9600  19200  38400)

2, Station address  (1---230)

3, Check code  (0=No verification  1=Odd parity  2=Even check

4, Communication protocol   Modbus RTU

5, Communication interface   RS485

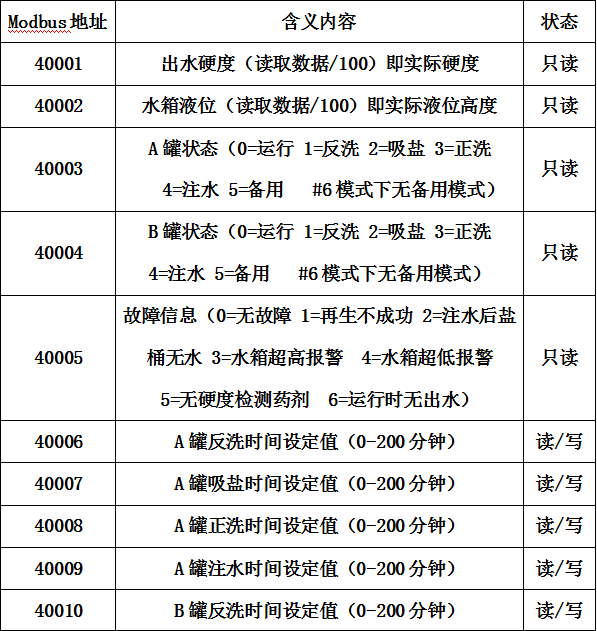

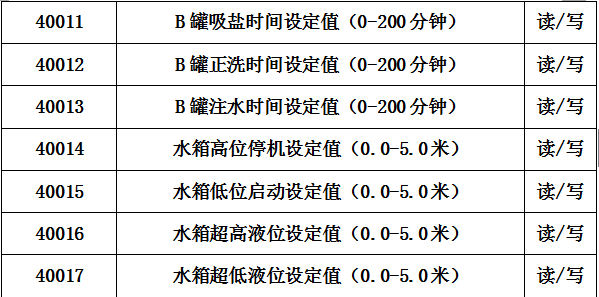

6, Communication address and its meaning

V. Parameter Setting Instructions

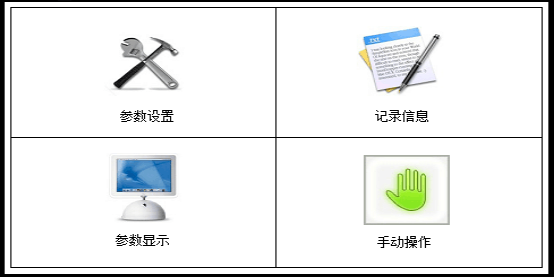

1,Power-on display of the system

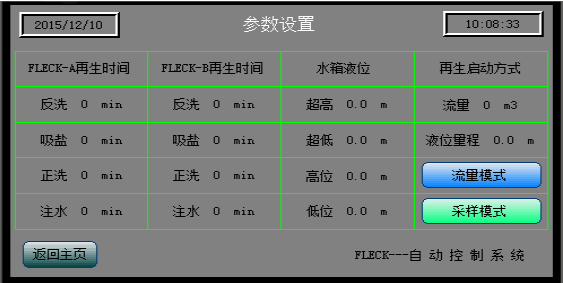

Click on the parameter Settings to pop up the interface

In the parameter setting interface, simply click the screen. For example, if backwashing occurs, a value input dialog window will pop up. Just enter the value.

The traffic mode will flash when clicked, indicating that this mode has been enabled.

The water quality mode flashes when clicked, indicating that this mode has been enabled.

Click "Record Information" to pop up the interface

The water quality analysis results of the system, valve fault information, and liquid level fault light information will be displayed and recorded. The water quality analysis results will be recorded, and after the fault information is released, power will be cut off for cleaning.

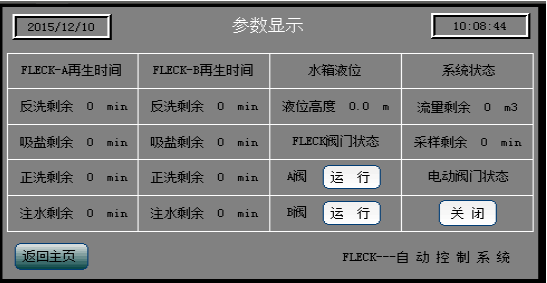

Click on the parameters to display a pop-up interface

"Display2The current status of the softening tank, showing the remaining time during regeneration, the actual liquid level, and the status of the electric valve.

Display the remaining flow of the system.

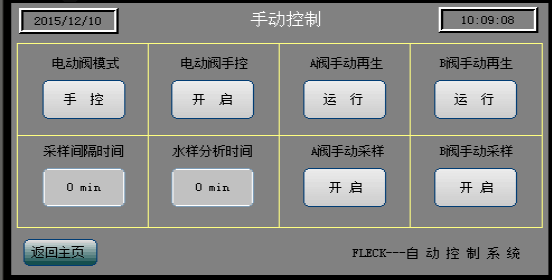

Click "Manual Operation" to pop up the interface

The electric valve can be set to manual control or liquid level control mode. In manual mode, it can be manually opened or closed.

Each softening tank can be manually regenerated. During regeneration, it can be jumped to the next step.

You can sample separately manually. Just click on "Manual Sampling" on the screen.

Set the sampling interval time, that is, how often to sample.

The time for water sample analysis is generally fixed at8Minutes.

Six Communication Instructions

1Port:RS485

2Default address:10

3Communication protocol:Modbus RTU

4Communication format:9600  N  8  1

5Register address

Address meaning, numerical range, remarks

40001Water tank level (floating-point number) 0.00-3.00read

Vii. Accessories List

1. BY-90FHost          1Taiwan

2. Water meter sensor          1only

3. Liquid level sensor          1Set of

4. Detection reagent            1bottle

5. Salt tank liquid level switch        2a

6. Operating Instructions            1Copy of
