Product Name: Wound Filter Element

Product Introduction

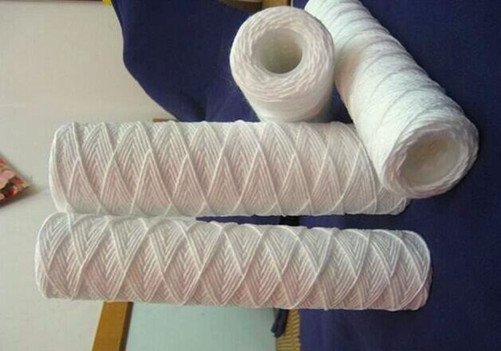

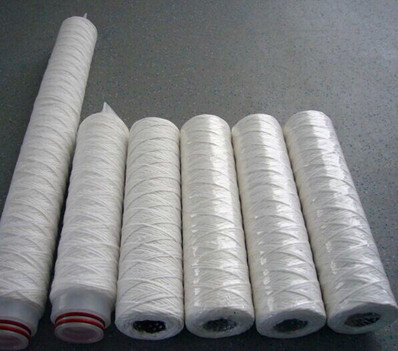

The wound filter element is made of textile fibers(Polypropylene, absorbent cotton, glass fiber, etc)According to various specific processes on the porous skeleton(Plastic, stainless steel, etc)A tubular filter element wound together. Different filtration precisions of filter elements are formed by controlling the winding density of the filter layer and the shape of the filter holes. The wound filter element features a honeycomb structure that is sparse on the outside and dense on the inside, and it has excellent filtration characteristics. It can effectively remove suspended solids, particles, rust, sand and other impurities in liquids.

Main features

①The textile technology adopted(Steam flow spinning)The yarn made is produced by applying the popular winding technology("Small patterns").

②It features a long service life, high precision, less foam and no fiber shedding.

③High filtration accuracy, large flow rate, small pressure difference, high pressure resistance strength, large dirt-holding capacity, odorless, and no secondary pollution.

④It has wide chemical compatibility.

⑤The external dimensions are universal and can replace foreign products.

Technical indicators

Nominal accuracy(μm)Initial accuracy(μm)Large particles(μm)Water flow rate(L/min)

110～203015

320～303820

525～404025

1030～505030

2035～606032

3040～707036

5055～808040

7575～10511045

Note

◆The flux in the table represents water volume

◆The initial precision filtration efficiency is95%

◆The flow rate of the degreased cotton core is lower than the indicated value0.6times

◆The flow rate of the fiberglass core is lower than the indicated value0.5times

◆This flow rate value is based on the pressure difference0.15kgf/cm2"Down"250mmMeasured by a long filter element

Filtration accuracy1μm,5μm,10μm,20μm,30μm,50μm,75μm,100μm

Filter element inner diameter28mm,30mm    Outer diameter of the filter element50～115mm      Filter element length10",20",30",40"

Filter element material: Polypropylene, absorbent cotton   Rod: Polypropylene, stainless steel

Application fields

It can be widely used for liquid filtration in industries such as beverages, pure water, electroplating solutions, printed circuit boards, and coatings. Polypropylene wire wound filter elements can be used for non-organic solvents such as acids, alkalis, and chemical solutions, and the operating temperature≤60℃; The absorbent cotton fiber filter element rod is made of stainless steel and is used for organic solvents, water, oil, alkaline solutions, beverages, medicines, etc., with a suitable operating temperature120℃.
