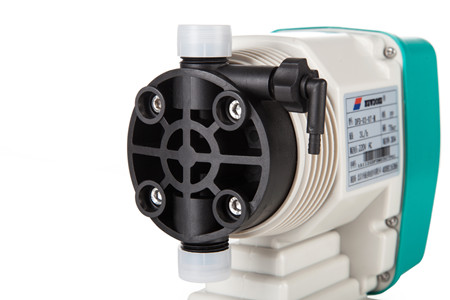

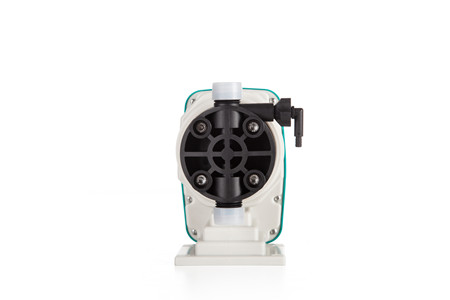

New Deutz metering pump

inquiry

Product Details

DFDSeries of manually adjustable electromagnetic diaphragm metering pumps

Anti-corrosion plastic shell

allPTFEDiaphragm

IP65Protection grade

Multi-material pump headPP,PVC,PTFE,SS316Double ball check valve

Power supply220VAC 50HzManual frequency adjustment0-100%The panel displays the frequency

DCSeries of manually adjustable electromagnetic diaphragm metering pumps

Anti-corrosion plastic shell

allPTFEDiaphragm

IP65Protection grade

Multi-material pump headPP,PVC,PTFE,SS316/Double ball check valve

Power supply220VAC 50HzManual frequency adjustment0-100%The panel displays the current frequencyRS485

DMSeries of manually adjustable electromagnetic diaphragm metering pumps

Anti-corrosion plastic shell

allPTFEDiaphragm

IP65Multi-material pump heads with protection gradesPP,PVC,PTFE,SS316/Double-ball check valve power supply220VAC 50Hz/Manual frequency adjustment0-100%The display frequency of the panel is acceptable0/4-20mA External current signal

The starting point of the panel display can be set arbitrarily and adjusted proportionally in both forward and reverse directions

I.New Deutz selection parameters

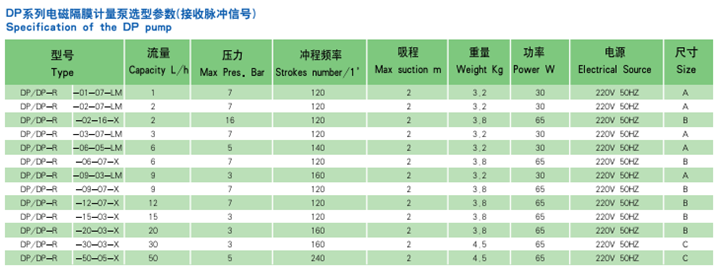

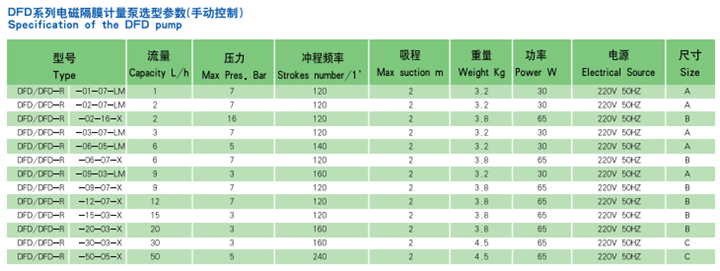

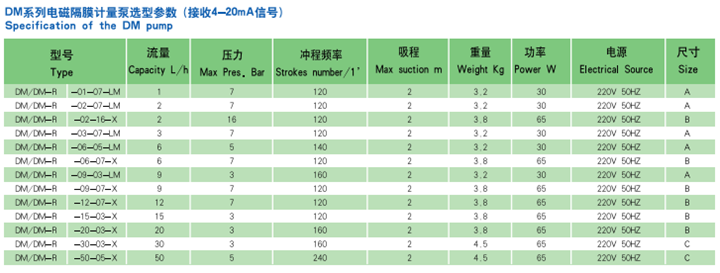

Parameter/

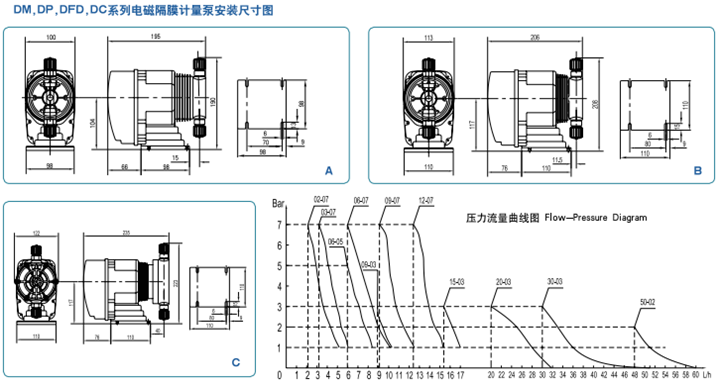

Ii.Installation dimension drawing of the new Deutz

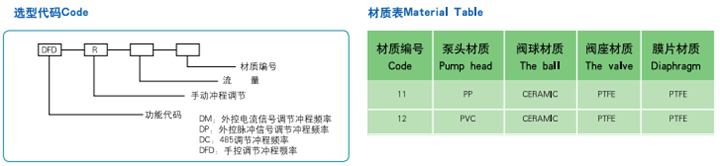

Installation diagram/
