Performance characteristics

    DowFLMTECTMTape windingTW30-4014The materials and components of the reverse osmosis membrane elements for tap water are the same as those of the fiberglass reinforced plastic wound elements, but they are more economical and have a high cost performance. They are used to build systems that require high water purity to economic cost.

Scope of use

Suitable for short shells, each shell contains1~2Commercial systems for mounting membrane elements
Product real photos

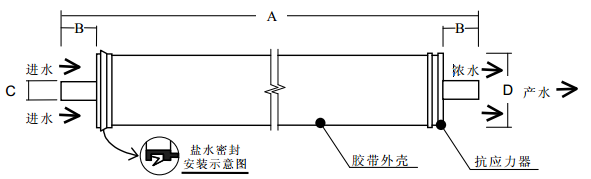

Product specification

1,The water production capacity and desalination rate are based on the following test conditions:2000ppmNaCl,225psi(2.55MPa"25℃,pH=8And the above-mentioned rated application test pressure.

2,The variation range of water production capacity of the component-15%/+25%.

3,TW30-4014andTW30-4021The ejection rate of components will vary slightly depending on the design.

Work limit

aWhenpHThe value exceeds10At that time, the highest temperature for continuous operation is35℃

bIn some cases, the presence of free chlorine and other oxidants can lead to the failure of water production membrane elements. It is recommended to remove the residual free chlorine through pre-treatment before the membrane elements come into contact with these oxidants.
