Performance characteristics

DowFLMTECTMSW30-4040The components have a large water production capacity to meet the needs of seawater desalination for both offshore and onshore installations.

DowFLMTECTMSW30-4040The operating pressure is lower, which can reduce the size and cost of the high-pressure pump and lower the operating and running expenses

The performance has been improvedFLMTECTMThe seawater components, due to the adoption of automatic precision manufacturing technology, have reliable and stable performance.

Product specification

1,The water production capacity and desalination rate are based on the following test conditions:32000ppmNaCl,25℃.

2,The water production capacity of a single component may be+/-20%It varies within the range.

3,The typical recovery rate is for a single component. The recovery rate is based on the flow rate of the product water/The water supply flow rate is obtained.

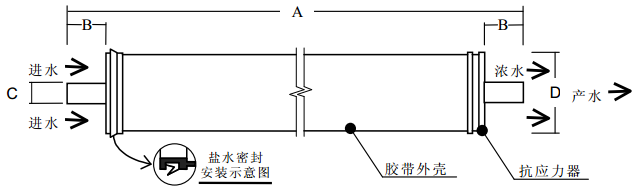

SW30-4040The component can be placed with an inner diameter of101.6Inside a pressure vessel in millimeters.

Work limit

aWhenpHThe value exceeds10At that time, the highest temperature for continuous operation is35℃

bIn some cases, the presence of free chlorine and other oxidants can lead to the failure of water production membrane elements. It is recommended to remove the residual free chlorine through pre-treatment before the membrane elements come into contact with these oxidants.
