Performance characteristics

DowFLMTECTMBrackish water membrane elements provide reliable, consistent, stable and reliable system performance for brackish water light industrial water treatment systems.BW30-2540It is specially designed for summer gulls with high water production0.2m3/h(1gpmSmall systems that also require extremely high strength of component housings. FRP wound membrane elements are particularly suitable for operating pressure drops when more than three membrane elements are connected in series in each pressure vessel.

Product real photos

Product specification

1,The water production capacity and desalination rate are based on the following test conditions:2000ppmNaCl,25℃Recovery rate15%.

2,The water production capacity of a single component may be+/-20%It varies within the range

3,LE-4040It was once namedBW30LE-4040.

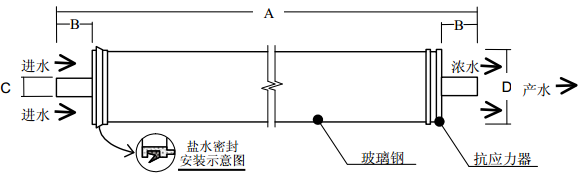

BW30-2540The component is equipped with the nominal inner diameter2.5Pressure capacityBW30LE-4040andBW30-4040The component is equipped with the nominal inner diameter4.0A pressure vessel of one inch.

Work limit

aWhenpHThe value exceeds10At that time, the highest temperature for continuous operation is35℃

bIn some cases, the presence of free chlorine and other oxidants can lead to the failure of water production membrane elements. It is recommended to remove the residual free chlorine through pre-treatment before the membrane elements come into contact with these oxidants.
