NameMulti-functional control valve for continuous water supply (one valve for two tanks)

Model:F73A

 Technical parameters:

●Controller mode----------------------------------------------Flow type

●Power adapter----------------------------------------------100-240V/50-60Hz

●Applicable water pressure----------------------------------------------0.18-0.6MPa

●Applicable water temperature------------------------------------------------5--45℃

●Large water production capacity----------------------------------------------3.5 m3/h

●Adapt to the diameter of the softening tank(in)------------------------------------6-16″

●Inlet and outlet------------------------------------------------1″M(External teeth

●Drain outlet--------------------------------------------------1/2″M(External teeth

●Salt suction port--------------------------------------------------3/8″M(External teeth

●tube--------------------------------------------------1.05 ″OD (26.7mm)

●Base(Connection port with the can)----------------------------------------2-1/2″8NPSM

Valve body material"EnhancedABS

Product features:

■The end face sealing plate does not leak when opening and closing, and its mechanical performance is reliable.

■It has a key lock function: The keyboard will automatically lock after more than one minute. If you operate again, you need to unlock it again to prevent accidental operation.

■LEDDynamic color bar display: A flashing color bar indicates that it is in operation, otherwise it indicates that it is in regeneration.

■Long-term power outage warning: If the power outage lasts for more than three days and the clock keeps flashing, it indicates that the current time needs to be reset. The reset time remains unchanged.

■With signal output ports: The normally open, normally closed and common three port leads in the electronic control mainboard are externally connected to solenoid valves or booster pumps.

■A valve has a flow delay typeA-01Or traffic immediate-typeA-02There are two traffic modes, which can be changed through the setting of parameters within the program.

■The large interval regeneration days can be set: It indicates that no matter how much flow is set or operated, exceeding the large regeneration days0-40Regeneration will be initiated before the flow rate reaches the set value.

■The backwash interval can be set: that is, run multiple times and backwash once. The setting is determined by the hardness of the local water quality.

■Flow triggers regeneration, single-valve double-tank type continuous water supply

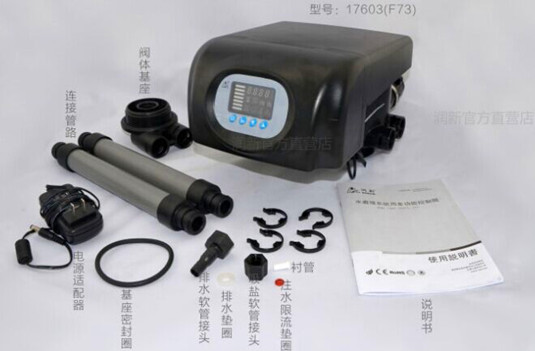

Product accessories

Number of names

2-1/2″Base sealing ring￠73×￠5.3)2a1/2″Drain hose fitting1a

Drainage flow-limiting gasket1a3/8″Salt-absorbing hose fitting1a

Water injection flow-limiting gasket (red)1A liner1a

Power adapter (European standard, American standard or British standard)1a
