Technical parameters

●Applicable pressure------------------------------------------------0.15-0.6MPa

●Applicable water temperature------------------------------------------------5-45℃

●Turbidity of the influent water quality--------------------------------------------Downstream regeneration＜5FTU; Countercurrent regeneration＜2FTU

●Into the/Outlet-----------------------------------------------2″M

●Drain outlet--------------------------------------------------1″M

●Salt suction port--------------------------------------------------1/2″M

●Base----------------------------------------------------4″-8UN

●tube--------------------------------------------------1-1/2″D-GB

●Large water production capacity----------------------------------------------10 m3/h

Functional features

■Simple structure and reliable sealing

■The single-tank control valve does not discharge water during regeneration

■The installation methods are diverse. The valve body can be installed on the top or on the side

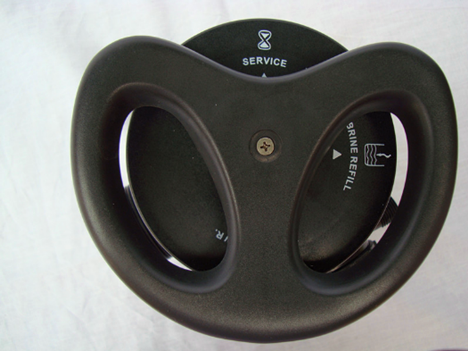

■There are two types of handles to choose from: metal and plastic

Application scope

Household softening system

Ion exchange equipment

Boiler feed water softening system

Softening systems in reverse osmosis pretreatment systems, etc
