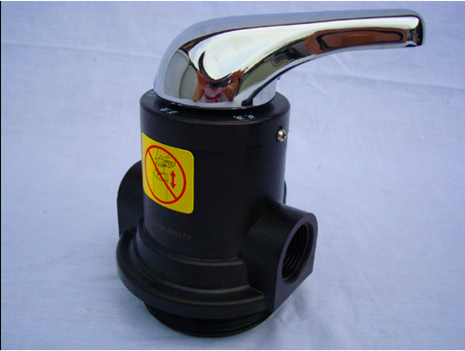

name Called: Manual multi-way valve (manual filter valve)

type No.TMF56E

Product patentZL02220153.X ZL02257746.7

Technical parameters:

Control mode -- -- -- -- -- -- -- -- -- ----- manual

Applicable pressure -- -- -- -- -- -- -- -- -- -----0.1-0.6MPa

Applicable water temperature -- -- -- -- -- -- -- -- -- -----5-45℃

Large water production capacity -- -- -- -- -- -- -- -- -- ----2 m3/h

Adapt to the diameter of the filter tank(in)-- -- -- -- -- -- -- -- -6-10″

Inlet and outlet -- -- -- -- -- -- -- -- -- -----1/2or3/4″F(Internal teeth

Drain outlet -- -- -- -- -- -- -- -- -- ------1/2or3/4″F(Internal teeth

Tube -- -- -- -- -- -- -- -- -- ------1.05 ″OD

Base(Connection port with the can)-- -- -- -- -- -- -- -- -- -2-1/2″8NPSM

Valve body material: ReinforcedABSorPP0Two options are available for customers to choose from

Product features:

1, It adopts high flatness, wear-resistant and corrosion-resistant end face sealing plates for opening and closing, featuring excellent sealing performance and a long service life.

2, Reasonable flow channel design: Operation-"Right wash-Backwash - forward wash - Run.

3, The opening and closing torque is small and the operation feel is good.

4, It can operate under pressure without leakage.

Product accessories

name According to Quantity

2-1/2″Base sealing ring￠73×￠5.3) 1a

3/4″or1/2″Flat pad￠24×￠18×￠3) 3a
