Product features

Overpressure automatic protection, no valve required

The flow adjustment range is wide and can reach up to1000:1

It is convenient for external automatic control and can respond directly to the outside4~20mASignal machine pulse control signal

The moving parts are simple, require no lubrication, have no transmission and deceleration components, and are highly reliable

Modular structure, components are easy to replace without welding

Fully sealed housingIP65Protection grade, glass fiber reinforcedPPMaterial

Low power consumption, adaptable25~60Hz

Control mode

Multi-signal control: Built-in programmable microprocessor, LCD display, acceptable4~20mAThe stroke frequency is adjusted by signals and pulse signals of various frequencies, and the stroke degree is manually set.

Pulse signal control: Acceptance0~100time/The stroke frequency and stroke length of the pulse signal regulator are manually set. "CooperateMPSeries converters are acceptable4~20mASignals or pulse signals of other frequencies.

The stroke length is manually adjustable, while the stroke frequency is fixed

Main applications

All kinds of circulating water treatment applications, reverse osmosis, swimming pool water treatment, wastewater treatment

Power supply voltage

Single-phase220V; Weight3.5Kg

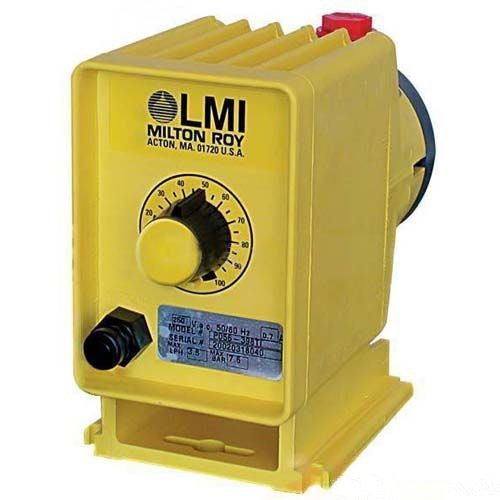

Product real photos

Product performance

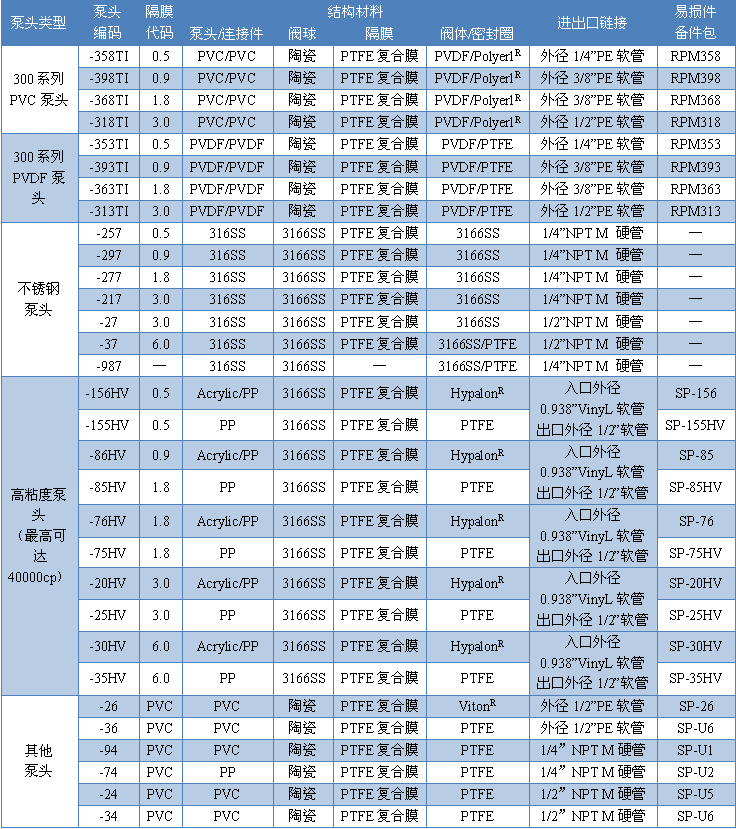

Product material
