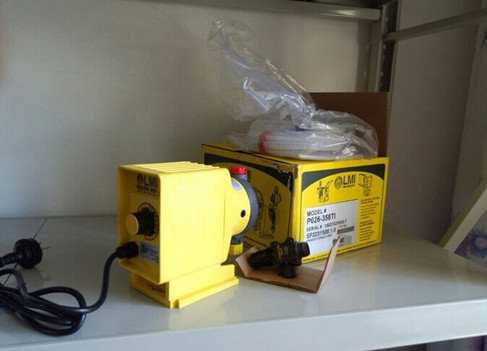

Milton LoLMIElectromagnetic diaphragm metering pump

LMIThe electromagnetic metering pumps are sharedP, A, B, C, E, H, J5Such as7A series. Users can adjust according to flow rate, pressure, explosion-proof,

For requirements such as power supply and automatic control, the corresponding series of metering pumps should be selected.

Control mode

9-Programmable high-precision microprocessor control, with LCD display and four touch film keys Receive external4~20mASignal

Programmable or pulse signal (passive reed switch, transistor or optocoupler contact) control. Multiplication can be performed on the input pulses

Or division operations and batch accumulation. Manual/The automatic mode is optional. For use in conjunctionDigi-PulseThe flow monitor is convective

Alarm monitoring is carried out.

7-Receive external pulse signals (passive reed switches, transistors or optocoupler contacts) Control. Manual/The automatic mode is optional. with

MPThe series control module is acceptable for use4~20mAControl the signal or multiply the received pulse signal/Division operation.

1-Manually adjust the stroke length and stroke frequency (manual double adjustment). Adjustable frequency rangeP12□,P13□ 0~60spm

The rest are all 0~100spm 0-Fix the stroke frequency and manually adjust the stroke length.

, point

•Overpressure automatic protection, no valve required.

•The flow adjustment range is wide and can reach up to1000:1

•It is convenient for external automatic control and can respond directly to the outside4~20mASignals and Pulses Control signal.

•The moving parts are simple.Simple is Best(Principle), no lubrication required, no rotation

•And transmission components, high reliability.

•Modular structure, components are easy to replace without welding.

•Fully sealed housingIP65Protection grade, glass fiber reinforcedPPMaterial.

•Low power consumption, adaptable25~66HZPower supply.

•A direct power supply type is available as an option (battery-powered).

Capacity series For details, please refer to the selection tables of each series of pumps

Power plug

1-----120VAC

2-----240VAC, USA Plug

3-----220VAC, DINPlug

5-----240VAC UK Plug

6-----240VAC Aust./NZPlug

7-----220VAC SwissPlug

Note①. Select the power supply code on the Chinese mainland6, Compatible with national standard sockets.

②. EThis series does not come with power cords or plugs when leaving the factory. The power code can only be selected1and2.

Pump head codingy-For details, please refer to the selection table.

Control attachment--－Pulse transmitter26006

It is used for the addition of various chemicals or to expand the capacity of electromagnetic metering pumps and send control signals to multiple unitsLMIElectromagnetic metering pump.

It can be controlled simultaneously up to10Table pump. When the stroke frequency of the main pump is controlled, the other subordinate pumps will remain synchronously controlled.

Therefore, the addition can be controlled simultaneously up to10A kind of chemical. And the proportion values between each pump can be preset.

●Cable3m ●Switching capacity0.1A

●Large inductive load5W, 0.1A/230VAC, 0.2A/28VDC

●Large resistance load8W, 0.5A/115VACorDC

Control AttachmentMPSeries electromagnetic metering pump control module

Function ElectedP7, A7, B7, C7The series, and the external control input signal sources are as follows①,②,③When it comes to types

OptionalMPSeries control modules. for Electricity15VDC(Can be provided by the electromagnetic metering pump Protection gradeIP65 Input

Impedance100OhmMP-100)

Input signal source

①4-20mADirect current signal

②High-frequency pulse (flowmeter pulse output)＞100 time/ Minutes

③Low-frequency pulse (flowmeter pulse output)＜100 time/ Minutes

Digi-pluseTMFlow monitor

It is used to monitor the pulsating flow of electromagnetic metering pumps for very low or no flow

The situation can send an electrical signal and be connected to a remote counter or other receiving device.

FM-300 : 0.5~16mL/Stroke, adjustable Qmax=95L/h

FM-200 : 0.05~5.0mL/Stroke, adjustable Qmax=30L/h

Contact capacity36VAC/DC,100mA

Wall installation bracket for metering pump and flushing mask

Mask: Transparent plastic, usedLMI A, B, CWhen flushing the series of electromagnetic metering pumps with water, prevent water from splashing into the pump.

Bracket: Applicable toLMIThe wall-mounted installation of each series of electromagnetic metering pumps is lightweight and convenient.

material QualityPE

Stroke frequencymax 100spm

pulse Kuanmin 15ms

Work pressuremax 1.0Mpa

material QualityUHMW PE
