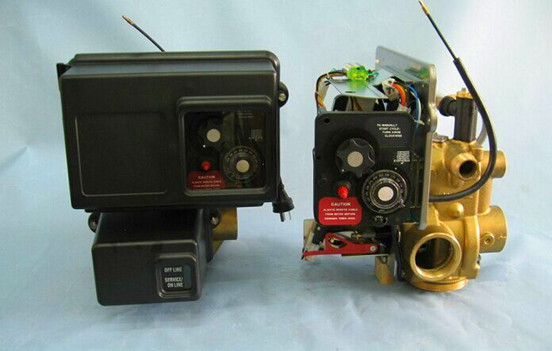

Fleck2900Technical parameters of time-type and flow-type control valves:

Control method: TimeT"TrafficMElectronic controlNT)

Application: SofteningS), filterF)

Model2900ST,2900SM,2900NT, 2900FT

Multi-valve system: System6(Dual valves working simultaneously,  System7(Double valves, one in use and one on standbyNTSystem6, 7

Inlet and outlet pipe diameters DN50

Single valve large water output24.0M3/Hr

Fully automatic water softener (Fulaike2900Introduction to Time-type and Flow-type Control valves:

Our company is introducing the United States Fleck Based on the new type of program controller, combined with the characteristics of water quality conditions and the actual operation experience of the equipment, an energy-saving fully automatic water softening equipment suitable for the usage conditions has been developed. The control device of the fully automatic water softener is imported from the original factory in the United States. The tank body is made of various materials: fiberglass reinforced plastic, carbon steel lined with plastic, and stainless steel, and can be flexibly designed according to the needs of users. The resin is in good use.001×7Strong acid type sodium ion exchange resin The salt dissolving tank adoptsPEMaterial. It is widely applied in steam boilers, hot water boilers, heat exchange devices, air conditioning systems and good domestic water, etc.

The hardness of water is mainly composed of calcium and magnesium ions. When the raw water containing hardness ions passes through the resin layer in the water softener, the calcium and magnesium ions in the water are exchanged and adsorbed by the resin, while sodium ions are released by the same substances. The water flowing out of the water softener is softened water with hardness ions removed. When the resin has absorbed a certain amount of calcium and magnesium ions, it undergoes regeneration. The regeneration process involves using the salt in the salt tank to flush the resin layer, displacing the hardness ions on the resin and discharging them out of the tank with the regeneration waste liquid. Thus, the resin regains its ability to exchange soft water.

Equipment features (Fleck2900Time-type and flow-type control valves:It features a high degree of automation, large switching capacity, compact structure, small floor space, low energy consumption, reliable and stable operation, labor saving, and no need for daily maintenance.

Control valve model (Fleck2900Time-type and flow-type control valves:Time control and flow control type.

Time control: It is to set the regeneration cycle based on the hourly output and the periodic water production volume, and is generally suitable for occasions where the water consumption is relatively stable.

Flow control: It initiates the regeneration program based on the periodic water production volume. During the operation of the equipment, a dedicated flowmeter is used to calculate the total water production volume. When the total water production volume reaches the set periodic water production volume, the controller starts the regeneration program for automatic regeneration. The regeneration of the equipment is independent of the operating time and is generally suitable for occasions with unstable water consumption and continuous water use.
