FRP water treatment tank with discharge port

FRP water treatment tank with discharge port

Product Classification: Series of FRP tanks with discharge ports. FRP tanks with discharge ports offer more convenient packing discharge and are widely used in commercial or industrial water treatment due to their corrosion resistance, high strength, and light weight. FRP resin tanks come in various sizes and openings to meet different water treatment needs of customers. All fiberglass reinforced plastic water treatment containers are made by an integral seamless forming process. The open thread is made of PP glass fiber reinforced material that can withstand higher strength, temperature and pressure. The wall thickness of the HDPE inner liner varies from 3.0 to 8.0mm depending on the diameter of the bucket body. All water-related components are made of high-quality materials.
inquiry
  • Product Details
Product Classification Series of tanks with discharge ports
One-piece moldingPEThe inner tank is equipped with a discharge port
●Up and down6Inch aluminum alloy flange interface: Aluminum alloy material, standard6Inch interface
●Composite material winding layer: Three-dimensional winding, tank working pressure1.05Mpa
● PEInner liner belt4Inch aluminum alloy flange discharge port: ThroughFDACertified importPE,The one-piece molding ensures that it is not prone to leakage even if it is bumped

  The FRP tank with a discharge port makes the discharge of packing more convenient. Due to its corrosion resistance, high strength and light weight, it is widely used in commercial or industrial water treatment. FRP resin tanks come in various sizes and openings to meet different water treatment needs of customers.

  All fiberglass reinforced plastic water treatment containers are made by an integral seamless forming process. The open thread is made of materials that can withstand higher strength, temperature and pressurePPIt is made of glass fiber reinforced material. Depending on the different diameters of the bucket body,HDPEThe thickness of the inner tank wall ranges from3.0-8.0 mmDifferent. All water-related components are made of high-quality materials.


  • Compared with the ordinaryPEThe inner tank body makes it more convenient to unload the packing.

  • Compared with the hand lay-up discharge port tank, it has more stable quality and better hygiene conditions.

  • The product specifications are complete and the height is highfrom70"-110"The diameter ranges from42"-72",And it is capable of customizing FRP resin tanks of different specifications according to customer requirements.

  • The weight of the FRP tank is only that of the steel tank1/3.

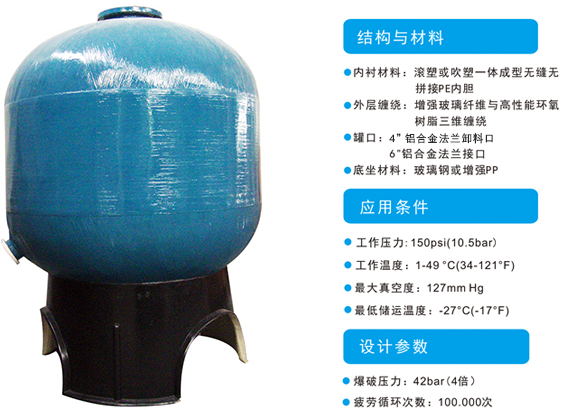

Water treatment tank002.png

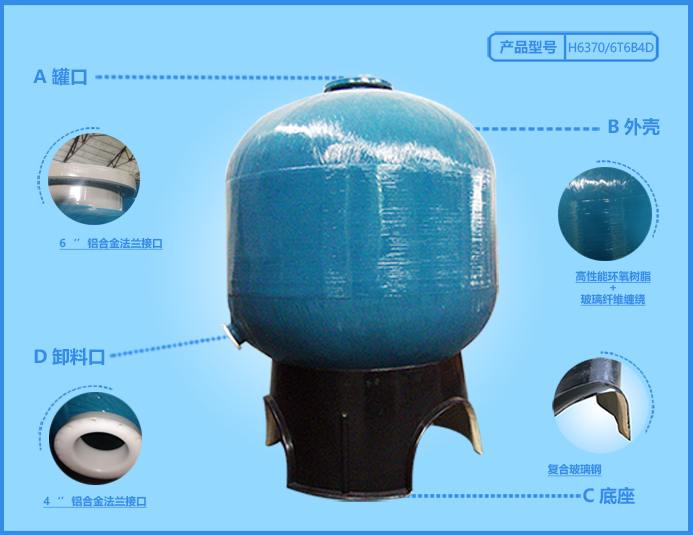

Water treatment tank with discharge port.png

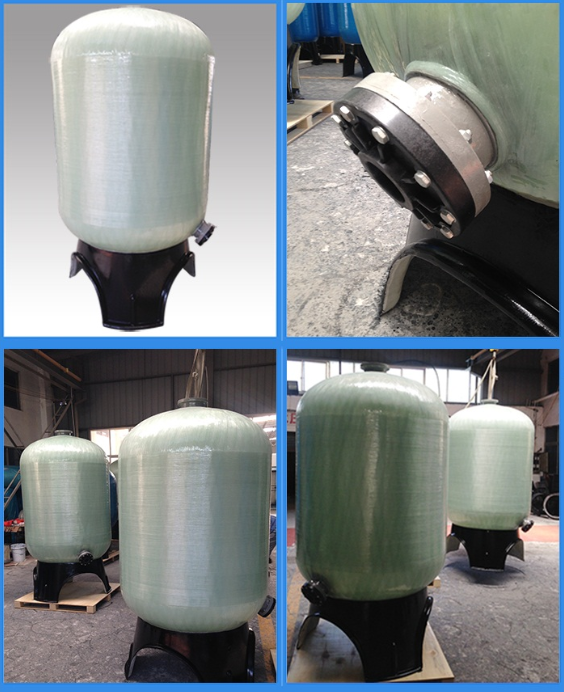

Resin tank picture.png


Production process
