Scope of implementation:

1.    Water output10T/H

2.    Water supply: The water supply pipes are buried in the water treatment equipment1.5The boundary is a meter.

3.    Power supply: According to the capacity proposed by us, the user will supply power to our power control box.

4.    The consumables used in the debugging process shall be provided by the user.

5.    Wastewater: Discharged outside the equipment1.5meter

Equipment process principle:

1. Quartz sand:

Remove some of the larger solid particles or impurities that are prone to sedimentation from the water. The fine particle impurities in the water are intercepted, thereby further clarifying and purifying the water and reducing its turbidity to less than5mg/LIt can remove a large amount of organic matter, viruses and other substances in water as the turbidity decreases.

2. Activated carbon:

Activated carbon is widely used in domestic water supply as well as in industrial, chemical, power and other industrial and domestic water applications. Due to the large specific surface area of activated carbon, its surface is covered with an average diameter of20~30"EADue to its micropores, activated carbon has a very high adsorption capacity. In addition, the surface of activated carbon contains a large number of functional groups such as hydroxyl and carboxyl groups, which can chemically adsorb various organic substances with different properties, as well as exert electrostatic attraction.

Activated carbon adsorption takes advantage of the fact that the molecules on the surface of activated carbon have residual surface energy due to uneven force. When substances collide with the surface of a solid, they are attracted and stay on the surface of activated carbon, thereby achieving decolorization, deodorization, removal of heavy metals, various dissolved organic substances, radioactive elements, etc. Remove harmful substances from water. Water-purifying activated carbon filter material, iodine value is1200The above has undergone acid washing treatment, and the particle diameter10-24"Eye. It can effectively adsorb residual chlorine in water.

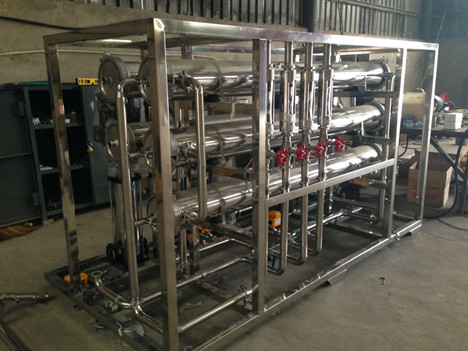

3.ROReverse osmosis device:

Reverse osmosis technology is usually used for the desalination of seawater and brackish water. Softening treatment of water Lime treatment: Calcium and magnesium ion treatment: Wastewater treatment, as well as in industries such as electronics, electroplating, and medicine, purification, concentration, and separation of direct drinking water, etc. In addition, reverse osmosis technology has also achieved good results when applied to pre-desalination treatment. Therefore, it saves costs and is also beneficial to environmental protection.

The system adopts the low-pressure polyamide composite membrane produced by Hydranautics of the United States as the main component, and the desalination rate is99%The above effectively removes suspended solids, organic colloidal substances, harmful substances, viruses, pyrogens and other impurities in water, making the effluent quality meet the national standards.

4. Security filter:

Security filtration adoptsPPCotton melt-blown filter element filtration.PPCotton can retain smaller suspended solids, colloids, pathogens and other substances, ensuring subsequent useROThe normal operation of the system. Ensure the supply of water quality and hygiene even when the previous processes fail.
