Water treatment for humidifier spray equipment (preventing nozzle scaling, clogging and formation)

The nozzles of humidifiers are prone to clogging. Many factories have to replace or repair them every week because the clogging of the nozzles is gradual. Beijing Yuanlai Water Treatment Equipment Co., LTD., based on over ten years of water treatment experience and the diverse needs of customers, has launched a company0.5Tons of----120On a tonnage basis. in2008In that year, dedicated fully automatic water treatment equipment was developed for humidifiers and steam generators to prevent nozzles from scaling and clogging. It prevents occurrence and is equipped with dedicated detection reagents. It is inexpensive, convenient and practical.

Beijing Yuanlai is a company that operates pure water equipment, high-purity water, deionized water equipment, fully automatic water softening equipment, boiler water softeners, sodium ion exchangers, deaerators, bypass water processors, electronic water treatment equipment, fully automatic dosing devices, silicon phosphorus crystal dosing devices, air conditioning circulating water treatment equipment, heat exchange station water treatment equipment, and Fleck. Wholesale of products such as Atuzu, Runxin control valve controllers, FRP tanks and barrels, resin barrels, salt tanks, humidifier generators, water treatment equipment, and water distributors in stock.

The products of Beijing Yuanlai Water Treatment Equipment Co., Ltd. enjoy a high reputation among consumers. The company has established long-term and stable cooperative relationships with many retailers and agents. Yuanlai Water Treatment selects the world's leading water treatment equipment (main partner: the United States)GEGeneralautotrolArtuzupentairPentalfulaccodelineMembrane housings, Visebo, Purite, Dow membranes, Hydranautics membranes, Grundfos pumps from Denmark, filters from Israel, Pasifada dosing systems from the United States... ,

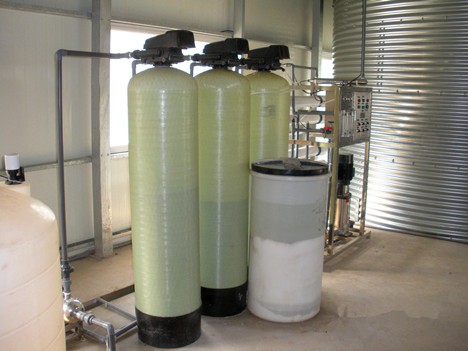

The boiler water treatment equipment is equipped with a fully automatic soft water controller (from the United StatesFLECKFleckAUTOTROLIt is composed of Atuzu controller, Runxin mechanical control valve, softening resin tank (generally fiberglass reinforced plastic resin tank, stainless steel resin tank or carbon steel lined with rubber), strong acid type sodium ion cation resin, regeneration salt tank, flow and pressure pipe fittings, etc. At the same time, our company provides technical support for the maintenance of boiler water treatment equipment and supplies related accessories for boiler water treatment equipment. Boiler water treatment equipment features a compact size, simple operation, and automatic operation without the need for manual intervention. It has been widely applied in industrial boilers, domestic hot water boilers and other scenarios.

I. Working Steps of Boiler Water Treatment Equipment:

"Run(Sometimes it is called water production)Backwashing, salt absorption(Regeneration)Slow rinse(Replacement)Five processes of quick rinse. The operation procedures of different boiler water treatment equipment are very similar. However, due to the differences in actual processes or control requirements, there may be some additional procedures. Any water softener based on sodium ion exchange is developed on the basis of these five processes.

Ii. Performance Characteristics of Boiler Water Treatment Equipment

Boiler water treatment equipment can be classified into various series such as time-controlled type, flow-controlled type, and continuous soft water supply system type. There are multiple combination forms including single-valve single-tank, single-valve double-tank, double-valve double-tank parallel, and large multi-valve multi-tank series, which can meet the different water usage needs of users. The flow type is fully automatic regeneration with the set flow control. The flow rate can be set according to the different resin filling volume and water quality conditions. The time type is based on the resin filling volume and water quality conditions, combined with the specific hourly demand to convert the time, and is controlled by the set time for fully automatic regeneration.7Heaven or12The regeneration cycle can be set as needed within a day.24The regeneration time can be chosen at will within hours. The fully automatic soft water device control system technology is formed, easy to operate, reliable in operation, and microcomputer-controlled, making its operation more convenient and management easier.

1.It features a high degree of automation and stable operating conditions.

2.The program control device operates accurately and reliably, replacing manual operation and achieving automatic conversion of all links in water treatment.

3.Low energy consumption and economical operating costs. Due to the overall reasonable design of the softener, the exchange capacity of the resin is fully exerted. The device adopts jet salt suction instead of a salt pump, reducing energy consumption.

4.The device has a compact structure, occupies a small area, saves infrastructure investment, and is easy to install, debug and use. The performance of the operating components is stable.

Iii. Technical Indicators of Boiler Water Treatment Equipment

Power supply220V/50Hz

Power10-35W

Water production capacity (single unit)0-50m3/h

Work pressure0.2-0.5MPa

Operating temperature2-50℃

Inlet water hardness≤8mmol/L

Effluent hardness≤0.03mmol/L

Operation procedure: Automatic program control

Valve body material: High-strength plastic or lead-free copper alloy

Tank material: Wound fiberglass reinforced plastic or carbon steel with internal anti-corrosion and stainless steel

Control mode: Time type, flow type or powerless hydraulic drive type

Regeneration method: Downstream flow/Countercurrent regeneration

Interface form: Pipe thread/ABS"Flange

Ion resin: Strongly acidic cation exchange resin

Reclaimed water consumption≤2%×Water production volume

Salt consumption≤120g/l

The fully automatic water softener uses a time-synchronous motor to control all working procedures within seven days or12Set the restoration cycle as needed within the day range24The restoration time can be chosen at will within hours, and the restoration process can be adjusted.JSYThe fully automatic water softener adopts flow control for all working procedures, and the equipment can supply water continuously (or intermittently). Regeneration - The regeneration device is automatically started by the flow controller, and the flow rate can be set according to the regeneration program as needed. BecauseJSYThe control system of the series of fully automatic soft water equipment is technologically mature, easy to operate and reliable in operation, which enables it to hold a leading position in the field of soft water treatment.

The series of fully automatic water softeners, with their exquisite craftsmanship and excellent water quality, are widely used in industrial boilers, heat exchangers, hotels and restaurants, industry, health care, laundry and dyeing, and other industries. This product features high automation, large exchange capacity, compact structure, low energy consumption, labor saving, and no need for daily maintenance, which will bring customers the best economic operation conditions.

Iv. System Composition

Fully automatic control valve＋FRP resin tank＋Exchange resin＋PESalt bucket

The application of water softeners

Water softeners are generally installed before reverse osmosis devices to reduce or remove waterCa2+,Mg2+The effect of ions prolongs the time for inorganic salt scaling in reverse osmosis systems and protects the reverse osmosis membrane system. It is applied in boiler water softening, chemical water, hotels, laundries, domestic water, textile industry, and pre-treatment for reverse osmosis, etc
