I. Overview

Stainless steel membrane housing, also known as membrane pressure vessels, is a supporting product for reverse osmosis, sodium filtration, ultrafiltration and other devices. The shell is made of304Made of stainless steel tubes or wire-wound fiberglass reinforced plastic, the membrane housing is polished both inside and out.

Ii. Main Technical Features

●Pressure resistance2.0～2.5MPa

●Water inlet methods: Water inlet from both ends and from both sides

●Structure: Standard spare parts, easy and quick disassembly

●Sealing performance: Passed pressure resistance test

●The organizational structures at both ends: clamp type, card type, and internal spring type.

1.It mainly depends on the designer's requirements. The arrangement of the membrane and the requirements for the sections are different. According to the different angles of the inlet and outlet, it can be classified as:0Degree90Degree, and180There are three types of pressure resistance. In terms of pressure resistance theory alone, side-inlet water is better, but it increases the probability of water leakage in pressure vessels.

2.8The ratio of the flow rate and pressure of the membrane to water4"ROThe membrane is much larger. If two openings are made at the end of the membrane housing, it will reduce the pressure resistance of the end face and also add a lot of trouble in installation

3. The main issue is still the flow rate of the concentrated water, as the design for a large water recovery rate of a single membrane element is16%In order to improve the utilization rate of water, multiple membranes are connected in series to complete the task4"Inch"RO The pressure drop of the membrane is higher than8The pressure drop of the inch membrane is much larger, so the number of series connections cannot be too many. The specific number of series connections still depends on the water quality conditions and design parameters. In addition, the selection of high-pressure pumps also needs to be considered.

Supply stainless steelROMembrane shell The main specifications are4In inches and8In inches, Components and materials of reverse osmosis equipmentSUS304orSUS316LEnd cover, membrane tube flange sealing, siliconeoThis type of sealing ring has excellent sealing performance and a higher pressure resistance than the clamp type. Its surface is mirror-polished and it has an attractive appearance. It is widely applied in various water treatment projects, pharmaceuticals, electronics, chemical and other industries.

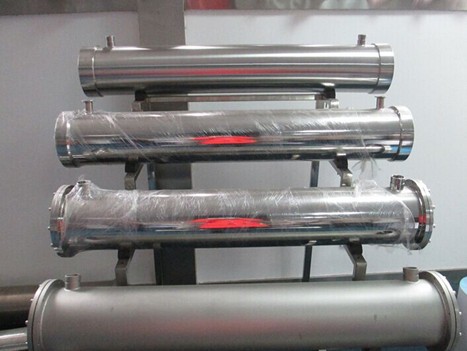

8"Stainless steel membrane housing series

All made of stainless steel, the membrane shell is polished both inside and out

Water inlet method: Water enters from both ends(Atype)Water ingress on both sides(Btype)

Structure: Standard spare parts, easy and quick disassembly

Sealing performance: Tested by water pressure

End structure: Flange type, end plate type

4"Stainless steel membrane housing series

The shell is made of stainless steel tubesSUS304It is divided into two types: sewn membrane housing and seamless membrane housing

Head: Enhanced imports from JapanABSIt is made with high strength and pressure resistance

Water inlet method: Water enters from both ends(Atype)Water ingress on both sides(Btype)

Connection between the shell and the head: quick-opening type, clamp type

Structure: Scientifically reasonable, quick and convenient to install, and withstand voltage test

All kinds of accessories in our factory are processed and produced by ourselves,The quality is easy to guarantee..

1. 4There are inch stainless steel membrane shells available1Core assembly﹑2Core assembly﹑3Core assembly4Core packaging and other series.

2.Membrane shell tubes are divided into welded tubes﹑There are two types of seamless pipes.

The seam pipe is automatically welded into shape, Uniform weld seams﹑"Flat",The inner and outer surfaces are treated with a mirror finish.Withstand voltage test is conducted before leaving the factory,Pressure up16kg;

Seamless tubes are directly drawn from forged billets,Uniform wall thickness,Not prone to leakage,The inner and outer surfaces are treated with a mirror finish,Withstand voltage test is conducted before leaving the factory,Pressure up25kg.

3.The connection methods of the inlet and outlet water ports include side inlet and end outlet﹑There are two types: end-to-end input and end-to-end output;The specifications are6pointsx4Divide and4pointsx4It is divided into two types.

4.The materials for the head cover includeABS﹑Stainless steel304.

4Inch stainless steel membrane shell

Product features

1.Shell material: Stainless steel304or316LThe membrane housing is polished both inside and out

2.HeadABSHead, stainless steel head

3.It can hold four-stage filter membranes

4.It is divided into two types: sewn membrane shell and seamless shell

5.Water inlet method: Water inlet from both endsAType), water inlet on both sidesBType

6.Connection between the shell and the head: flange type, clamp type

7.Structure: Scientifically reasonable, quick and convenient to arrange, and has passed the pressure resistance test
