Materials and production processes of FRP water tanks. The unique performance has solved the problems of easy rusting and anti-rust coating peeling of steel plate water tanks, as well as the heavy weight, easy leakage, easy growth of green algae and water quality pollution of concrete water tanksSMCThe water tank has the advantages of good water quality, no leakage, light weight, economic price, beautiful appearance, long service life and easy installation.

SMCThe molded combined water tank is suitable for industrial and mining enterprises, public institutions, civil residences, hotels, restaurants and other public buildings. It is an essential water storage facility for domestic water supply, fire protection water supply, and industries with high water quality requirements such as medicine and health care.

SMCThe cleaning and hygiene performance of the molded water tank Chemical and toxicological tests were conducted by the Institute of Environmental Health and Health Engineering of the Academy of Preventive Medicine and the Beijing Station for Disease Control and Prevention, and the evaluation is as follows:No toxic or prohibited compounds were found in the provided synthetic materials things:Based on the results of chromatography-mass spectrometry identification and volatile matter detection,SMCNo high-content and highly toxic compounds were found in the water immersion solution of the water tank;Toxicity testSMCThe results of animal experiments involving water immersion in the water tank indicated no acute toxicity or accumulation toxicity. The water quality of the tank soaking complies with the national drinking water standards(GB5749-85)And the water quality standards for high-level water tanks in Japan.

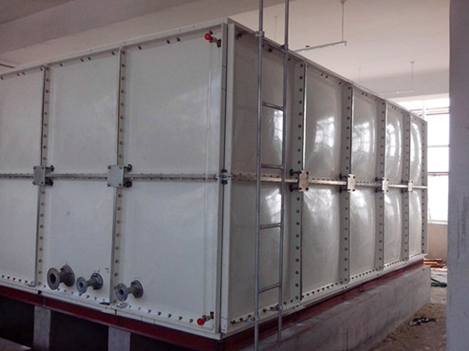

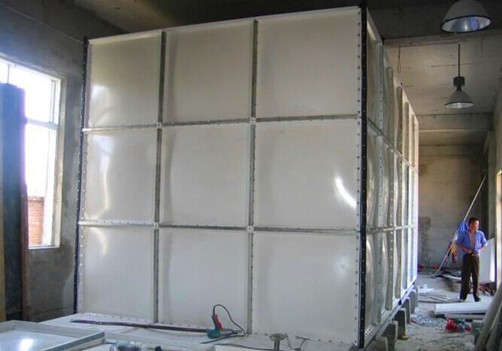

SMCThe structure of the molded water tank The FRP combined water tank is composed ofSMCIt is composed of molded single plates, sealing materials, metal structural components and piping systems, and can be assembled according to the user's needs1-1000m3If the existing water tank needs to be replaced New, no need to renovate the house. Just transport the molded open plates through the door and they can be assembled. It has strong adaptability and brings great convenience to design and construction. General water tanks are in accordance with standards Design: Special large water tanks need to be specially designed. The water tank seal is a specially developed standardized product--Sealing tape, this sealing tape is water-resistant, highly elastic, has little deformation, and has a long service life30More than one year.

Specifications and performance of FRP water tanks SMCSpecifications of molded single boards(Other specifications can be negotiated):1000×1000mm,1000×500mm,500×500mm;The thickness is available5mm,8mm,10mm, l2mm, 14mm,16mmIt is5mmSingle plates of this thickness are specially made for water tank covers.

SMCThe molded water tank complies with the national building materials industry standards.

Tensile strength ≥70Mpa

Bending strength ≥100Mpa

Bending elastic modulus ≥5900Mpa

Barr hardness ≥60

Water absorption rate ≤1.0%

Fiber content after work ≥25

FRP water tankSMCWater tankSMCThe molded combined water tank has a mature technology, a simple and beautiful appearance, is lightweight and economical in price, making it an excellent choice for users
