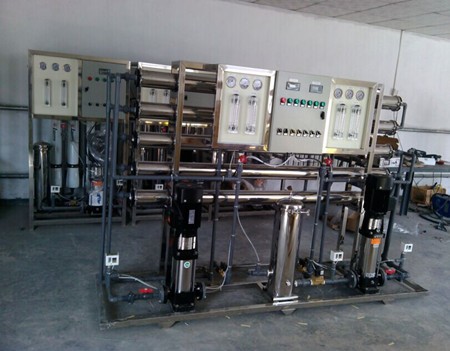

1T/HFully automatic two-stage reverse osmosis equipment

Reverse osmosis equipmentIt is applicable to water treatment equipment in industries such as beverages, chemicals, hospitals, electronics, and flowers, and can also serve as the core equipment for water purification houses in communities, industrial zones, oil fields, etc. Reverse osmosis is the most energy-efficient and effective membrane separation technology in the world today. It mainly utilizes the osmosis principle of semi-permeable membranes. By applying a pressure in a certain way, a force opposite to the natural osmosis direction, water in the concentrated solution is made to permeate into the dilute solution. This method is called reverse osmosis. A device composed of reverse osmosis elements is called a reverse osmosis device. The pore size of reverse osmosis membranes is very small, so they can effectively remove inorganic salts, heavy metal ions, organic matter, colloids, viruses and other impurities in water. This enables the pure water that can pass through to be strictly distinguished from the concentrated water that cannot.

Raw water tank→Raw water booster pump→Multi-media filter→Activated carbon filter→Scale inhibitor system→Precision filter→First-stage high-pressure pump→First-stage reverse osmosis→Middle water tank→Secondary high-pressure pump→Secondary reverse osmosis→Water storage tank→Product water

Reverse osmosis water treatment technology is basically a physical method. Its desalination process has the following excellent characteristics that traditional water treatment methods do not have in many aspects:

1Reverse osmosis is a physical method that desalinates and purifies water without phase change at room temperature.

2The treatment of water relies solely on water pressure as the driving force, and its energy consumption is relatively low among many treatment methods.

3It does not require a large amount of chemical agents or acid-base regeneration treatment.

4There is no neutralization treatment process of chemical waste liquid or waste acid and alkali, and no environmental pollution.

5The system is simple, easy to operate, and the water quality of the product is stable. The two-stage reverse osmosis can obtain high-quality pure water.

6It is suitable for a wide range of raw water qualities, and is applicable not only to the treatment of brackish water, seawater and sewage, but also to the desalination treatment of low-salt water.

7The equipment occupies a small area and requires less space.

8The workload for operation and maintenance as well as equipment repair is extremely small.
