Reverse osmosis technology is an energy-efficient and effective membrane separation technology nowadays. The principle is that under the effect of pressure higher than the osmotic pressure of the solution, these substances and water are separated because other substances cannot pass through the reverse osmosis membrane. Due to the extremely small pore size of reverse osmosis membranes, they can effectively remove dissolved salts, colloids, microorganisms, heavy metal ions, organic matter, pyrogens and viruses from water. Wait. Reverse osmosis water treatment equipment can effectively meet the requirements of the processing and brewing industries for pure water

Product Name

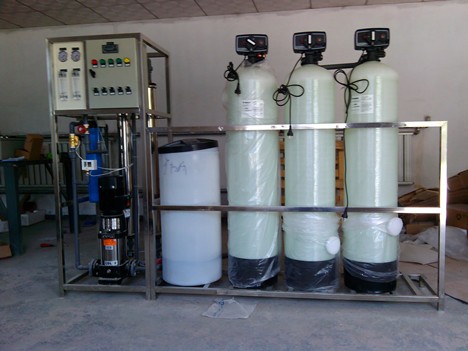

Single-stage reverse osmosis pure water equipment

Product Introduction

This reverse osmosis pure water machine series adopts a single/Two-stage low-pressure reverse osmosis technology is used to purify tap water. Combined with a carefully designed filtration and adsorption system, it can effectively remove various substances in water that are harmful to health, such as residues and heavy metal ions, and can also remove carcinogenic and pathogenic substances such as trichloromethane and fluorine that cannot be removed by conventional methods.

This series of reverse osmosis pure water machines integrates the complete and formal production process of drinking pure water into one, with a clear process and easy maintenance. It can serve as the core equipment for water purification houses in communities, industrial zones, oil fields, etc., and also as water treatment equipment for industries such as beverages, chemicals, hospitals, and electronics.

Raw water - raw water booster pump - multi-media filter - activated carbon filter - sodium ion filter - precision filter - high pressure

Pump - Reverse osmosis main unit - Pure water tank - Pure water booster pump - Ultraviolet device - Water usage system

Operating parameters of single-stage reverse osmosis device

1Recovery rate60-75%

2Operating pressure:1-1.5Mpa

3Removal rate: greater than99%

4Pyrogen removal rate: greater than99%

5Conductivity of the effluent: less than10μs/cm

Process Two

Suitable for drinking purified water, brewing, and beverage water.

Raw water - raw water booster pump - multi-media filter - activated carbon filter - sodium ion filter - precision filter - high pressure

Pump1Reverse osmosis main unit - high-pressure pump2Stage reverse osmosis main unit - ozone generator - pure water tank - pure water pressurization

Pump - ultraviolet device - Water system

Operating parameters of the two-stage reverse osmosis device

1Conductivity of the effluent: less than10μs/cm

2Recovery rate75%

3Operating pressure:1-1.5Mpa

Note: Depending on the quality of the raw water and the effluent requirements, the main unit can be selected as one or two stages of reverse osmosis, or with additional post-treatment.

+Mixed bed of anions and cations+Polishing mixed bed or+EDI+Polishing mixed beds and other treatments are made into ultrapure water.
