As time goes by, we gradually understand the water treatment industry. However, many enterprises still do not know about water softening equipment. So, what is the function of water softening equipment and why is it necessary to install itSoftened water equipmentAnd?

I.In which industries can water softening equipment be used?

It has a wide range of applications: It can be widely used in systems such as boilers, heat exchangers, air conditioners, laundry equipment, industry, textiles, and printing industries.

Ii.What components does a water softening equipment consist of?

1,Control valve (Fleck control valve)2Resin tank3Exchange ionsFloretSoftening resin)4,PESalt tank

Iii.So, what role does a water softening device play?

Fully automatic water softenerIt can be classified into various series such as time-controlled type, flow-controlled type, and continuous soft water supply system type. There are multiple combination forms including single-valve single-tank, single-valve double-tank, double-valve double-tank in parallel, and large multi-valve multi-tank in series, meeting users' different water usage demands. The flow type is fully automatic regeneration with the set flow control. The flow rate can be set according to the different resin filling volume and water quality conditions. The time type is based on the resin filling volume and water quality conditions, combined with the specific hourly demand to convert the time, and the fully automatic regeneration is controlled by the set time(7Heaven or12The regeneration cycle can be set as needed within a day.24The regeneration time can be chosen at will within hours)

Natural water can be divided into two types: hard water and soft water:All contain a relatively large amount of calcium and magnesium ions(Inorganic minerals)Water that is hard is called hard water,Conversely, It is called soft water. If the hardness of water is caused by the presence of sodium carbonate or magnesium bicarbonate, such water is called temporary hard water;The hardness of water is caused by sulfates or chlorides containing calcium and magnesium This kind of water is called hard water.

Simply put, the content of calcium carbonate in water is less than10Milligram/The water that rises is of high standard soft water. In Western developed countries, as 90%Household water use(Including cooking, washing, bathing, etc)All use soft water. Pollution-free rainwater, snow water and dew are all natural soft water.

FourThe working principle of water softening equipment

Fleck control valveThe kinetic energy of water flow is utilized to drive two sets of turbines, which respectively drive two sets of gears to rotate the water meter dial and the control dial. The water meter panel accumulates the flow rate passing through, and the control panel introduces the raw water pressure signal into a group of valve chambers through a set of channels. While rotating, it opens or closes the pressure channels according to the set rule, thereby achieving the automatic switching of a group of valves integrated into one.

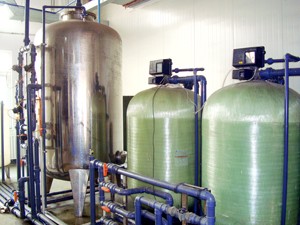

The water softener consists of two resin tanks(Main tank and auxiliary tank)It is composed of three parts: the hydraulic control valve and the salt tank. The control valve controls the waterway to switch between the main tank and the auxiliary tank, ensuring that one tank is always in operation while the other is in the regeneration or standby state. The regeneration salt solution is sucked in under negative pressure by the Venturi injector installed inside the valve, and the regeneration and cleaning water is the softened water from the other tank. Different numbers of water meter dials should be used for different raw water hardness to achieve the corresponding working and regeneration cycles.

V.Work process (Fully automatic water softening equipment)

Work(Sometimes it is called water production, the same below)Backwashing, salt absorption(Regeneration)Slow rinse(Replacement)Five processes of quick rinse. All the processes of different water softening equipment are very similar. However, due to the differences in actual processes or control requirements, there may be some additional procedures. Any water softening equipment based on sodium ion exchange is developed on the basis of these five processes(Among themFully automatic water softening equipmentIt will increase the process of salt water recharging.

SixConsultation methods for water softening equipment

Beijing Yuanlai Water Treatment Equipment is dedicated20In the year, the water treatment industry, as well as assembly and technical guidance, have been established in various fields100000Yuanlai Water Treatment Equipment is a dedicated manufacturer specializing in installation, maintenance, and commissioning. We offer a one-stop after-sales service with favorable prices. For detailed inquiries, please contact us. Tel:010-59792055BeijingYuanlai Water Treatment equipmentProvided by the limited company.
