SMC fiberglass reinforced plastic combined water tanks and stainless steel welded water tanks are easy to install and have a long service life

Released Date: Nov 28,2016 Article Source: Yuanlai Water Treatment

SMC water combination water tanks are a new type of water tank widely adopted at present. They have the advantages of no permeability, light weight, good water quality, beautiful appearance, long service life and easy installation. Its performance has completely solved the problems of heavy weight and easy seepage of concrete water tanks. The water tank was a key scientific and technological project during the "Seventh Five-Year Plan" period and was included in the new product promotion projects of the National Science and Technology Commission in 1990.

SMCMolded plate combined water tank　　

SMCWater combination water tankIt is a new type of water tank that is widely adopted at present. It has the advantages of no permeability, light weight, good water quality, beautiful appearance, long service life and easy installation. Its performance has completely solved the problems of heavy weight and easy seepage of concrete water tanks. The water tank is a key scientific and technological project of the Seventh Five-Year Plan and has been included in the list of the National Science and Technology Commission１９９０New product projects promoted in the year.

　　SMCMolded veneer, total:1000mm×1000mm,1000mm×500mm,500mm×500mmThree specificationsＳＭＣThe flange specifications of the molded single plate are50mm×11mm.

　　ＳＭＣThe thickness of the molded single board can be pressed according to the capacity of the water tank5mm-20mm,Among them5mmSingle plates of the required thickness can be used as water tank covers, and thus can be assembled into water tanks of the desired volume at will.

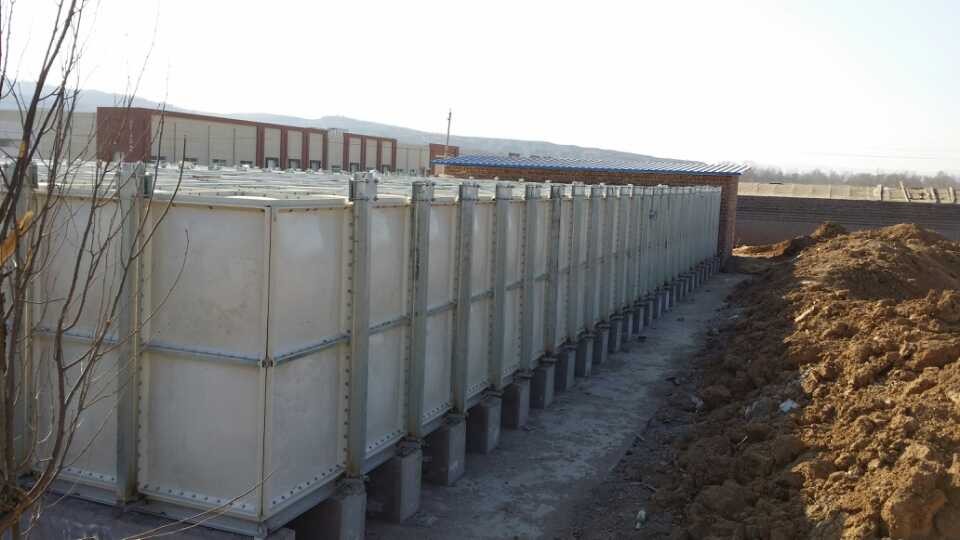

psb (1).jpg

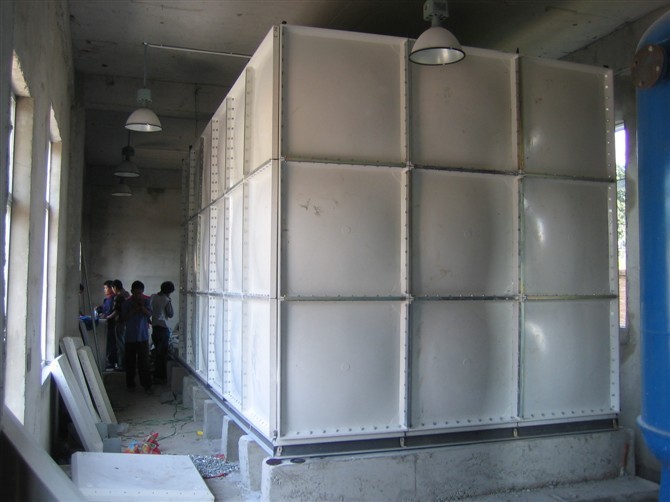

FRP water tank.jpg

Stainless steel welded water tank

Select good gradeSUSStainless steel plates completely block sunlight exposure, prevent algae growth, and keep water clean at all times. The company's unique plate shape and highly challenging stamping forming process achieve high-strength usage requirements with minimal material consumption, and its weight is only one-third of that of ordinary steel plate water tanks.

　　The insulation panels that fit the box body are interlocked as a whole and cover the surface of the box body. Their aesthetic appeal is no less than that of the box body itself.

　　The shape can be customized according to the customer's requirements, and the volume can meet all design requirements. There are no special requirements for the installation site, and insulation services can be provided.

　　The structural design is fully welded and assembled on site, featuring extremely high strength. Unlike the bolt structure, it eliminates the need for sealing strips, thus avoiding leakage and poor sealing.

　　The smooth lines and design make the entire box simply a work of art, pleasing to the eye.

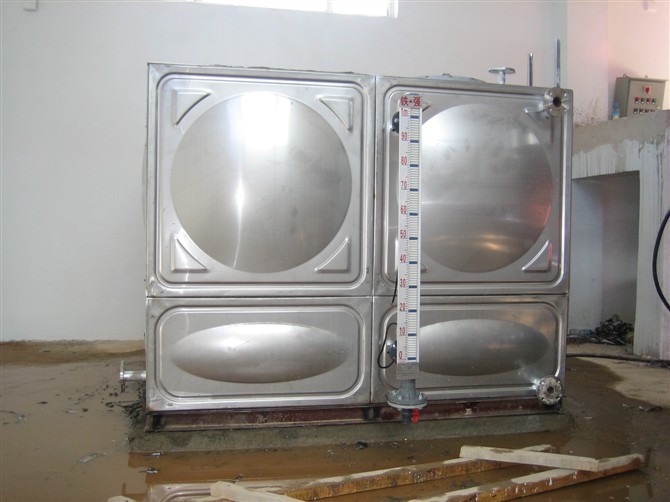

Stainless steel water tank02.jpg

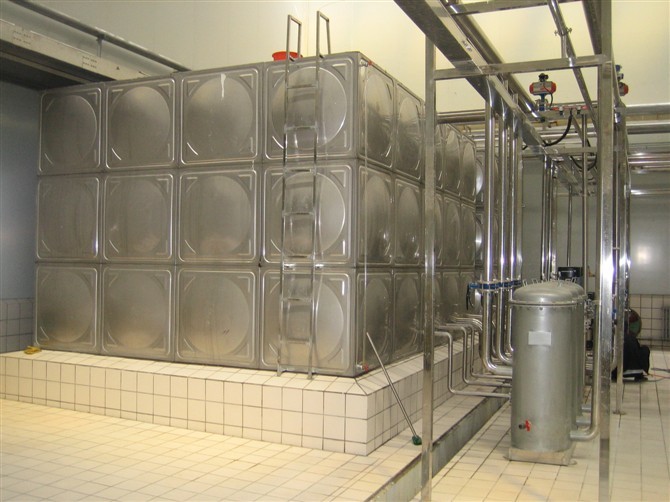

Stainless steel water tank03.jpg

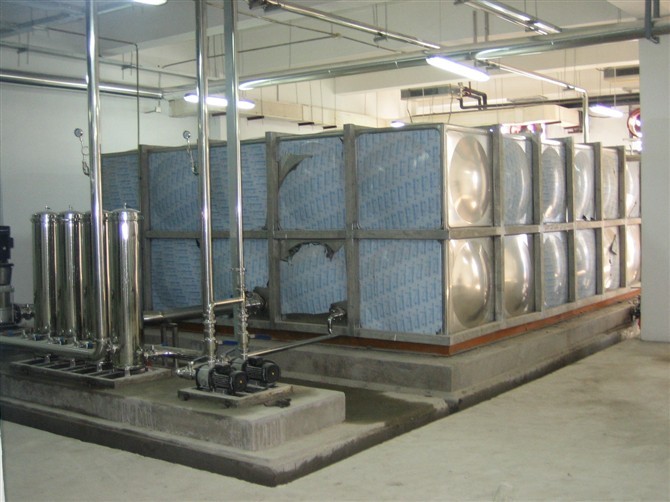

Stainless steel water tank04.jpg
