Cyclone sand removers and cyclone dirt removers integrate sand removal, turbidity reduction and solid-liquid separation in the field of water treatment

Released Date: Nov 22,2016 Article Source: Yuanlai Water Treatment

The cyclone desander independently produced by Beijing Yuanlai is mainly applicable to: 1. Water quality treatment and control of raw water and make-up water; For example: sand removal from river water and well water, coal washing water, industrial mineral processing, solid-liquid separation, liquid degassing, and separation of non-miscible liquids, etc. 2 It can be widely applied to water source heat pump systems, heating water, air conditioning cooling water, chilled water, steel, power generation, chemical and other industrial and mining enterprises, tap water, seawater, surface water, groundwater, etc.

Cyclone sand (dirt) remover


one Product function

　　Developed by our companyXL(IIThe type of cyclone sand (dirt) remover integrates cyclone and filtration functions. It is mainly used to clean solid particles from groundwater and other water sources including underground hot water, achieving sand removal and turbidity reduction in the field of water supply treatment. Solid-liquid separation and other effects.

two Scope of application

　　1. It is mainly applicable to the water quality treatment and control of raw water and make-up water. For example: sand removal from river water and well water, coal washing water, industrial mineral processing, solid-liquid separation, liquid degassing, and separation of non-miscible liquids, etc.

　　2. It can be widely applied to water source heat pump systems, heating water, air conditioning cooling water, chilled water, steel, power generation, chemical and other industrial and mining enterprises, tap water, seawater, surface water, groundwater, etc.

Three Product features

　　1. The secondary filtration has a filtration efficiency of up to99%That's all.

　　2. Precise tangential processing ensures the maximization of cyclone efficiency.

　　3. Proper internal treatment ensures the equipment's own impact resistance, wear resistance and corrosion resistance.

　　4. It has solved the problem that traditional cyclone (sand and dirt) removers have difficulty in treating light specific gravity contaminants such as suspended solids, leaves, and paper scraps.

four. Specification model and external dimensions

1.AType (columnar type)BType (conical) cyclone desander

　　①.External dimension drawing

Swirl (cylindrical type.png

Swirl (conical).png

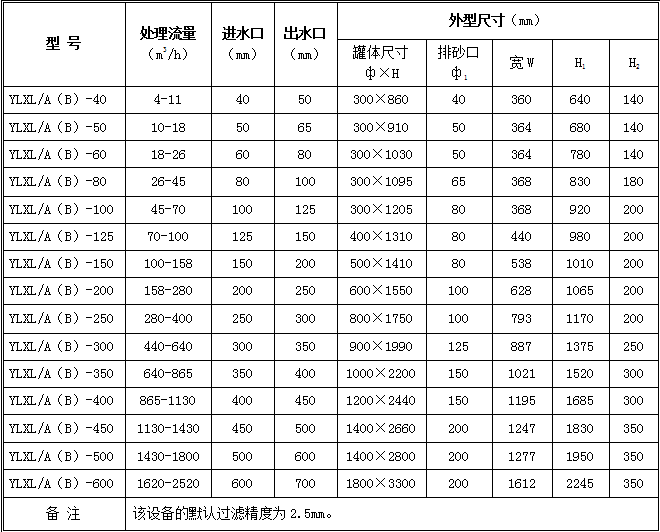

　　②.List of Specifications and Models

AType (columnar type)BA list of specifications and models of type (conical) cyclone sand removers

Specification and model table of Cyclone Desander.png

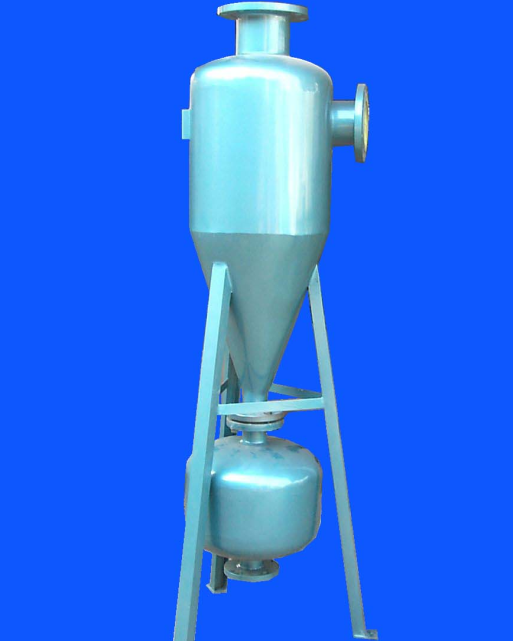

Swirl (Screenshot.png

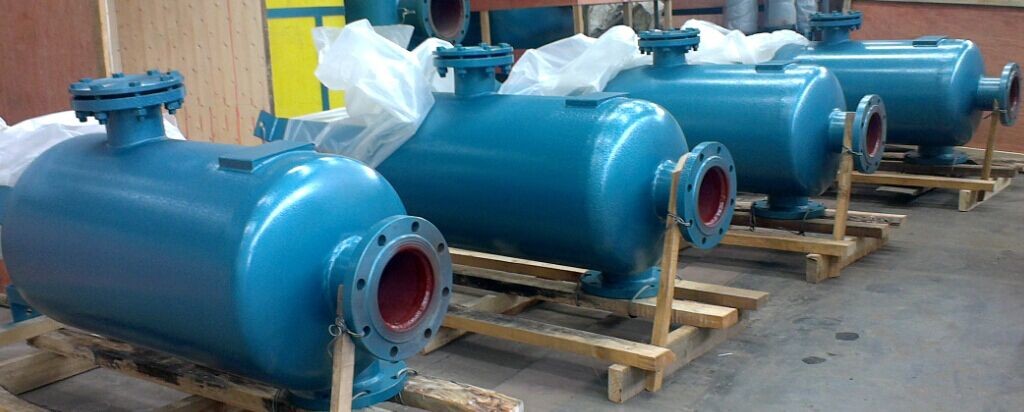

Cyclone sand removal003(Screenshot.jpg

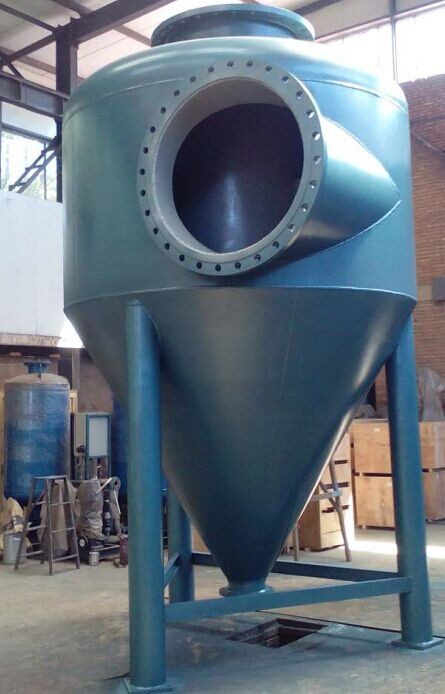

Cyclone sand removal006(Cut.jpg
