What is a softened water tank?

　　A softened water tank is a container for storing softened water that has undergone softening treatment, and its manufacturing process is the same as that of a general water supply tank. When an ion exchanger is used for water softening, the flow rate of the raw water during the softening process should not be too high, and softened water cannot be produced during the regeneration process after the exchanger becomes ineffective. So, it needs to be stored in a water tank and extracted at any time.

　　The softened water tank is used to supply softened water to the system. The water comes out of the resin exchange tank and enters the softened water tank, and then is pumped into the system by the make-up water pump. A softened water tank refers to the process of softening ordinary hard water through electronic means. The aim is to minimize the formation of scale in air conditioning pipes, as scale on the pipe walls will reduce the efficiency of cooling (heating). Especially when heating in winter, it is even more necessary to soften it.

　　The softened water tank should be set either above or below the ground according to the layout of the water treatment room. When it is set underground, if the pump shaft is higher than the water level in the water tank, a suction bottom valve should be installed on the day when the pump sucks water.   The softened water tank should be equipped with a water level gauge that can display the water level to observe the water volume in the softened water tank. Tengjia softened water tanks (mainly used in air conditioning treatment systems) refer to the softening of ordinary hard water through electronic means. The purpose is to minimize the formation of scale in air conditioning pipes, as scale on the pipe walls will reduce the efficiency of cooling (heating). Especially when heating in winter, it is even more necessary to soften it.

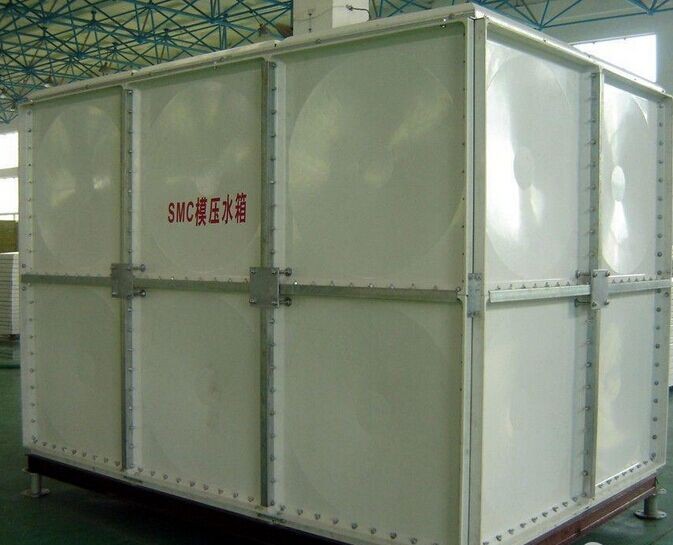

    FRP softened water tank

　　FRP softened water tanks have excellent corrosion resistance and a longer service life than stainless steel Steel and galvanized steel plate materials are much longer and usually have a service life of up to30In the year. The FRP softened water tank is all made of grade resin, so the water quality is good, clean and pollution-free. It features high strength, light weight, corrosion resistance, beautiful appearance and ease of use It features a long service life and convenient maintenance and management.

　　Beijing Yuanlai water tanks are widely used in industrial and mining enterprises, institutions, residential buildings, hotels, restaurants and other buildings as drinking water and reclaimed water for domestic fire protection Storage facilities for water treatment, fire-fighting and other water uses.

　　Analysis of the Advantages of High-quality Yuanlai FRP Prefabricated Softened Water Tanks 1High-quality materials: Both the resin and glass fiber are from domestic brands to ensure product quality. 2Structure: With special sealing strips and a fully bolted connection structure, it is easy to assemble and will not have leakage or poor sealing. In addition, the special pull rod structure on the inner side makes the mechanical performance more reasonable. All the bolts have undergone anti-corrosion treatment, and the sealing rubber strips are jointly developed by our company and several research institutions. 3Fast construction: Standard molded panels; It can be assembled freely without the need for hoisting equipment. The volume can meet all design requirements. There are no special requirements at the installation site, and the box is aesthetically pleasing. 4Light weight: The ratio of the specific gravity of the concrete water tank to its own weight is1:1,SMCThe molded water tank is1:0.1-0.2Therefore, it is called a portable water tank. 5Hygiene and environmental protection: It does not breed algae or red worms, avoids secondary water supply pollution, and keeps the water quality clean. 6Reduce cleaning: Cleaning once every six months is sufficient, which significantly lowers cleaning costs.

　　A softened water tank is a container for storing softened water that has undergone softening treatment, and its manufacturing process is the same as that of a general water supply tank. When an ion exchanger is used for water softening, the flow rate of the raw water during the softening process should not be too high, and softened water cannot be produced during the regeneration process after the exchanger becomes ineffective. The softened water tank should be equipped with a water level gauge that can display the water level to observe the water volume in the softened water tank.It is widely applied in hotels, restaurants, schools, hospitals, industrial and mining enterprises, public institutions, residential buildings and office buildings. It is an ideal product for water storage facilities in public life, fire protection and industrial use. Softened water tanks are indispensable components of public water supply systems in industrial and mining enterprises, civil residences, etc.

    Installation Instructions for Beijing Yuanlai Softened Water Tank

    1Requirements for the water tank foundation The geometric dimensions of the concrete foundation should be in accordance withGB02S101There is a plan. The height difference of the concrete foundation plane＜5mm

　　2Installation, construction and acceptance of water tanks Focus on on-site argon arc welding for welders. There is a standard power supply at the construction site. There is≥500mmThe maintenance space. Visual inspection shows no rust or contamination: Fill with water2-3hIt is qualified if there is no obvious deformation of the box body and no leakage at the welds.

　　3The use, maintenance and upkeep of water tanks When piping, do not apply excessive load to the inlet and outlet of the piping. Do not directly apply the weight of valves and large-diameter pipes to the water outlet of the water tank. If necessary, set up pipe supports Install expansion flexible joints for the expansion, contraction and vibration of welded pipes.

　　4Water tank configuration and matching accessories The water tank supply scope includes the tank body, manhole, ladder, short pipe and single flange (inlet, outlet, drain and overflow, totaling four parts). We can also provide matching accessories according to the user's requirements, such as float valves, glass tube level gauges and various water tank equipment, etc. Tengjia can produce various special-shaped products as requiredLShapeMShape, trapezoid. Various insulation measures can also be taken.

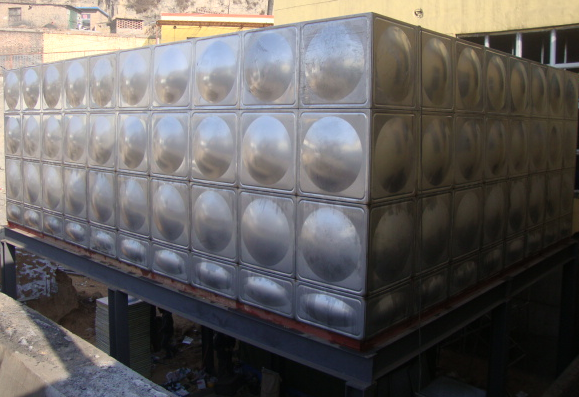

　　Stainless steel softened water tanks are the new generation of water tank products following fiberglass reinforced plastic water tanks. Their products adoptSUS304Precision die for stainless steel plates It is formed by pressing, with an elegant shape, economic practicality and a long-lasting main body. Compared with other water tanks, stainless steel water tanks have the advantages of light weight, high strength, corrosion resistance, high temperature resistance, clean water quality, anti-seepage, earthquake resistance, no moss growth and easy installation It has many advantages such as convenience, no need for maintenance and easy cleaning.

　　Beijing Yuanlai Water Treatment Company specializes in the production of softened water tanks. Common types of stainless steel water tanks include stainless steel fire water tanks, square modular water tanks, vertical cylindrical water tanks, and horizontal circular water tanks. "AdoptSUS304,SUS316L,SUS444Such as stainless steel Plate, formed by stamping. Generally, it is stamped into three sizes, namely1*1"Rice1*0.5Mi and0.5*0.5Three types of rice, Zhou The edges are welded by tungsten inert gas welding, featuring high strength, light weight, low cost, environmental friendliness and hygiene. The manufacturing standard is National Architectural Standard Design atlas02S101.

　　1The weld seam of the softened water tank, material: The following is compiled based on the technical parameters of the stamped stainless steel water tank, and the materials of the water tank accessories are adopted Made of ordinary carbon steel plates and profiled steel,LB304NI8.0The quality of welding with type electrodes should respectively comply with the current standards The provisions of "Carbon Structural Steel" and "Carbon Steel Electrodes".

　　Of the top, walls and bottom of the boxLB304The stainless steel plates are all spliced by butt welding (the top plate is.IType weld seam, base plate and The side walls areVFor type welds, all other welds are fillet welds. There must be no cross between the welds, and it is not allowed It coincides with the reinforcing ribs,Welding machineLB-2-300Special welding machine for stainless steel water tanks,It has the functions of electric welding and argon welding.

　　2Full water test

　　After the water tank is made, fill it with water and then2~3After an hour, apply more weight0.5~1.5The hammer of kilograms is welded along the lead edge About on both sides of the seam150Tap gently at the millimeter mark. If there is no leakage, it is qualified. If any leakage is found, it must be rewelded. Conduct the experiment again.

    I. Product Features of Softened Water Tank

　　1Stainless steel water tanks are generally adoptedSUS304The material is stainless steel plates,It has stable physical and chemical properties and does not pollute water quality Dye to ensure the water quality is clean and hygienic.

　　2Stainless steel water tanks are formed by stamping,High strength, light weight, neat appearance, elegant and beautiful.

　　3Water tank plates are generally made of high-nickel materials8.0Above3042Bplate,The surface is smooth, beautiful and easy to clean.

　　4Due to the presence of a dense oxide layer on the surface,It has excellent corrosion resistance and good sealing performance.

　　5It has great impact resistance and strong seismic performance.

　　6High-quality and excellent material selection: Good grade stainless steelSUS304It can greatly extend the service life of the water tank and effectively prevent problems Secondary pollution of water quality.

　　7The structure is reasonable: The high-strength pressed plates and the evenly distributed stainless steel reinforcing ribs inside the box ensure uniform and reasonable pressure bearing of the box.

　　8Convenient and fast construction: Standard stamped plates1000×1000,1000×500,500×500mmAssemble the on-site group at will Welding installation does not require hoisting equipment.

　　9The box body is light and beautiful: The high-quality stamping process not only ensures the maximum pressure-bearing requirements of the box body but also reduces the material The thickness of the material meets the aesthetic and practical requirements of the box body.

　　10When piping, do not apply excessive load to the inlet and outlet of the piping. Do not directly apply the weight of valves and large-diameter pipes to the water outlet of the water tank. If necessary, set up pipe supports: for the expansion, contraction and vibration extension of welded pipes Shrink flexible joint.

　　Ii. Cleaning of the softened water tank

　　1Close the water inlet valve and open the sewage outlet valve,Drain all the water from the water tank.

　　2Enter the water tank by climbing the ladder.

　　3Clean the periphery and bottom of the water tank with a clean mop or cloth. For those with severe dirt accumulation at the bottom, a soft towel can be used Scrub with detergent;

　　4Open the water inlet valve, add an appropriate amount of clean water to rinse the inner walls and bottom of the bucket, and let the dirt be discharged through the sewage outlet. If necessary, do so Repeat this process many times until you are satisfied.

　　5Close the drain valve, open the water inlet valve, refill the water tank with water, and the cleaning work is completed.

　　Iii. Application Scope of Softened Water Tank

　　Water supply, HVAC and fire protection systems for all kinds of industrial and civil buildings

　　Beverage, wine-making, water treatment industries:

　　The pharmaceutical, petroleum and chemical industries

　　The flexible and reasonable plate shape design can adapt to containers of various size combinations.
