The activated carbon filter utilizes the adsorption effect of activated carbon to adsorb harmful substances in the raw water

Released Date: Nov 10,2016 Article Source: Yuanlai Water Treatment

The YLAC series activated carbon filter is one of the substances with strong adsorption capacity. It has a large number of pores and a high specific surface area. It utilizes the numerous pores of activated carbon to adsorb residual chlorine, organic matter, colloidal particles, microorganisms and some heavy metal ions in the raw water, and removes trihalides and other substances in the water to improve the overall quality of the water.

　　Activated carbon filter

YLACSeries activated carbon filtersIt is one of the substances with strong adsorption capacity. It has a large number of pores and a high specific surface area. By taking advantage of the numerous pores of activated carbon, it adsorbs residual chlorine, organic matter, colloidal particles, microorganisms and some heavy metal ions in the raw water, and removes trihalides and other substances in the water to improve the overall quality of the water.

　　The reverse osmosis equipment requires that the residual chlorine content of the feed water be less than0.1mg/LTherefore, an activated carbon filter is used to remove residual chlorine from the raw water to prevent the reverse osmosis membrane from being contaminated. At the same time, it can further adsorb organic matter in the raw water. The activated carbon filter is filled with refined activated carbon, which is used to adsorb residual chlorine, organic matter, some pigments and harmful substances in the raw water, reducing the chemical oxygen demandCOD.

I.Scope of applicationIt is widely applicable to industries such as medicine, electronics, chemical engineering, and industrial wastewater treatment.

Ii.Specification and model of activated carbon filter

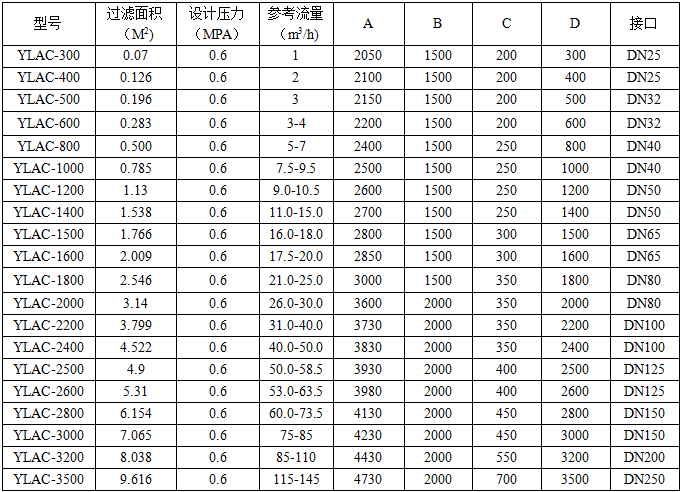

　　List of specifications and models of Activated Carbon filters

Technical diagram of activated carbon filter.png

Iii. Engineering Case Drawings

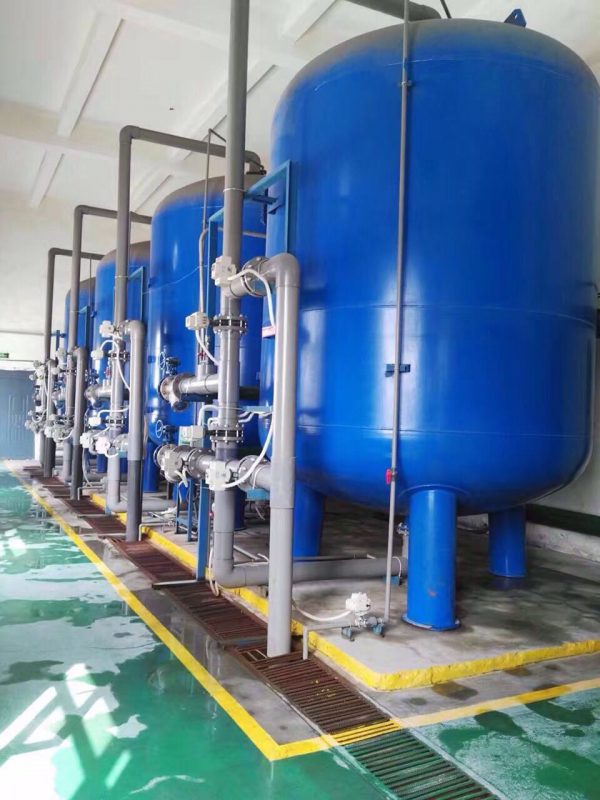

Multi-media filter.png

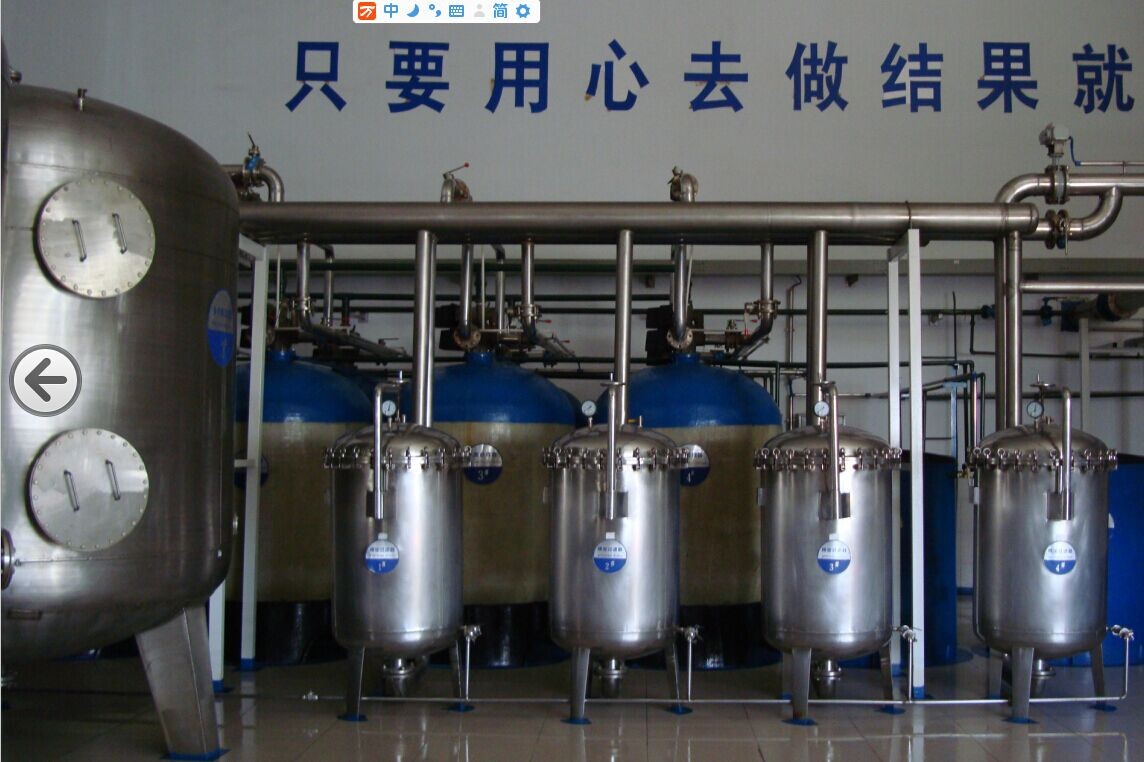

Multi-media quartz sand filter.jpg

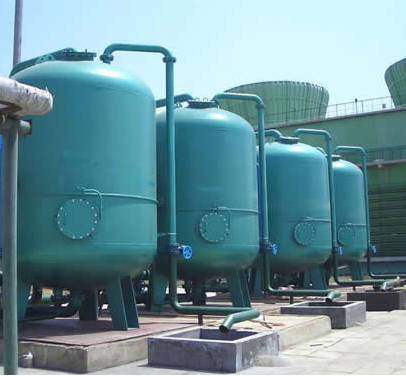

Multi-media filter.png
