Basic specifications and technical parameters table of HL type fully automatic water softening equipment

Released Date: Oct 26,2016 Article Source: Yuanlai Water Treatment

The fully automatic water softener, also known as the water softening treatment device, water softening equipment, water softener machine, water softening treatment equipment, and water softener. The water softener equipment is composed of a fully automatic water softener controller, resin tank (generally fiberglass reinforced plastic resin tank and stainless steel resin tank), strong acid type sodium ion cation resin, salt tank and accessories, forming a complete set of equipment. Fully automatic water softening equipment can be classified into various series such as time-controlled type, flow-controlled type, and continuous soft water supply system type. It comes in multiple combination forms including single-valve single-tank, single-valve double-tank, double-valve double-tank in parallel, and large multi-valve multi-tank in series, meeting users' diverse water usage requirements.

HLSeries of fully automatic soft water equipment

I. Main Functional Features of the Fully automatic water Softener

　　1It features a high degree of full automation, stable water supply conditions and a long service life. The entire process operates automatically, requiring only regular manual salt addition.

　　2High efficiency, low energy consumption, and low operating costs. Due to the reasonable overall design of this water softener, the exchange capacity of the resin is fully exerted. The energy consumption indicators of the equipment itself are significantly lower than those of general water softening equipment. The automatic control equipment does not require full-time operators, which brings many conveniences to users and generates good benefits.

　　3The equipment has a compact structure, occupies a small area, and does not require a dedicated equipment foundation. It can be directly placed on a flat cement floor.

　　4It is easy to use, with simple installation, debugging and operation. The control components are stable in performance, which can relieve users of their worries.

　　5The control valve body is made of corrosion-resistant, pollution-free and lead-free brass, with an inner liningPEGrade plastic exchange tankPEThe material of the salt tank is sufficient to ensure the excellent performance of this equipment in terms of corrosion resistance, anti-pollution, odorlessness and harmlessness.

twoTechnical indicators of water softener price

　　Raw water hardness≤8mmol/L Effluent hardness≤0.03mmol/L

　　Water supply pressure0.2-0.5Mpa pressure Loss0.03-0.06mpa

　　electricity SourceAC220V,50Hz work Rate3W-40W

　　consumption water Quantity≤2% consumption salt Quantity0.16-0.24KG/L

　　Raw water temperature5-45℃

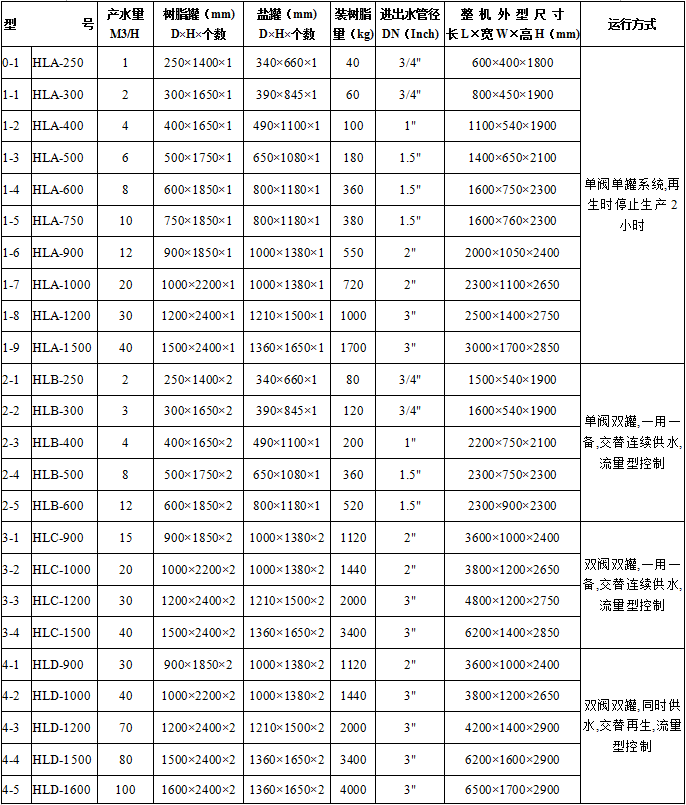

Iii. Beijing YuanlaiHLBasic Specifications and Technical Parameters Table of Type Water Softener

Technical Parameter table of Water Softener01.png

work

cheng

real

case

Pictures of water treatment systems 009.jpg

General Staff Department III

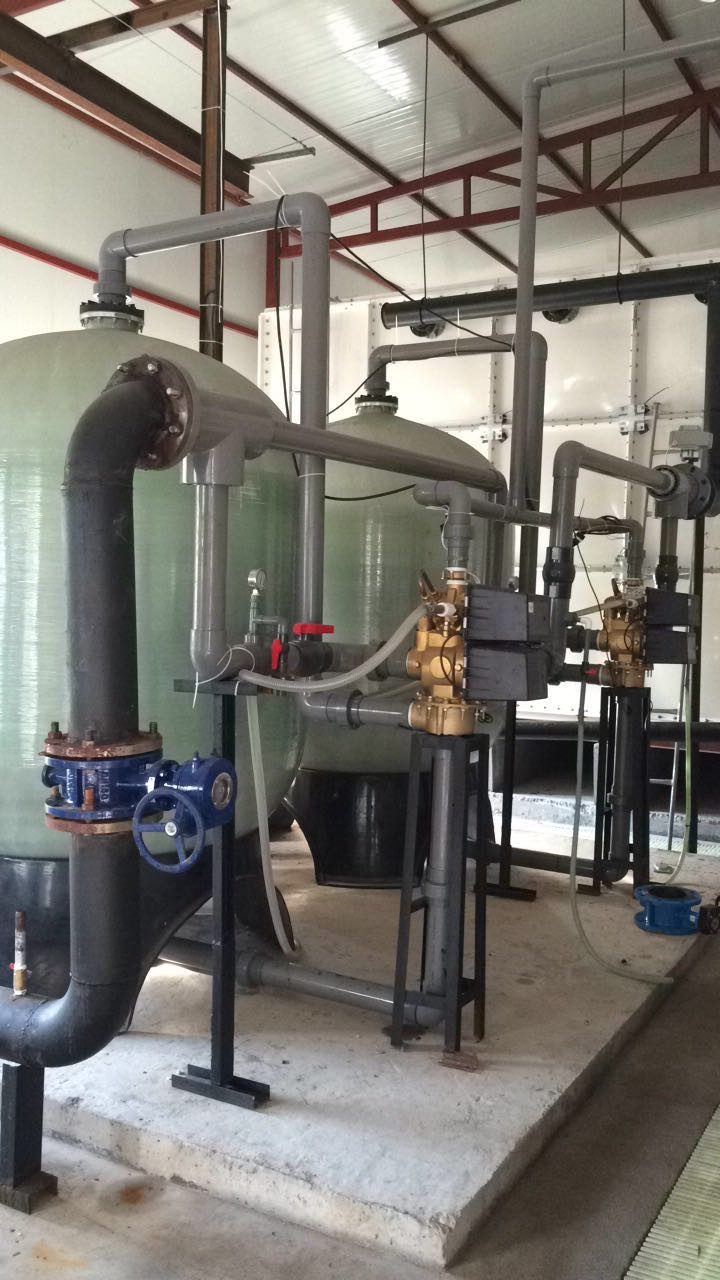

Yanji Heating.jpg

Yanji Heating

Shanhaiguan Heating Station

Tianjin Aerospace 026#
