Installation and commissioning of Fleck 5600 water softener

Released Date: Dec 21,2015 Article Source: Yuanlai Water Treatment

The installation of the water softener should be carried out by connecting the inlet, outlet and sewage outlet pipes as recommended by the manufacturer, and should comply with relevant pipeline specifications. Manually turn the control valve of the water softener to the working position to allow water to flow into the resin tank. When the water flow stops, open the inlet and outlet until all the air in the pipeline is discharged, and then close the inlet and outlet. Note: You can manually rotate the knob at the front of the control valve to set it to different regeneration positions until the water softener is displayed at the desired position. 2. Manually turn the control valve to the backwash position to allow water to flow out of the drain for 3 or 4 minutes. Example figure: 3. Remove the rear cover plate of the control valve. Example Figure: 4. Ensure that the amount of salt used is set as recommended by the manufacturer. If necessary, set the amount of salt according to the setting manual. Manually turn the control valve to the brine refilling position to fill the void with water

　　1.Manually turn the control valve of the water softener to the working position to allow water to flow into the resin tank. When the water flow stops, open the inlet and outlet until all the air in the pipeline is discharged, and then close the inlet and outlet.

　　Note: You can manually rotate the knob at the front of the control valve to set it to different regeneration positions until the water softener is displayed at the desired position.

　　2.Manually turn the control valve to the backwash position to allow water to flow out through the drain outlet3or4Minutes.

　　Example diagram

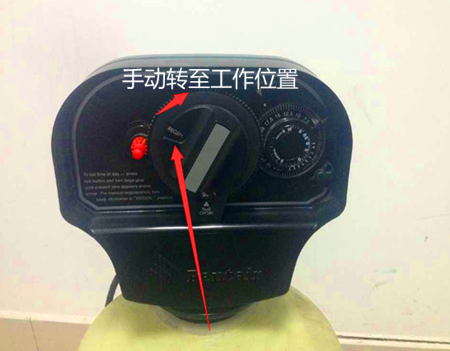

5600Control valve

　　3.Remove the rear cover plate of the control valve.

　　Example diagram

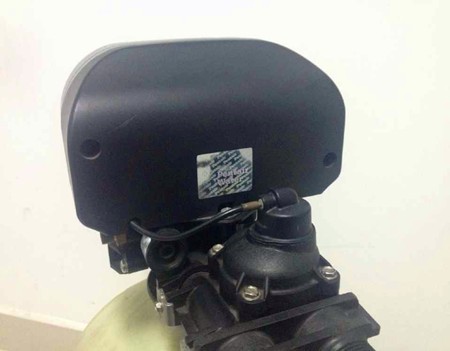

5600Rear end of the control valve

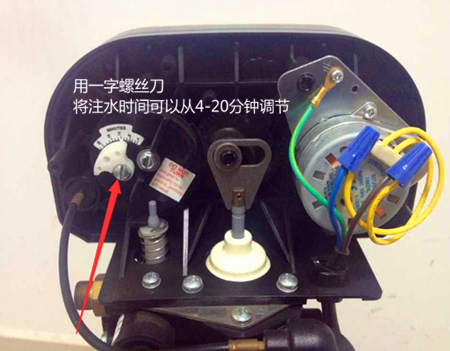

　　4.Make sure the amount of salt used is set as recommended by the manufacturer. If necessary, set the amount of salt according to the setting manual. Manually turn the control valve to the brine refilling position to fill the top of the air check valve with water.

　　Example diagram

5600Control valve

　　5.Manually turn the control valve to the brine suction position to draw water from the brine tank until it stops.

　 Flow type

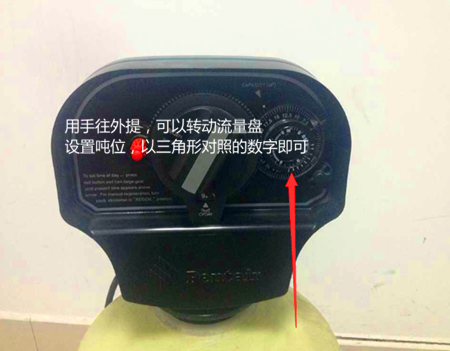

　 6.Connect the power supply and observe the sight hole on the back of the motor to see if it is running. Regeneration can be set through the flow disk.

　　Example diagram

5600Control valve

Time type

　　Each thin slice represents a day. The thin sheet at the red pointer represents the day. When the red pointer is turned clockwise, the thin sheet can be pulled out or pulled back to obtain the required regeneration time arrangement.

　　7.Manually push the beginning of the salt water refilling position of the control valve forward to allow the control valve to automatically return to the working position.

　　8.Add salt to the brine tank.

　　9.Install the control valve rear cover.

　　10.Make sure the bypass valve is in the normal working position.
