Oilfield softening water equipment: Beijing Yuanlai Softening Water Equipment Company

Released Date: Mar 28,2019 Article Source: Yuanlai Water Treatment

A one-stop supply service provider specializing in the maintenance, installation and commissioning of oilfield softening water equipment

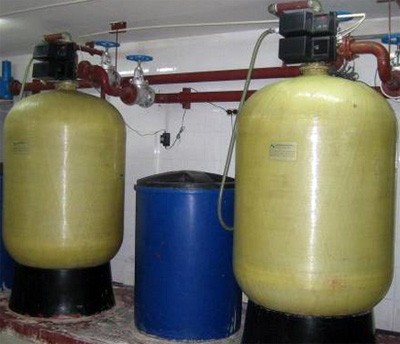

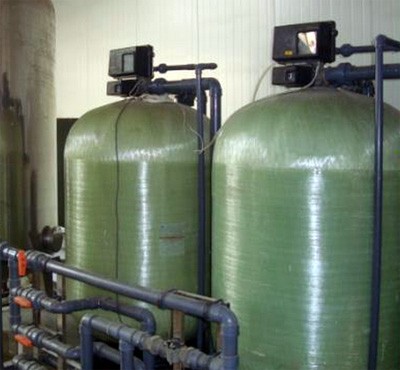

50T/HIntroduction to the Hourly Oilfield Softening Water Equipment

As a manufacturer specializing in water softening equipment, we soften the raw water before it enters the equipment. This way, calcium and magnesium ions in the water are removed, preventing the formation of scale on the inner walls. After years of research and development, we have produced water softening equipment for oil fields, which has been widely recognized by users. Continuous water production, with a water production volume of50Tons. In addition to water softening equipment for oil fields, water softening equipment for use in other industries has also been produced.

For example, water softening equipment for steam boilers.

1,The pipeline should be equipped with force-bearing supports to prevent the control valve from being subjected to force.

2,When the inlet pipe of the water softener is connected to the domestic water pipeline, a backflow preventer should be installed on the inlet pipe.

3,If the inlet water pressure is lower than0.15MPaAt that time, pressurization measures should be adopted.

4,The length of the sewage pipe should be less than6m;No valve is installed on the pipe;The outlet should not be higher than the valve body, and the terminal should be open to avoid siphoning.

5,Except for the water softeners that use water-driven multi-way valves, there must be220VPower supply.

6,Iodized salt must not be used; calcium-enriched salt should be used as a regenerant.

50Tons of/The working procedure of the hourly oilfield softening water equipment

1. Water supply: Untreated water passes through the resin layer and undergoes an exchange reaction to produce soft water.

2. Backwashing: Water enters from the bottom of the resin layer, loosening the resin and removing fine debris.

3. Regeneration with brine: Utilize brine of a higher concentration(Nacl)Flowing through the resin, the exhausted resin is restored to the sodium form of usable resin.

4. Rinsing: According to the water supply process, water is passed through the resin to wash away the excess brine and the calcium and magnesium ions exchanged during regeneration. 5. Water injection: Fill the salt tank with water to dissolve the salt for the next regeneration.

50T/HHourly oilfield softening water equipment manufacturer

Softening water equipment can be said to be leading the progress of the water treatment industry. There are many manufacturers of softening water equipment. Some consumers may feel confused when choosing softening water equipment and not know which one they can buy with confidence.Beijing Yuanlai20yearsA dedicated water softening equipment manufacturer will help you choose the right water softening equipment for you.

Technical data from BeijingYuan LaiSoftened water equipment

Keywords: Steam boiler softening water equipment oilfield softening water equipment fully automatic softening water equipment softening water equipment
