Quartz sand filter, using quartz sand to filter impurities in water. Selection parameter table of quartz sand filter

Released Date: Nov 09,2016 Article Source: Yuanlai Water Treatment

The YLSS series quartz sand filter is a water treatment device that uses quartz sand as the filtering medium. Under certain pressure, water with high turbidity is filtered through a certain thickness of granular or non-granular quartz sand, effectively intercepting and removing suspended solids, organic matter, colloidal particles, microorganisms, chlorine, odor and some heavy metal ions in the water, making the water clear.

　　Quartz sand filter

one Product function

　　YLSSThe series of quartz sand filters use quartz sand as the filtering medium. Under certain pressure, water with higher turbidity is filtered through a certain thickness of granular or non-granular quartz sand, effectively intercepting and removing suspended solids, organic matter, colloidal particles, microorganisms, chlorine, odors and some heavy metal ions in the water, making the water clear. This equipment, in conjunction with other water treatment devices, is widely applied in water treatment for turbidity removal, water supply purification, circulating water purification, and pre-treatment of pure water. Depending on the different water production volumes, quartz sand of different mesh sizes (quartz sand particles of different diameters) needs to be equipped.

two.Quartz sand filterTechnical parameters

　　1. Processing effect

　　◆ Influent turbidity＜20FTUEffluent turbidity＜3FTU;

　　◆ Sewage interception capacity5-15Kg/m3(Filter material).

　　2. Operating parameters

　　◆ Operating pressure≥0.3Mpa

　　◆ Operation mode: Water flows from top to bottom.

　　◆ Filtration speed10-15m/h ;

　　◆ Backwashing method: water washing, or a combination of air and water for backwashing.

　　◆ Backwash water consumption1-3%;

　　◆ Backwash intensity4-15L/s·m2;

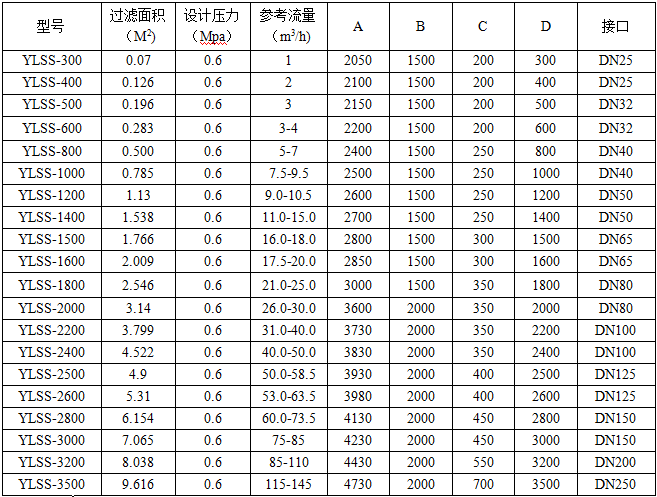

three.Quartz sand filterTechnical Selection Table

List of specifications and models of Quartz sand filters

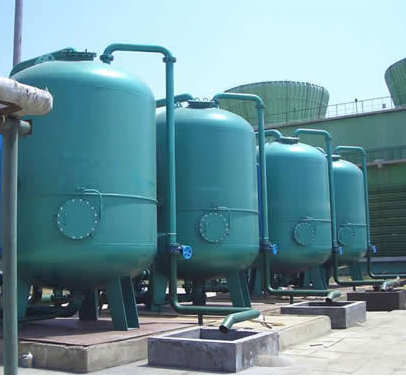

Multi-media filter.png

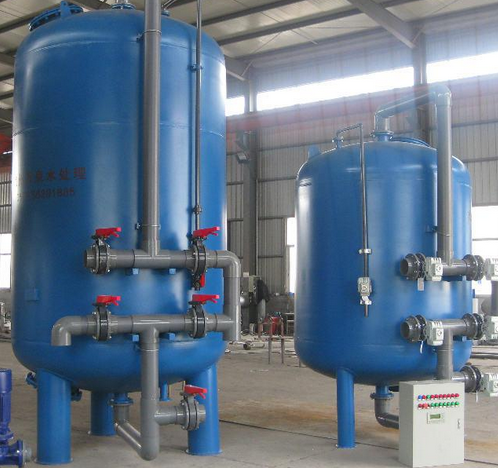

Multi-media filter002.png

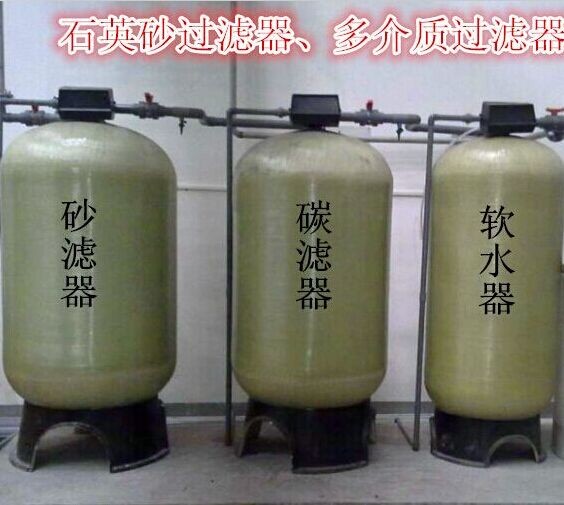

Multi-media filter003.jpg

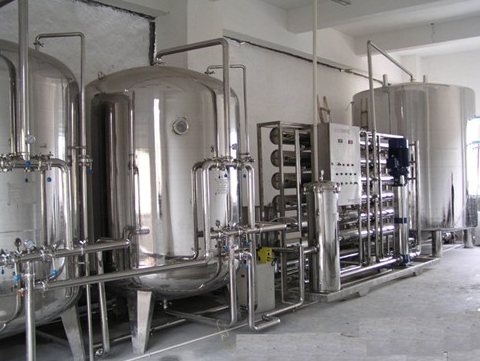

Activated carbon filter-06.png
