Technical parameters and applications of iron and manganese removal equipment and iron and manganese removal filters

Released Date: Nov 08,2016 Article Source: Yuanlai Water Treatment

The groundwater in our country contains excessive iron, with its content generally ranging from 2 to 16mg/ L. The YL series iron and manganese removal filter overcomes various problems caused by human operation, backwashing, etc. The iron content of the treated groundwater is ≤0.3mg/L, which meets the national GB5749-85 standard for drinking water. It is applicable to water supply systems in medium and small towns, rural areas, industrial and mining enterprises, industrial water use, softening and desalination processes, etc., which use groundwater as the water supply source.

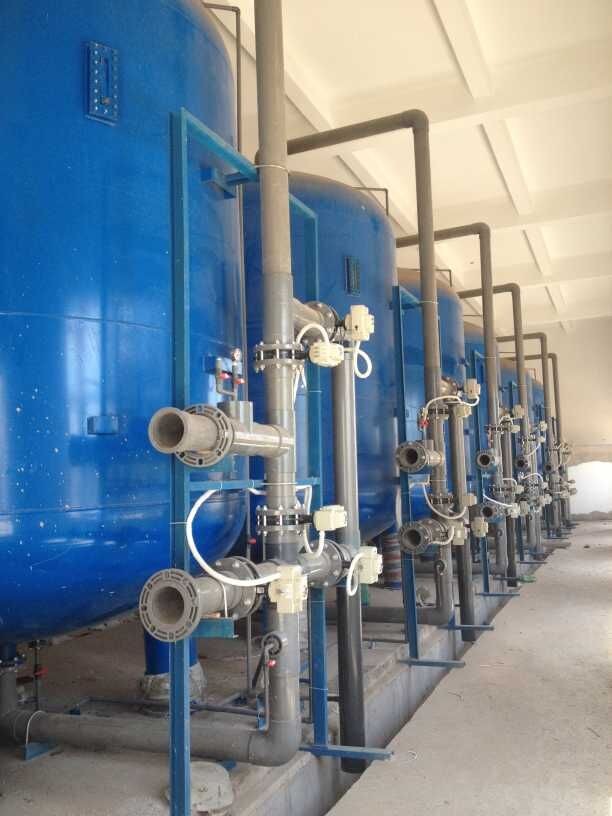

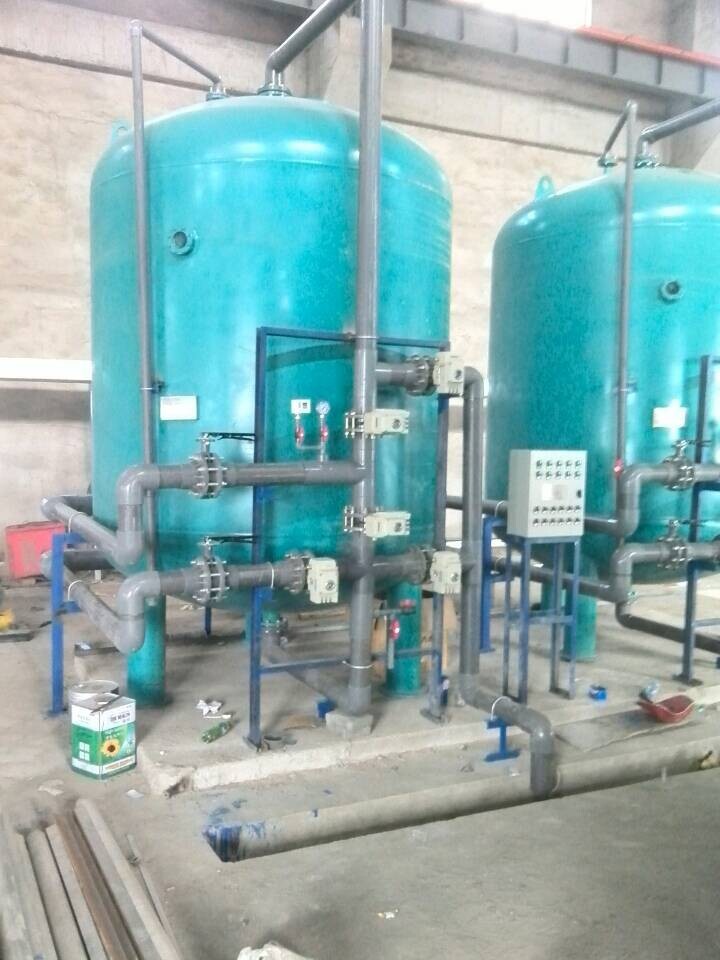

　　　Iron and manganese removal equipment

I. Overview of Iron and Manganese Removal Filters

　　The groundwater in our country contains excessive iron, and its content is generally within2-16mg/LScopeYLThe series of iron and manganese removal filters overcome various problems caused by human operation, backwashing, etc., and the iron content of the treated groundwater≤0.3mg/LIn line with national standardsGB5749-85Standards for drinking water.

　　Aeration for iron and manganese removal in water oxidizes divalent iron and divalent manganese from oxygen in the air to formFe(OH)3,MnO2Depending on the iron and manganese content in the water, jet aeration or hollow multi-faceted ball aeration should be selected. The iron content in the effluent can be met by using one or more stages of manganese sand filters for filtration0.3mg/LManganese content0.1m/lIt meets the national standards for drinking water.

Ii. Design Parameters of Iron and Manganese Removal Filters

　　1Applicable iron content in the influent①≤8mg/L,②＞8mg/L~≤16mg/L

　　2Iron content in the effluent:≤0.3mg/L In line with the countryGB5749-85Standards for drinking water quality in daily life

　　3Surface load8-9M3/H·M2

　　4Flushing intensity:14-16L/S·M2

　　5Rinsing duration:4-6mim(Adjustable

　　6Inlet water pressure0.05MPa

　　7Filter material: Specialized manganese sand for fine iron and manganese removal0.5~2mmParticle size

　　8Operating temperature5℃~40℃(Special temperatures can be customized

　　9Single-machine flow rate0.5m3/h-80m3/h

　　10Filtration speed:5m/h-12m/h

　　11Cylinder material:304,316L,Q235Rubber lining or epoxy coating

Iii. Iron and manganese removal filtersScope of application

　　It is applicable to water supply systems in medium and small towns, rural areas, industrial and mining enterprises, industrial water use, softening and desalination processes, etc., which use groundwater as the water supply source.

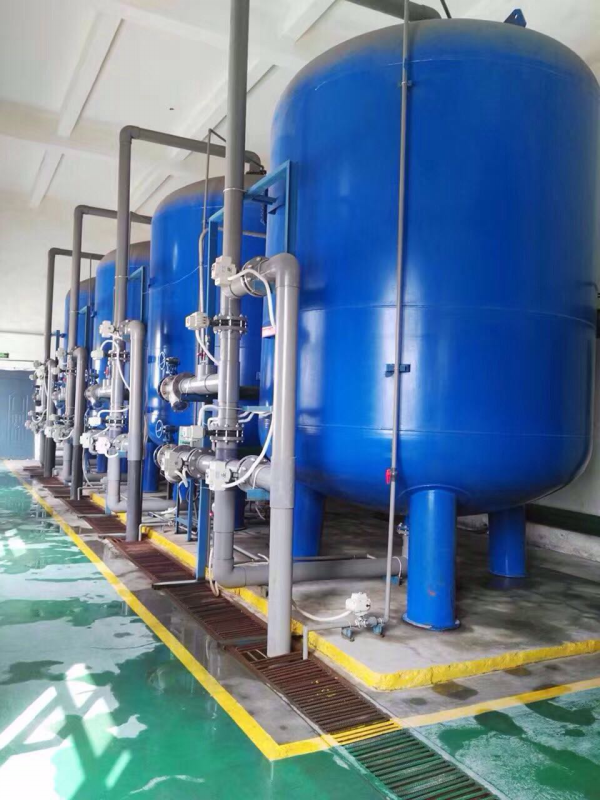

Multi-media filter.png
