"Water distribution" refers to the arrangement of water volume in a certain working area according to a certain rule. The common practice is to evenly distribute water on the working surface. The device that accomplishes this task is called a water distributor.In water treatment equipment, we often use water distributors in products such as sand filters, carbon filters, softeners, and cooling towers.

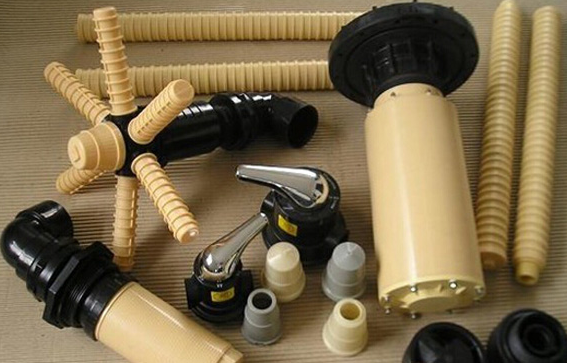

　　Common types of water distributors include perforated pipes, nozzles, filter heads and rotary water distributors. For instance, the distributor in a sand filter is composed of a main pipe-Branch pipe-It is composed of water distribution holes. On the lower side of each branch pipe, many small holes of equal spacing and diameter are evenly arranged. The backwashing water of the filter tank flows from the main pipe to the branch pipe and then flows out through the holes of the branch pipe to uniformly flush the filter sand upward. A rotary water distributor is a perforated pipe that can rotate and is also frequently used in water treatment.

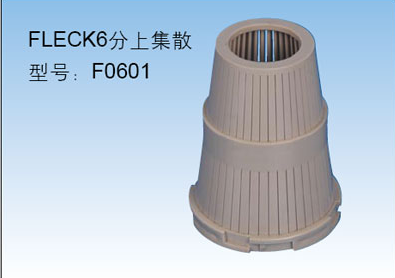

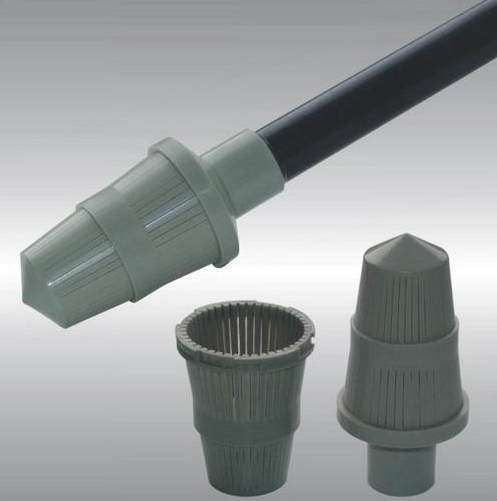

　　In water treatment,A commonly used water distributor in conjunction with a water softenerThe main products are: Fleck6It is divided into upper and lower distribution.1.05"Upper and lower distribution centers1.5"The upper and lower water distributors can be matched with various imported and domestic water treatment multi-way valves and manual valves.

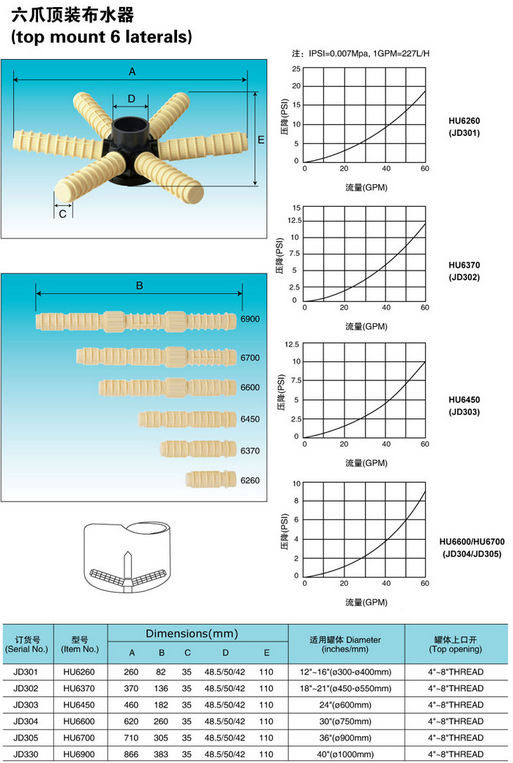

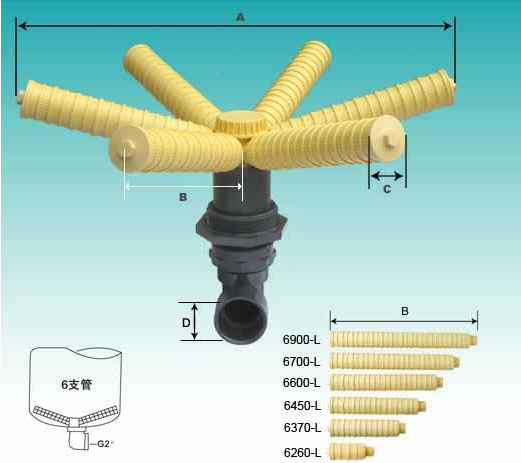

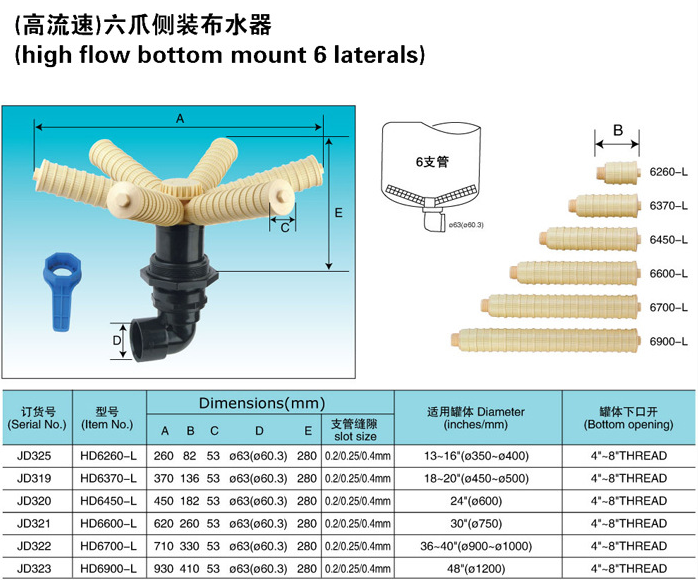

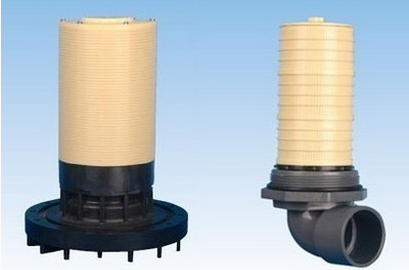

　　Six-claw, eight-claw and sixteen-claw types of upper and lower water distributors; 2"Threaded side-mounted upper and lower water distributors;3"Flanged side-mounted upper and lower water distributors... Wait a moment. It can be applied from the diameter150- Diameter2000Water treatment tanks of various specifications.

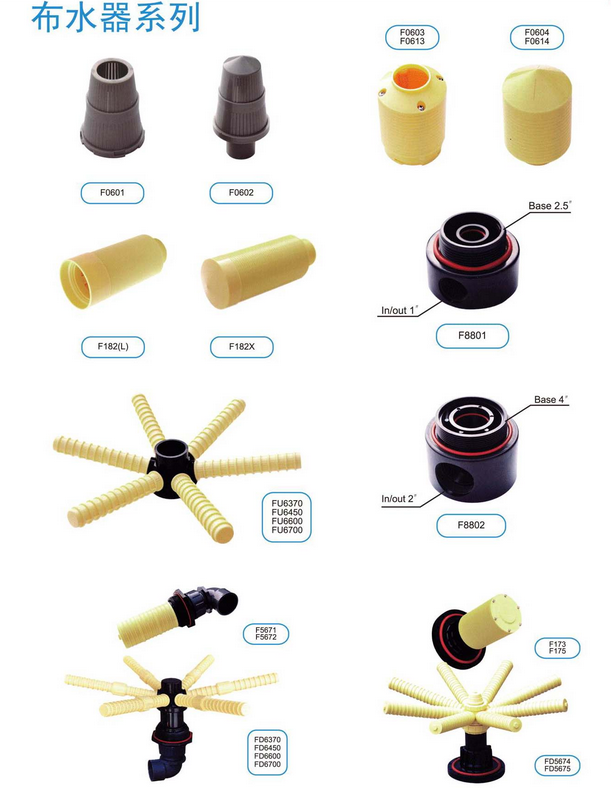

　　I. Common models of water distributors include:

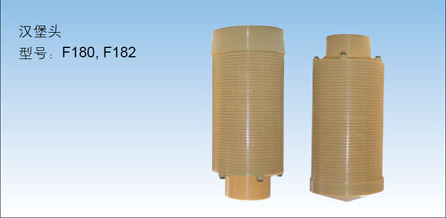

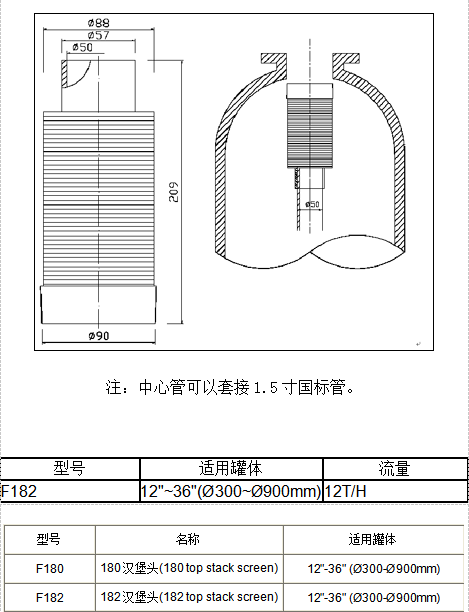

　　F0601,F0602,F0603,F0613,F0604,F0614,F182(L"F182(X)

　　FU6370　FU6450　FU6600　FU6700

　　Black Two-way communicationF8801:In/out1〞,Base2.5〞

　　F8802: In/out2〞,Base4〞

　　Upper water distributorF5671,F5672

　　Lower water distributorFD6370,FD6450,FD6600,FD6700,

　　F173,F175,FD5674,FD5675

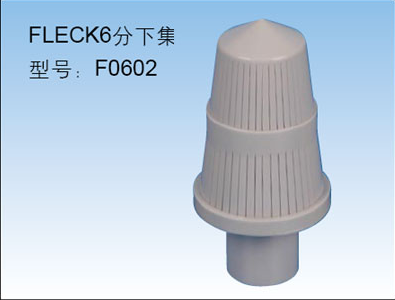

　　6The upper and lower water distributors are divided into Fleck

　　Specification3/4"26.7mm)

　　ApplicablePrevent the ion exchange resin of the water softener or the filter medium of the filter from being lost during rapid backwashing.

Ii.Installation of water distributors and pipes for water softening equipment

　　Water distributorThe water distributor and pipes are important components of water softening equipment. How to install them to ensure the normal operation of the water softening equipment? The following introduces the installation steps of the water distributor and pipes of the water softening equipment.

　　1"Use"PVCThe glue bonds the pipe to the water distributor seat together.

　　2Insert the bonded tubes into the resin tank.

　　3Tighten the branch pipe of the water distributor onto the water distributor base.

　　4After the water distributor is installed, the pipe should stand vertically in the exchange tank and then be placed above the tank opening planePVCCut off the pipe.

　　5Place the resin tank at the selected position. Bond the pipe and the lower water distributor firmly with adhesive. Insert the pipe into the resin tank with the lower water distributor facing down. The height of the pipe along with the height of the lower water distributor should be flush with the tank opening. Cut off the excess part of the pipe. Note that the upper opening of the pipe should be smooth and free of burrs. Take out the tube.

　　6Add the resin to the resin tank but do not fill it up. The reserved space is for the backwashing of the resin, with a height equal to that of the resin layer40%-60%Left and right.

　　7The upper water distributor is placed on the central pipe or first fixed at the bottom of the control valve. Note that no matter where the upper water distributor is placed, it should be ensured that it will not fall off and cause the resin to escape.

　　8Insert the core tube into the bottom of the control valve. Note: The tube passes through the insideOShape the ring and apply a lubricant that is insoluble in water before screwing it into the valve to avoid damaging the sealing ring. Fix the upper water distributor on the multi-way valve.

　　9Then insert the core tube along with the multi-way valve vertically into the resin tank. It is better not to tilt it. Then tighten the multi-way valve.
