Softened water equipmentIt is to use cation resin to soften the source water, with the main purpose of allowing the cation resin to adsorb calcium and magnesium ions in the water(The main components that form scale),Reduce the hardness of the source water,It can also carry out intelligent resin regeneration and be recycled.

　　Fully automatic water softening equipment can be classified into various series such as time-controlled type, flow-controlled type, and continuous soft water supply system type. It comes in multiple combination forms including single-valve single-tank, single-valve double-tank, double-valve double-tank in parallel, and large multi-valve multi-tank in series, meeting users' diverse water usage requirements.

　　Flow typeIt is a fully automatic regeneration controlled by the set flow rate. The flow rate can be set by oneself according to the different resin filling volume and water quality conditions.

　　Time typeThe time is converted based on the resin filling volume and water quality conditions in combination with the specific hourly demand, and the fully automatic regeneration is controlled by the set time.7Heaven or12The regeneration cycle can be set as needed within a day.24The regeneration time can be chosen at will within hours.

　　Series of fully automatic water softeners: They can be widely applied to the softening of make-up water in steam boilers, hot water boilers, exchangers, evaporative condensers, air conditioners, direct-fired machines and other systems. It can also be used for the treatment of domestic water in hotels, restaurants, office buildings, apartments, etc., as well as for softening water treatment in industries such as beverages, brewing, laundry, printing and dyeing, chemical engineering, and medicine.

The composition of an automatic water softener:

　　Imported control valveThe valve body is made of high-strength, lightweight and corrosion-resistant engineering plastic and lead-free brass.

　　Corrosion-resistant tankThe tank body is made of fiberglass reinforced plastic(Carbon steel or stainless steel lined with plastic tank bodies can be selected)The tank body is anti-corrosive, pressure-resistant and has a long service life.

　　Uniform water distribution systemBy adopting jet water distribution, the effective exchange capacity of the resin is fully utilized. The salt control is precise and there is no need for a salt pump.

　　Imported high-performance resinStrongly acidic cation exchange resin is selected, which features a low breakage rate, uniform particle size and enhanced ion exchange rate.

　　Installation of control valves and filling of resin in tanks

　　1Before filling, the lifting pipe (with the lower water distributor) should be placed in the resin tank below the tank opening0.5mmAt this point, cut off and guide the Angle (at this time, the lifting pipe opening should be sealed with tape to prevent resin from entering the lifting pipe).

　　2Pour the resin into the resin tank along the gaps around the lifting pipe and make it level at the bottom of the tank.

　　3Pour the processed resin into the resin tank along the periphery of the lifting pipe in accordance with the specified filling volume.

　　4The above operations should keep the lifting pipe always at the position of the resin tank opening.

　　5Remove the sealing tape of the lifting pipe.

　　6After installing the water distributor, align the socket of the controller with the lifting pipe, and carefully turn the control valve clockwise. (Note: During the installation of the control valve, make sure the lifting pipe is inserted into the valve body.) Tighten the control valve onto the interface of the tank.

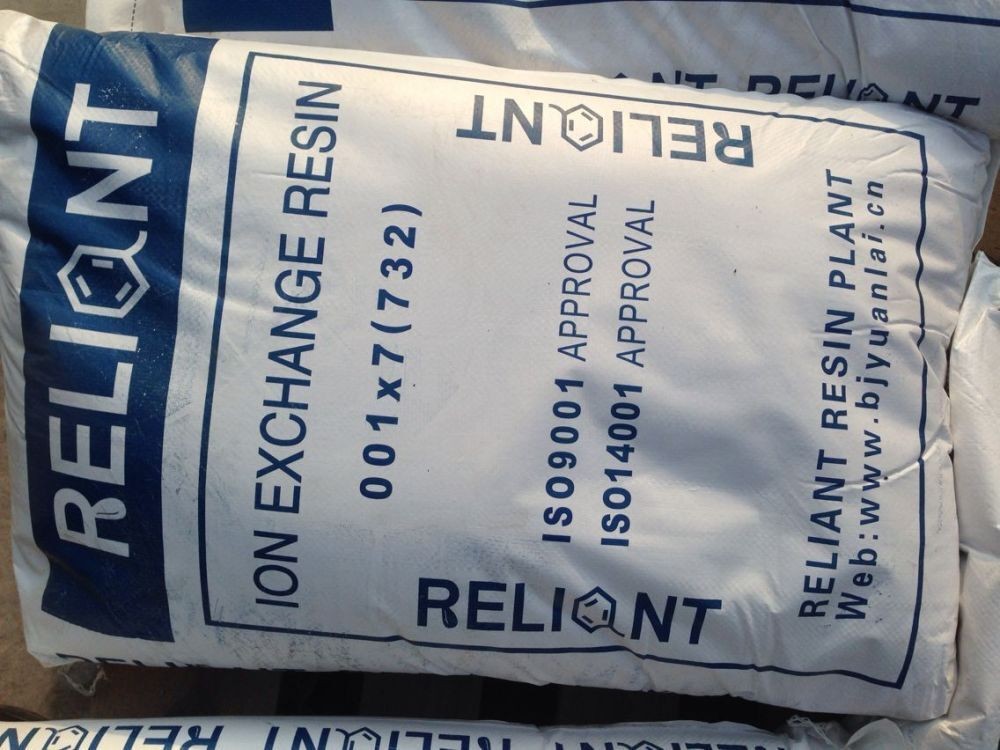

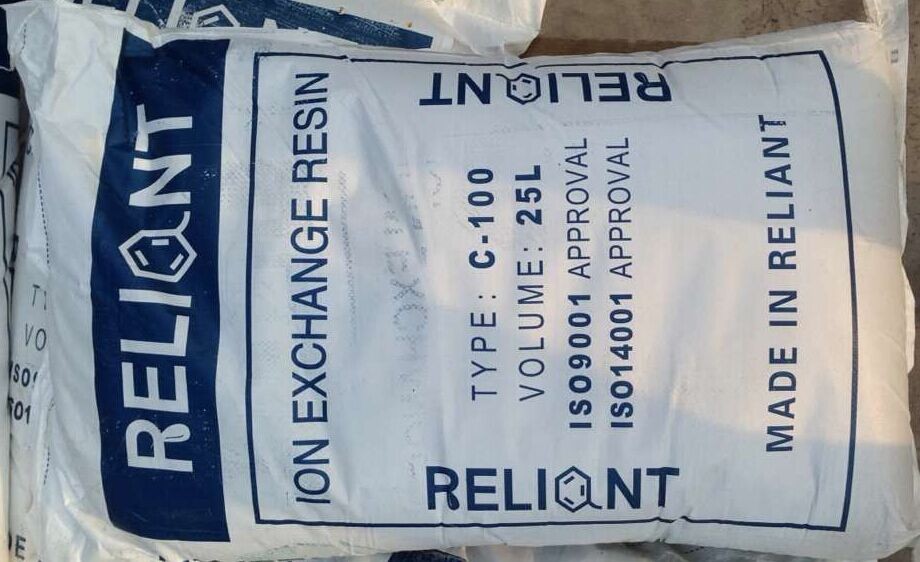

ReliantSoftening resin　　

　　001×7(732)Strongly acidic styrene-based cation exchange resin

　　Produced by our companyReliantThe softening resin is in styrene -=Sulfonic acid groups are attached to the polymer matrix of the ethylene-benzene copolymer cross-linked structure(-SO3H)The ion exchange resin has an acidity comparable to that of inorganic acids such as sulfuric acid and hydrochloric acid. It demonstrates ion exchange functionality in alkaline, neutral, and even acidic media. It features high exchange capacity, fast exchange speed and good mechanical strength.

I.Conditions of use

　　1.PHScope1-14

　　2.High operating temperature: Hydrogen type≤100°C    Sodium type≤120°C

　　3.Deformation expansion rate%:(H+-Na+)8-10

　　4.Regenerant concentrationNaCl:3-10%;HCl:4-5%;NaOH:4-5%

　　5.Regenerant dosageNaCl:(8-10%); Volume: Resin volume=1.5-2:1

　　HC1(4-5%)Volume: Resin volume=2-3:1

　　NaOH(4-5%); Volume: Resin volume=2-3:1

　　6.Regenerant flow rate5-8m/h

　　7.Regenerative contact time30-60min

　　8.Forward wash flow rate10-20m/h

　　9.Washing time: approximately30min

　　10.Operating flow rate10-40m/h

Ii.Product indicators

　　Serial number Indicator Name Indicator

　　1Moisture content%46-52

　　2Full switching capacity(mmol/g)4.52

　　3Wet visual density (g/ml)0.77-0.87

　　4Wet true density (g/ml)1.24-1.28

　　5Particle size(0.315-1.25mm)≥95

　　6Grinding sphericity rate%≥95

　　7The appearance is golden yellow spherical granules

　　Iii.Purpose

　　This product is mainly used for hard water softening, pure water preparation, hydrometallurgy, separation and extraction of rare elements, etc.
