　　Water softening equipment (water softenerIt is to use cation resin to soften the source water, with the main purpose of allowing the cation resin to adsorb calcium and magnesium ions in the water(The main components that form scale),Reduce the hardness of the source water,It can also carry out intelligent resin regeneration and be recycled.

　　Softened water equipmentProcess flow

　　1Work(Sometimes it is called water production, the same below)Backwashing, salt absorption(Regeneration)Slow rinse(Replacement)Five processes of quick rinse. All the processes of different water softening equipment are very similar. However, due to the differences in actual processes or control requirements, there may be some additional procedures. Any water softening equipment based on sodium ion exchange is developed on the basis of these five processes(Among them, the fully automatic water softening equipment will add a brine recharging process).

　　2BackwashingAfter working for a period of time, the equipment will intercept a lot of impurities brought by the raw water on the upper part of the resin. Only after removing these impurities can the ion exchange resin be exposed and the regeneration effect be guaranteed. The backwashing process involves water being washed in from the bottom of the resin and flowing out from the top, which can wash away the dirt trapped at the top. This process usually requires5-15About a minute.

　　3Salt absorption(Regeneration)The process of injecting brine into the resin tank is that traditional equipment uses a salt pump to inject brine, while fully automatic equipment uses a dedicated built-in injector to draw in the brine(As long as there is a certain pressure in the incoming water, that's it Can be). In the actual working process, the regeneration effect of salt water flowing slowly through the resin is better than that of simply soaking the resin in salt water. Therefore, water softening equipment all adopt the method of salt water flowing slowly through the resin for regeneration. This process generally requires30It takes about minutes, but the actual time is affected by the amount of salt used.

　　4Slow rinse(Replacement):After the salt water flows through the resin, the process of slowly rinsing all the salt in the resin with the original water at the same flow rate is called slow rinsing. Since a large number of calcium and magnesium ions on the functional groups are still exchanged with sodium ions during this rinsing process, based on practical experience, this process is the main process of regeneration, so many people call this process displacement. This process usually takes the same amount of time as salt absorption, that is30About a minute.

　　5Quick rinseTo thoroughly rinse off the remaining salt, the resin should be flushed with raw water at a flow rate close to the actual working condition. The effluent from this process should be qualified soft water. Under normal circumstances, the quick rinse process is5-15Minutes.

　　1Users can choose manual control systems according to their conditions to save costs.

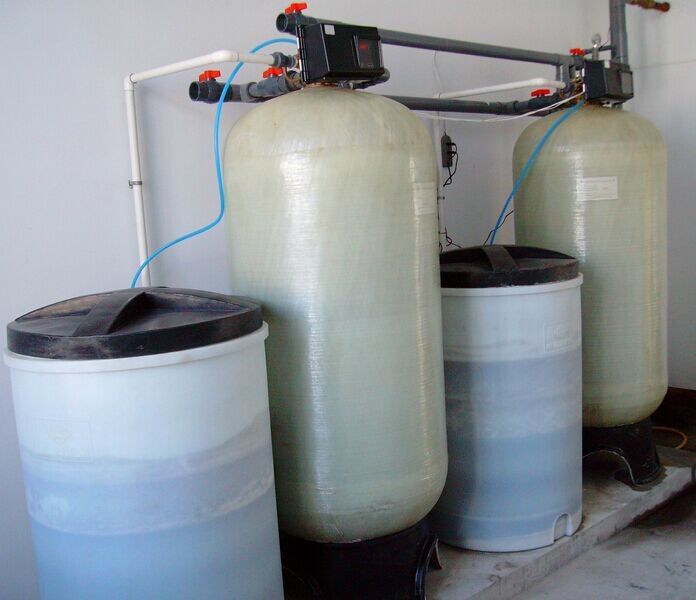

　　2If the user24The continuous water usage for hours can be alternately regenerated according to the water usage time,One on standby and one in use.

　　3Users can also configure a multi-media filter for the first stage according to the water quality requirements,It is used to remove sediment, rust, colloids and suspended solids from water. The secondary configurable activated carbon filter is used to remove pigments, odors, biochemical organic matter in water, and reduce the residual chlorine value and pollution in water. Three-level configuration of water softening equipment.

　　4The effluent quality meets the standards for water supply for air conditioning and boiler heating.

　　5Time control-Timing type; Flow control-Metering type. In terms of operation, various combination methods such as single tank, double tank and multiple tanks are adopted. When making a selection, users can choose according to their needs. In terms of operation, this product not only has the function of automatic operation but also can be operated manually.

　　6Technical indicators and job requirements:

　　Inlet water pressure0.18-0.6Mpa

　　Operating temperature1-55℃

　　Source water hardness<8mmol/L

　　Operation mode: Automatic/Manual

　　Effluent hardness≤0.03mmol/L

　　RegenerantNaCL

　　Regeneration method: Downstream flow/"Countercurrent"

　　Exchanger001*7Strongly acidic ion exchange resin

　　Control method: Time/"Traffic"

　　Working power supply220V/50Hz
