Workflow chart of water purification equipment

Released Date: Aug 25,2015 Article Source: Yuanlai Water Treatment

The working principle of the water purification equipment of Beijing Yuanlai Water Treatment Company is to purify tap water or other raw water to make the water quality of the output reach a certain standard. Common post-purification equipment not only includes small household water purifiers, but also in areas with poor water quality, difficult drinking water, and large population, where domestic water use is affected, it is difficult to solve the problem with just one water purifier. At this time, large-scale water purification machines can come in handy. The process flow of large-scale purification water machines: raw water → Raw water tank → Raw water pump →" Mechanical filter →" Activated carbon filter →" Scale inhibition/softening → Security filter →" High-pressure pump →" Reverse osmosis →" Pure water tank →" Transfer pump →" Water usage point.

　　Process flow of large-scale purification water machine

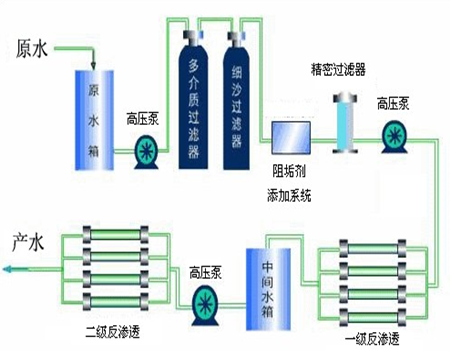

Reverse osmosis industrial process

　　Raw water→Raw water tank→Raw water pump→Mechanical filter→Activated carbon filter→Scale inhibition/Softening→Security filter→High-pressure pump→Reverse osmosis→Pure water tank→Transfer pump→Water usage point.

　　Process description of water purification treatment equipment

　　1. Mechanical filter

　　It is mainly used to remove sediment, rust, algae, suspended solids and other impurities from water. Reduce water turbidity to make the effluent turbidity less than0.5NTU.

　　2. Activated carbon filter

　　Activated carbon has extremely strong adsorption and filtration performance and can effectively adsorb residual chlorine, discoloration, odor, organic matter and other substances in water.

　　3. Reverse osmosis device

　　Reverse osmosis technology is currently a very mature desalination technology and also a widely applied water treatment process with a broad range of uses in the market. It can precisely filter out viruses, metal ions, salts and various carcinogens in water. It features low working pressure, large water production, high desalination rate and is easy to maintain. Designing an automatic flushing device can extend its service life.

　　4.Ozone generator

　　Ozone dissolves in water and has a long-lasting ability. It has a long lifespan, good effect, low power consumption, does not pollute water quality, and leaves no residue. It is currently the most widely used method in the production of pure water.

　　The above merely briefly describes four relatively important parts of the equipment. The water purification treatment equipment is applied in industries such as pure water, direct drinking water in residential areas, beverages, beer, brewing, dairy, and seawater desalination, and has received unanimous praise from users for its technology.
