Beijing Yuanlai, a strong launch of Dow membranes from the United States, meets the demands of various industries!

Released Date: Aug 15,2016 Article Source: Yuanlai Water Treatment

For many years, Dow has been committed to improving FILMTEC reverse osmosis membrane technology. Dow RO reverse osmosis membrane elements feature a stable high desalination rate, are easy to clean, and come in a complete range of models, suitable for various water treatment projects with different water qualities and quantities. Several commonly used Dow RO reverse osmosis membranes nowadays, such as BW30-400, BW30-365, BW30-400IG, BW30-365IG... Wait a moment. The application of Dow membrane products in the United States: Dow membranes are widely used in fields such as power, petrochemical, steel, electronics, medicine, beverages, municipal and environmental protection. They play a significant role in seawater and brackish water desalination, boiler feed water, industrial pure water and electronic-grade ultra-pure water preparation, drinking pure water production, wastewater treatment and special separation processes. The usage conditions of Dow membrane elements in the United States: Dow FILMTEC membrane elements come in different models, each designed for different applications and usage conditions: XLE ultra-low energy consumption (pressure) reverse osmosis elements are mainly used for commercial purposes

　　 Dow Membrane trademark.png

For many years, Dow has been committed to improvementFILMTECReverse osmosis membrane technology not only increases the total volume of water treatment per unit but also reduces the energy consumption of global seawater desalination and wastewater reuse projects.

　　The application of Dow membrane products in the United States:

　　Dow membranes are widely used in fields such as power, petrochemicals, steel, electronics, medicine, beverages, municipal services and environmental protection. They play a significant role in seawater and brackish water desalination, boiler feed water, industrial pure water and electronic-grade ultrapure water preparation, drinking purified water production, wastewater treatment and special separation processes.

　　Usage conditions of Dow membrane elements in the United States:

　　Dow FILMTEC Membrane elements come in different models, and each model is designed for different applications and usage conditions:

　　XLE Extremely low energy consumption ( pressure ) Reverse osmosis elements are mainly used in commercial or large-scale municipal water treatment.

　　LP The low-pressure reverse osmosis element is a new generation of commercial low-pressure reverse osmosis membrane elements with high desalination rate.

　　TW30 The standard low-pressure reverse osmosis membrane elements wrapped with tape are mainly used in commercial reverse osmosis systems with high desalination rates where the feed water is tap water.

　　BW30 FRP wound standard low-pressure brackish water reverse osmosis membrane elements are mainly used in multi-unit series high desalination rate reverse osmosis systems.

　　BW30LE Low-energy consumption brackish water reverse osmosis elements.

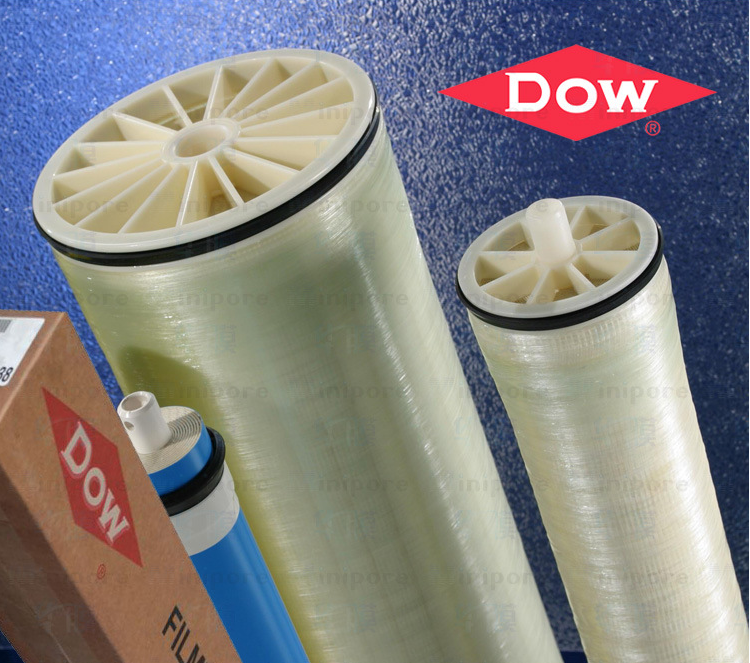

　　 Large image of Dow membrane001.png

Beijing Yuanlai Water Treatment Equipment Co., Ltd. mainly sellsAs followsDow membrane series products

　　•Household tap waterTWSeries membrane elements

　　• Low pressure LPSystem membrane element

　　• Brackish water BWSeries membrane elements

　　• Anti-pollution FRSeries membrane elements

　　• Desalination of seawater SWSeries membrane elements

Product Classification

　　Dow industrial-grade brackish water membrane elements　 Dow semiconductor-grade membrane elements

　　DowDOWOther membrane elements 　　 Dow low-energy membrane elements

　　Dow grade membrane elements　　 Dow brackish water film element

　　Dow water membrane elements　　 DowDOWAnti-pollution membrane

　　DowDOWNanofiltration membrane 　　 Dow seawater membrane element

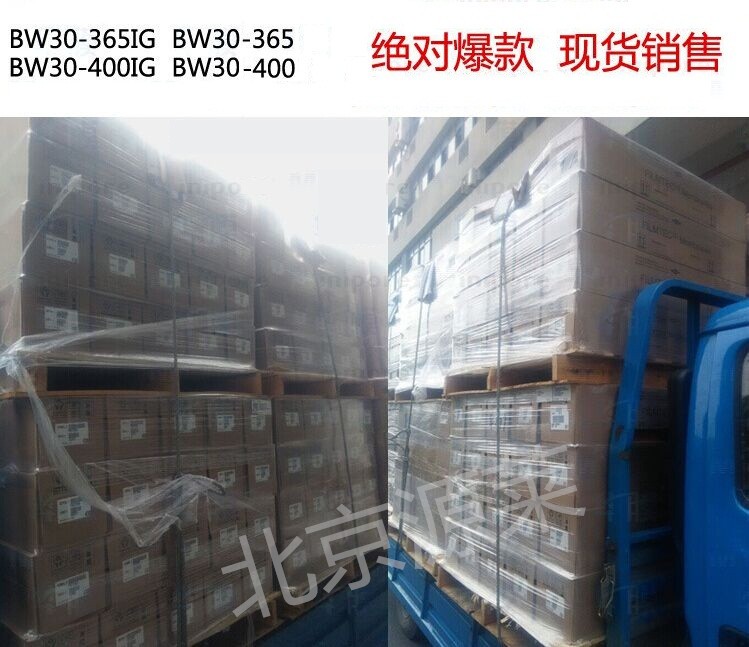

　　 Pictures of Dow membrane arrival(After revision_Copy.jpg

DowROReverse osmosis membrane elements feature a stable high desalination rate, are easy to clean, and come in a complete range of models. They are suitable for various water treatment projects with different water qualities and quantities. Several commonly used Dow types nowadaysROReverse osmosis membranes, such asBW30-400,BW30-365,BW30-400IG,BW30-365IG... Wait a moment. Here's an introduction:

　　1DowBW30-400Brackish water desalination reverse osmosis membrane

　　DowBW30-400The nominal effective membrane area of the membrane element is 400 Square feet, water production under standard test conditions 40m 3 /d(10,500 gpd) Its outer diameter is in line with other standards 8 The inch components are the same.

　　BW30-400 It is improved by increasing the membrane area rather than by increasing the membrane flux and feed water pressure With a high water output, it can maintain a very low fouling rate, thereby maintaining a long-term high water output and prolonging the service life of membrane elements. This component operates at a low pressure, enhancing the economic efficiency of the system's operation. Increased membrane areaBW30-400 It can be newly designed RO The system uses fewer components, making it more compact and saving installation costs .

　　2DowBW30-365Brackish water desalination reverse osmosis membrane

　　Dow reverse osmosis membraneBW30-365The effective membrane area is as high as365Square feet, water production under standard test conditions36m3/d(9500gfd). "UseFRComponents: Users can achieve the designed water production volume with only a few components. This makes the system more compact and reduces the cost of system accessories and installation.

　　Dow reverse osmosis membraneBW30-365andBW30-365FRThe water production capacity and desalination rate are both the same. Therefore, in engineering renovations, it is usedBW30-365The components can reduce system fouling, lower the operating pressure of the system and extend the service life of the membrane elements.

　　3DowBW30-400IGBrackish water desalination reverse osmosis membrane

　　DowBW30-400 IGIt's Dow.FILMTECNewly launched into the market8040One of the series of membrane elements, original from Dow, USAroMembranes are used to meet the requirements of commercial customers for high water production quality and low total system cost. This membrane features anti-pollution, high desalination and high water production.

　　BW30-400IGThe water production capacity of the membrane element under standard test conditions is40Tons of/On this day, it increases water production by expanding the membrane area rather than by membrane flux and feed water pressure, thus maintaining a very low fouling rate, thereby sustaining long-term high water production and prolonging the service life of membrane elements. This component operates at a low pressure, enhancing the economic efficiency of the system's operation.

　　4DowBW30-365IGBrackish water desalination reverse osmosis membrane

　　BW30-365IGDow membranes increase water production not by enhancing membrane flux or increasing operating pressure but by expanding membrane area. Therefore, they can maintain a very low fouling rate, thereby sustaining long-term high water production and extending the lifespan of membrane elements. At the same time, its operating pressure is low, which improves the economic efficiency of the system operation.BW30-365IGThe high effective area enables the new designROThe system uses fewer components, making it compact and saving installation costs.

　　When renovating the old systemBW30-365IGIt can reduce the operating pressure of the system, decrease the clogging of components and extend the service life of components. When replacing with this component, the water production capacity of the original system can be increased without expansion. Or the original water production volume can be maintained while reducing the external dimensions of the device.

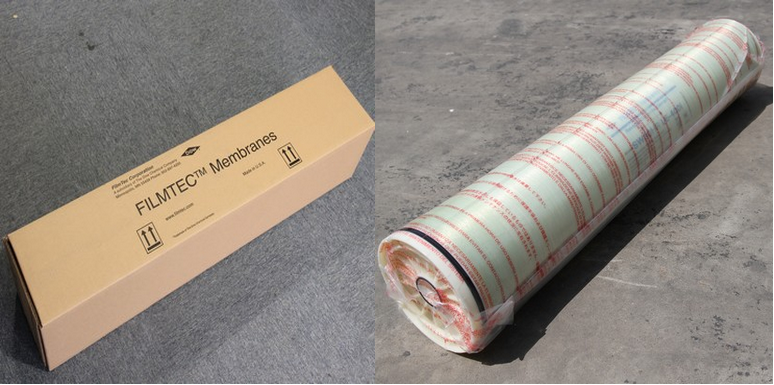

8Inch Dow membrane03figure.png
