As time goes by, winter gradually approaches. A very important heating device - the water softener (water softener), can bring us warmth and help us withstand the cold winter. The process flow of water softening equipment (water softener) involves many aspects, andThe entire equipment process may vary depending on the local water quality and the different uses of waterButThe processes of all water softening equipment are very similar, all of themWater softening equipment (water softenerAny equipment that uses sodium ion exchange as the basis for water treatmentfrom5It has developed from this process flow.Now let's introduce this5The conventional working process of a water softening device (water softener).

1"Produced water"

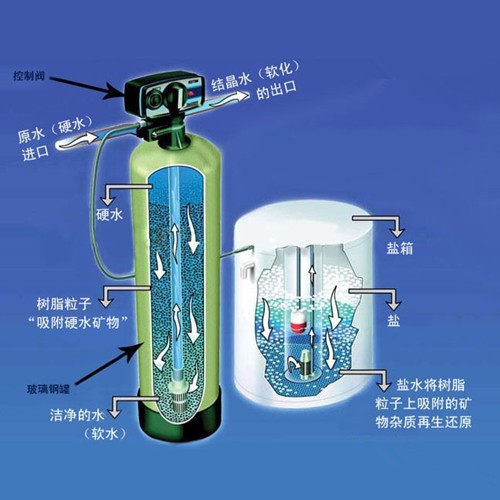

This process involves raw water (hard water) passing through the control valve inlet and entering the resin tank filled with softening resin. Through ion exchange, calcium and magnesium ions in the water are exchanged with ions in the resin, thereby reducing the water hardness to an appropriate standard. Then, the required crystalline water (softened water) is discharged through the control valve outlet.

2,Backwash

This is because during the long-term operation of the equipment, a large amount of pollutants brought by the raw water will adhere to the resin. The backwashing work is to remove these pollutants. Only by removing these pollutants can the resin be exposed to the raw water and then better complete the regeneration exchange. The entire backwashing process involves water entering from the bottom of the resin and then flowing out from the top to wash away the contaminants retained from the raw water.

3,Resin regeneration

This process is one of injecting brine into the interior of the exchange resin tank. Traditional resin exchange equipment uses a salt pump to inject brine. The fully automatic equipment uses an internal spray device to draw in salt water. In actual production work, the regeneration effect of slowly flowing brine over the resin surface is better than that of directly immersing the resin in brine. Therefore, most of the current equipment adopts the regeneration method of slowly flowing brine over the resin surface. The entire process takes approximately30About a minute.

4,Slow rinse

After the regeneration operation is carried out, the salt in the resin is completely washed away with brine at the same water flow rate. This process is called slow rinsing. This process is carried out simultaneously with the regeneration process and is the main process in the regeneration stage. Many people call this process replacement. The time used for this process is generally within30About a minute.

5,Quick rinse

This operation is aimed at thoroughly cleaning the salt remaining in the resin. The water flow rate used in the operation should be approximately the same as that used in normal production work. The resin is rinsed with raw water. The water produced in this process should be of the same quality as the qualified soft water used in normal times. Generally, the time required for this operation is10-15About a minute.

Above5A regular water softening device (water softener)If you encounter any problems during the operation of the water softening equipment (water softener), please consult Beijing Yuanlai Water Treatment Equipment Co., LTD.15With years of focus on the water treatment industry, you can trust us!
