Product IntroductionBeijingUltra-pure water equipment, ultra-pure water equipment, Beijing ultra-pure water machine

　　Main uses

　　High-purity water for the production of microelectronic products, ultra-pure water for the semiconductor and picture tube manufacturing industries, ultra-pure water for cleaning integrated circuit board production, and water for the production of storage batteries, lithium batteries, solar cells, dry batteries, etc.

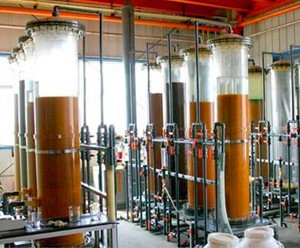

　　Process Flow One: Reverse Osmosis+Mixed bed

　　Process Flow Two: Reverse Osmosis+EDIEquipment

　　1.An overview of Ultrapure Water in the Electronics Industry

　　Semiconductors, integrated circuit chips and packaging, liquid crystal displays, high-precision circuit boards, optoelectronic devices, various electronic devices, microelectronics industry, large-scale and very large-scale integrated circuits require a large amount of pure water, high-purity water and ultra-pure water to clean semi-finished and finished products. The higher the integration degree of integrated circuits, the narrower the line width, and the higher the requirements for water quality. At present, the Ministry of Electronics Industry of our country classifies electronic-grade water quality technology into five industry grades, namely18MΩ.cm,15MΩ.cm,10MΩ.cm,2MΩ.cm,0.5MΩ.cmTo distinguish different water qualities.

　　2.The process flow for preparing ultrapure water for the electronics industry

　　The processes for preparing ultrapure water in the electronics industry can be roughly divided into the following3Seed

　　1The traditional water treatment method for preparing ultra-pure water for the electronics industry using ion exchange resins has the following basic process flow: raw water→Multi-media filter→Activated carbon filter→Precision filter→Middle water tank→Yang bed→"Yin bed"→Mixed bed (double bed→Ultra-pure water tank→Ultra-pure water pump→Rear security filter→Water usage point

　　2The basic process flow for preparing ultra-pure water for the electronics industry by combining reverse osmosis water treatment equipment with ion exchange equipment is as follows: raw water→Multi-media filter→Activated carbon filter→Precision filter→Middle water tank→Reverse osmosis equipment→Mixed bed (double bed→Ultra-pure water tank→Ultra-pure water pump→Rear security filter→Water usage point

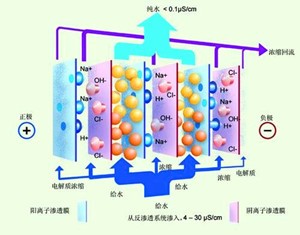

　　3Adopt reverse osmosis equipment and electro-deionizationEDIThe method of preparing ultra-pure water for the electronics industry by combining equipment is a new process for producing ultra-pure water and also an environmentally friendly, economical and highly potential ultra-pure water preparation process. Its basic process flow is: raw water→Multi-media filter→Activated carbon filter→Precision filter→Middle water tank→Reverse osmosis equipment→Electro-deionizationEDI)→Ultra-pure water tank→Ultra-pure water pump→Rear security filter→Water usage point

　　3.Features of ultra-pure water equipment for the electronics industry

　　Ultra-pure water equipment for the electronics industry is typically composed of a pretreatment system made up of multi-media filters, activated carbon filters, sodium ion softeners, precision filters, etc.ROReverse osmosis main unit system, ion exchange mixed bedEDIThe main equipment system is composed of the electro-deionization system, etc. Raw water tank, intermediate water tankROBoth the pure water tank and the ultrapure water tank are equipped with liquid level control systems. Both the high and low pressure water pumps are provided with high and low pressure protection devices, online water quality detection and control instruments, and electrical systems are adoptedPLCThe programmable controller truly achieves unattended operation. Meanwhile, in terms of process material selection, it adopts a method that unifies the recommended and customer requirements, making this equipment have a higher cost performance and equipment reliability compared with other similar products.

　　4The application fields of ultrapure water in the electronics industry

　　1Ultra-pure water for semiconductor materials, devices, printed circuit boards and finished and semi-finished integrated circuits.

　　2Ultra-pure water for blending ultra-pure materials and ultra-pure chemical reagents.

　　3Ultra-pure water is used in laboratories and pilot plants.

　　4Polishing treatment of surfaces for automobiles and household appliances.

　　5Optoelectronic products.

　　6Other high-tech and micro products.
