Introduce the principles of the five working states of water softening equipment (water softener) with pictures and text

Released Date: Nov 06,2015 Article Source: Yuanlai Water Treatment

Today, Beijing has witnessed the first snowfall of 2015. After a night of cold wind, the ambient temperature has dropped to 1℃. The boiler water softening equipment (water softener) has gradually become the main source of warmth for us. To ensure its continuous heating for us, it is necessary to have a further understanding of it. Below, we will introduce five working states of the water softening equipment (water softener) with pictures and text. The raw water of the softening water equipment enters the control valve through the water inlet, passes through the valve body from the upper part of the valve core, and then enters the tank from the top (or the outside of the resin tank pipe, the same below). Then, it passes downward through the resin layer (this is softening, and in purification, it is the carbon layer, etc., the same below), becoming softened water. It then flows through the return pipe of the lower distributor, upward through the valve body, and is discharged from the outlet of the softened water equipment after passing through the valve core. 2. The raw water for the salt absorption slow wash state softening water equipment enters from the water inlet

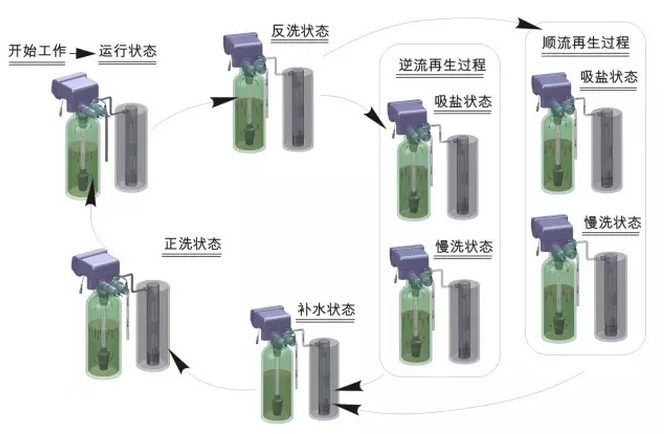

Today, the city of Beijing is welcoming2015After a year of heavy snowfall and a night of cold wind, the ambient temperature has dropped1℃Boiler water softening equipment (water softenerIt has gradually become the main character that brings us warmth. To ensure its continuous heating for us, it is necessary to have a further understanding of it. The following is an introduction with pictures and textWater softening equipment (water softener))5The principle of the working state.

1,Operating status

The raw water of the softened water equipment enters the control valve from the inlet, passes through the valve body from the upper part of the valve core, and then from the top(Or the outer side of the resin tank tube, the same below)Enter the tank. Then, pass it down through the resin layerIt becomes softened water, passes through the return pipe of the lower distributor, rises to the valve body, and then is discharged from the outlet of the softened water equipment after passing through the valve core.

2Slow wash with salt absorption

The raw water of the softened water equipment enters the control valve from the water inlet, passes through the valve core and enters the inlet of the nozzle, and then flows rapidly to the outlet of the nozzle, generating negative pressure. Thus, the brine in the salt tank is sucked into the valve body from the salt suction port and enters the top of the tank. The brine flows downward through the resin layer, passes through the lower distributor, ascends along the pipe, and is discharged from the drain port of the water softening equipment after passing through the valve body and valve core.

3Backwash status

After the water softening equipment has drawn up all the brine, the raw water continues to enter the control valve through the inlet, passes through the valve core into the nozzle, flows through the nozzle, passes down through the resin layer, and then goes up along the pipe through the lower distributor into the valve body and valve core before being discharged from the drain port of the water softening equipment.

4"Hydration status"

The raw water of the softened water equipment enters the control valve from the water inlet, passes through the valve core into the outlet of the spray nozzle, and is injected into the salt tank from the salt suction port;Another part of the water flows through the outlet of the nozzle, through the small hole of the nozzle to the inlet of the nozzle, and after passing through the valve body and valve core, the sewage of the water softening equipment flows out from the drainage outlet.

5In the process of being washed

The raw water of the softened water equipment enters the control valve through the water inlet, passes through the valve body from the upper part of the valve core, and then enters the tank from the top. Then, it passes downward through the resin layer, through the return pipe of the lower water distributor, upward through the valve body, and is discharged from the drain port of the water softening equipment after passing through the valve core.

The above isWater softening equipment (water softener))5This working state principle. If you encounter any problems during operation, please consult Beijing Yuanlai Water Treatment Equipment Co., LTD.15With years of focus on the water treatment industry, you can trust us!
