Beijing Yuanlai Water Treatment19We have been dedicated to the water treatment industry for many years and offer a full range of water treatment products. From a complete set of water treatment equipment: water softening equipment, automatic water softeners, large-scale reverse osmosisROEquipmentEDIHigh-purity water systems, filter equipment, ultrafiltration equipment, small-scale water purification equipment, dosing systems, etc...

One-stop purchase of water treatment components, consumables and other items for supporting equipment.

We provide comprehensive and excellent one-stop supporting services for water treatment projects in various industries: pre-sale consultation+After-sales service Installation, commissioning and technical training of water treatment systems!

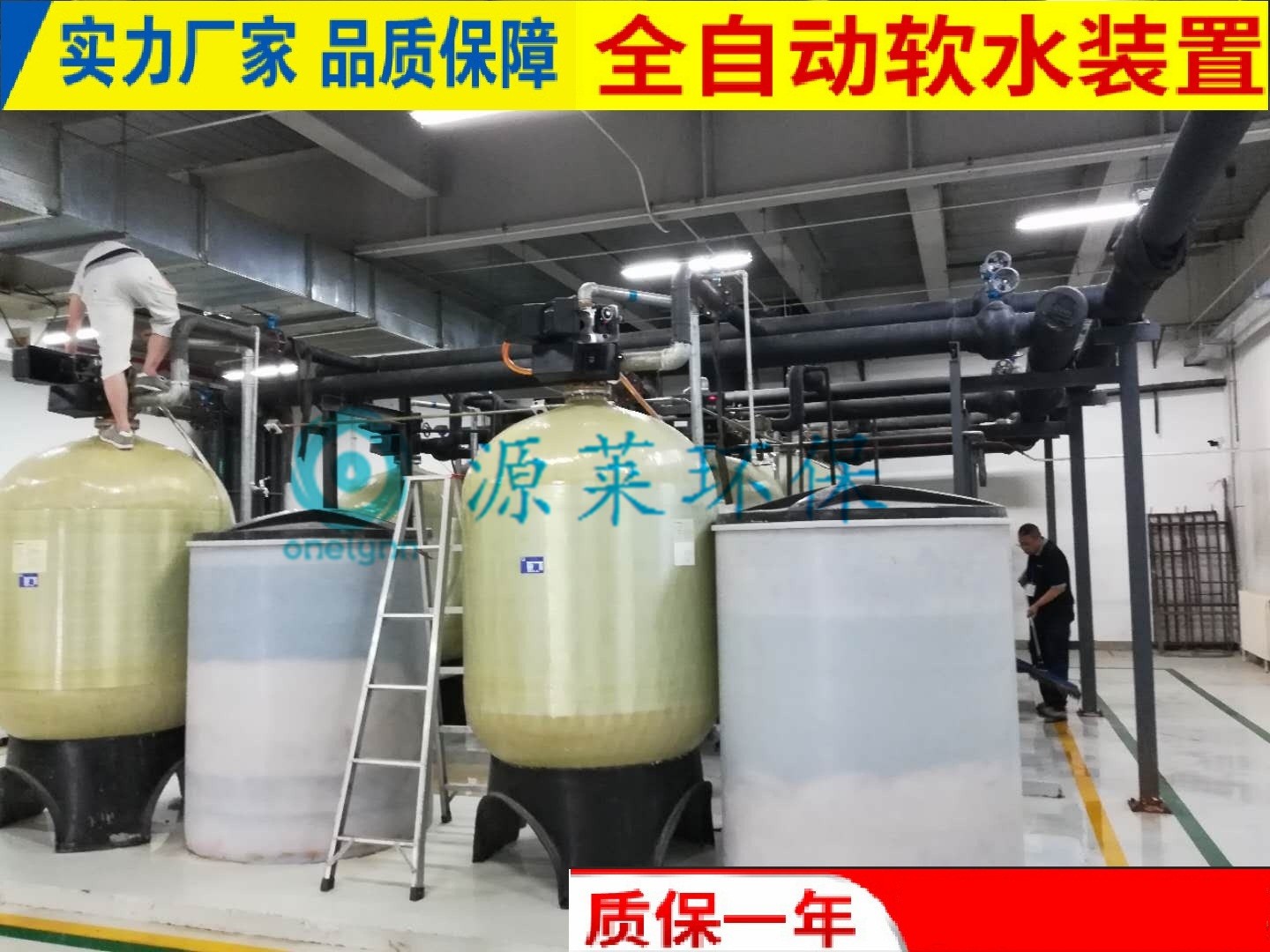

Fully automatic water softenerAlso known as: water softening treatment deviceSoftened water equipment"Water softenerSoftened water treatment equipmentWater softener.

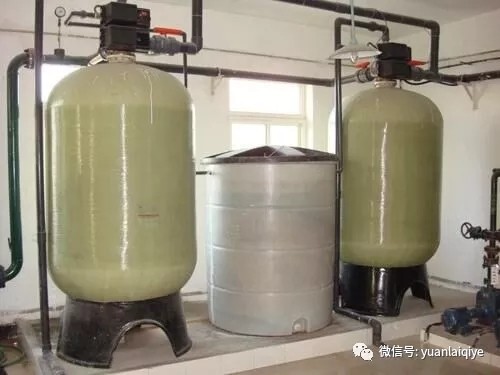

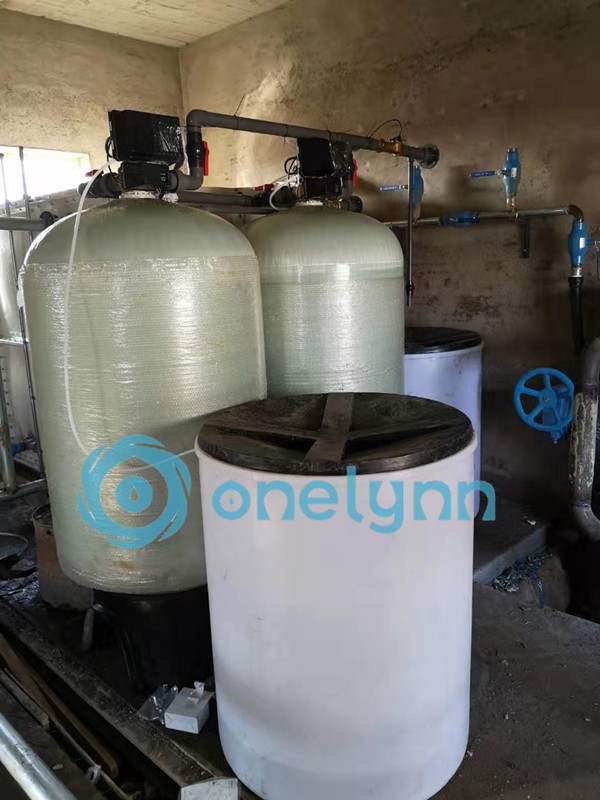

      The water softener equipment is composed of a fully automatic water softener controller, resin tank (generally fiberglass reinforced plastic resin tank and stainless steel resin tank), strong acid type sodium ion cation resin, salt tank and accessories, forming a complete set of equipment.

Imported control valve: The valve body is made of high-strength, lightweight and corrosion-resistant engineering plastic and lead-free brass.

　   Corrosion-resistant tank: The tank is made of fiberglass reinforced plastic(Carbon steel or stainless steel lined with plastic tank bodies can be selected)The tank body is anti-corrosive, pressure-resistant and has a long service life.

　   Uniform water distribution system: It adopts jet water distribution, allowing the effective exchange capacity of the resin to be fully utilized. The salt control is precise and there is no need for a salt pump.

　   Imported high-performance resin: Strong acid cation exchange resin is selected, with low breakage rate, uniform particle size, and improved ion exchange rate.

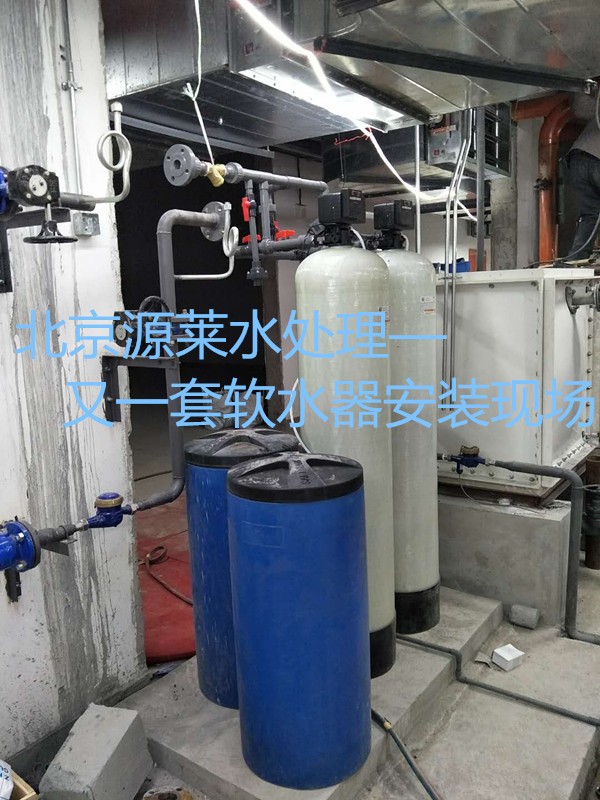

I. Installation Requirements for Water Softeners

1The water softener should be installed on a solid cement platform, and a drainage ditch should be provided nearby.

2The salt tank should be placed close to the resin tank and the length of the salt suction pipe should be shortened as much as possible.

3The ambient temperature must not be lower than2℃Or higher50℃;

4When the water softener is directly connected to the heating equipment, it should be maintained3For pipe sections over a meter long, check valves should be installed.

5It should be convenient for the replenishment of regenerant.

6There should be space for operation and maintenance near the equipment.

Ii. Installation of control valves and filling of resin in tanks

1Before filling, the lifting pipe (with the lower water distributor) should be placed in the resin tank below the tank opening0.5mmAt this point, cut off and guide the Angle (at this time, the lifting pipe opening should be sealed with tape to prevent resin from entering the lifting pipe).

2Pour the resin into the resin tank along the gaps around the lifting pipe and make it level at the bottom of the tank.

3Pour the processed resin into the resin tank along the periphery of the lifting pipe in accordance with the specified filling volume.

4The above operations should keep the lifting pipe always at the position of the resin tank opening.

5Remove the sealing tape of the lifting pipe.

6After installing the water distributor, align the socket of the controller with the lifting pipe, and carefully turn the control valve clockwise. (Note: During the installation of the control valve, make sure the lifting pipe is inserted into the valve body.) Tighten the control valve onto the interface of the tank.

Iii. Pipeline Connection of Water Softening Equipment

1The connection of pipelines should refer to the relevant contents of the local construction specifications.

2Connect the inlet and outlet water pipes according to the controller's diameter. The raw water supply pipeline shall not be smaller than the inlet pipe diameter to ensure sufficient flow.

3Manual valves should be installed on the inlet and outlet pipes. A bypass valve should be installed between the inlet and outlet pipes. A sampling valve should be installed in front of the outlet pipe section. It is recommended to install one on the inlet pipeYType filter; Prevent dirt in the pipeline from blocking the valve body and causing the equipment to fail to operate normally. When multiple systems are connected in parallel, pay attention to the same path of the inlet and outlet water pipelines.

4Try to shorten the connection length of the drainage pipe, reduce the degree of curvature, and the distance between the control valve and the drainage ditch should not exceed6"Mi;

5When connecting the drainage pipe to the drainage channel, keep a certain distance between the water surfaces of the drainage pipe and the drainage channel to prevent sewage from being siphoned back to the water softener.

6No valves of any kind shall be installed in the drainage pipes.

7The connection of the brine pipe must maintain good sealing; otherwise, it will affect the regeneration effect of the water softener.

8All kinds of pipelines are equipped with independent supports, and it is not allowed to transfer the gravity and stress of the pipelines to the control valves.

Iv. Application Scope of Water Softening Equipment

　　The water softening equipment (softener) provided by Beijing Yuanlai Water Treatment Company can be widely applied in various industrial and civil water softening equipment, such as: boiler water supply for steam boilers and hot water boilers, make-up water for exchangers, evaporative condensers, direct-fired machines and other systems, make-up water for heating and air conditioning systems, textile printing and dyeing, papermaking, bathing, good domestic water and other fields.

       It can also be used for the treatment of domestic water in hotels, restaurants, office buildings, apartments, homes, etc., as well as for softening water treatment in industries such as processing, beverages, brewing, laundry, chemicals, and pharmaceuticals, with a treatment flow rate ranging from per hour0.3～Hundreds of tons, dedicated to providing a complete set of system solutions for implementing softened water configuration plans.
