Installation steps for water softening equipment

Released Date: Sep 17,2015 Article Source: Yuanlai Water Treatment

Basic requirements for the installation steps of water softening equipment: Water quality: 5 millimoles per liter; Water pressure: 3-4 kilograms. I. Installation parts: 1. Align the direction and position of the equipment properly. 2. Connect the lower water distributor and the pipe with PVC glue, place them in the middle of the bottom of the exchange tank, and cut the upper part of the pipe horizontally at the top of the exchange tank opening. 3. Seal the top of the pipe with transparent adhesive tape. 4. Put the cation resin into the exchange tank and remove the transparent adhesive tape. 5. Install the upper water distributor on the controller, then connect it to the pipe and tighten it. After the internal installation of the equipment is completed, bypass valves and union joints should be installed at the inlet and outlet for maintenance, and a water detector should be installed on the outlet pipe. So as to test the water quality. 7. Valves should not be installed at the sewage outlet. 8. Salt absorption

　　Installation steps for water softening equipment

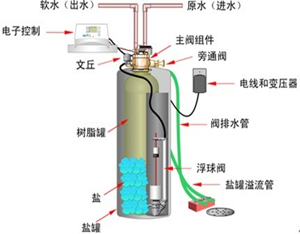

Flowchart

　　Basic requirements

　　Water quality5Millimoles/Lift pressure3-4Kilograms

　　I. Installation Part:

　　1Align the direction and position of the equipment properly.

　　2Use the lower water distributor and its pipePVCGlue is attached, and it is placed in the middle of the bottom of the exchange tank. The upper part of the tube is aligned with the top of the exchange tank opening and cut horizontally.

　　3Seal the top of the pipe with transparent adhesive tape.

　　4Put the cation resin into the exchange tank and remove the transparent adhesive tape.

　　5Install the upper water distributor on the controller, then connect it to the pipe and tighten it.

　　6After the internal installation of the equipment is completed, bypass valves and union joints should be installed at the inlet and outlet for maintenance, and a water detector should be installed on the outlet pipe. So as to test the water quality.

　　7Valves should not be installed at the sewage outlet.

　　8For the salt suction pipeline, please try to shorten the pipeline between the controller and the salt tank as much as possible.

　　9The power supply should not be controlled by a switch.

　　10After installation is completed, waitPVCThe glue can be tested for water only after it has dried.

　　Ii. Debugging Section

　　1Open the water inlet and outlet1/4After all the air inside the equipment has been discharged, open the valve to the maximum.

　　2Manually press the program to the backwash position. Time10-15Minutes.

　　3After the current program ends, the system will enter the salt absorption and slow wash positions. The time shall be no less than40Minutes. (According to on-site Settings

　　4When the system has drawn up all the salt solution in the salt tank, the system will automatically replenish water into the salt tank. (Same as above

　　5After the salt solution in the salt tank was replenished in the previous procedure, this procedure is the quick rinse position. "General15-20About a minute.

　　6When2-5When the program is completed, the system will return to the water supply position. At this point, use a test cup to fill a cup of water at the water test port for inspection. If it is suitable, it can be put into use.

　　Others: Boiler water standards:0.03Millimoles/l
