Introduction to Continuous Water Supply Single-valve Double-Tank Boiler Water Softening Equipment (Water Softener

Released Date: Nov 11,2015 Article Source: Yuanlai Water Treatment

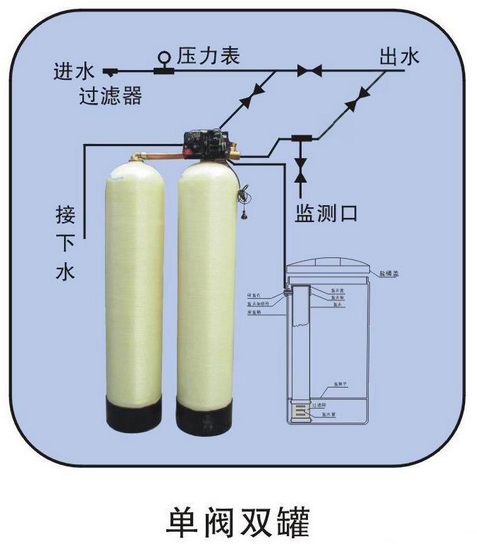

The single-valve double-tank boiler water softening equipment (water softener) is a complete machine composed of a fully automatic water softening controller, a resin tank for single-valve double-tank water softening equipment, strong acid type sodium ion cation resin, and a salt tank. It is widely applied in industrial boilers, cooling circulating water, steelmaking, steel rolling, large transformers, civil hot water boilers and other occasions. Now let's introduce the continuous water supply single-valve double-tank water softening equipment (water softener). The multi-way valve in the continuous water supply single-valve double-tank boiler water softening equipment is a multi-path integrated valve that uses the reciprocating motion of the piston to switch the water flow direction during all working processes of the water softener. It also has components such as the regeneration system, brine injection flow-limiting orifine plate, and blowdown flow-limiting orifine plate. The regeneration control device in the continuous water supply single-valve double-tank boiler softened water equipment is the control part of the control valve, consisting of a regeneration controller and a drive device. The regeneration controller operates as set

Single-valve double-tank boiler softened water equipment(Water softenerIt is a complete machine composed of a fully automatic soft water controller, a single-valve double-tank soft water equipment resin tank, a strong acid type sodium ion cation resin, and a salt tank. It is widely applied in industrial boilers, cooling circulating water, steelmaking, steel rolling, large transformers, civil hot water boilers and other occasions.Now let's introduce continuous water supplySingle-valve double-tank water softening equipment(Water softener)

Continuous water supplyThe multi-way valve in the single-valve double-tank boiler water softening equipment is a multi-path integrated valve that uses the reciprocating motion of the piston to switch the water flow direction during all working processes of the water softener. It also has components such as the regeneration system, brine injection flow-limiting orifine plate, and blowdown flow-limiting orifine plate.

Continuous water supplyThe regeneration control device in the single-valve double-tank boiler softened water equipment is the control part of the control valve, consisting of a regeneration controller and a drive device. The regeneration controller sends action signals to the drive device according to the set program, and the drive device pushes the piston to reciprocate, thereby completing all the working processes of the water softener. If the water softener adopts the flow regeneration start-up mode, a flowmeter also needs to be installed at the water outlet of the water softener to provide a flow signal for the regeneration controller.

Continuous water supplyFully automatic control valve for single-valve double-tank pot water dissolving equipment

The dual-tank one-in-use and one-standby control valve series can simultaneously control two resin tanks (one in use and one on standby, alternating regeneration) with a single valve. It can continuously supply softened water. Due to the use of soft water regeneration, the regeneration effect is good and it is suitable for various water usage scenarios. For systems with large water consumption, multiple units can be operated in parallel.

Continuous water supplyThe structural features of the single-valve double-tank softened water equipment: One valve controls two tanks, with two pistons. One controls the regeneration program, and the other enables the mutual switching between the two tanks. Regeneration is initiated by the flow rate. It is suitable for occasions that require continuous supply of softened water and adopts a one-in-use and one-standby form.

Continuous water supplyRegeneration system for single-valve double-tank boiler softened water equipment

Continuous water supplyThe regeneration system of the single-valve double-tank boiler softened water equipment is composed of components such as salt valves, jet injectors, air check valves and salt pipes. The salt valve is connected to the jet injector through a connecting pipe. The salt water pipeline is opened or closed by the rotational movement of the salt water CAM to switch the salt suction, slow washing and salt tank water filling working processes.

The jet injector is installed on the multi-way valve. It sucks the salt solution in the salt tank into the resin tank by the negative pressure generated when water flows through the nozzle and throat. The concentration of the salt solution used for regeneration is determined by the ratio of the water flow rate injected into the jet injector to the saturated salt solution volume sucked in.

The above isContinuous water supplySingle-valve double-tank boiler softened water equipmentIntroduction to (water softener), if you want to purchaseContinuous water supplySoftened water equipmentFor water softeners, please consult Beijing Yuanlai Water Treatment Equipment Co., LTD.15With years of focus on the water treatment industry, you can trust us!
