Campbell(Canpure)EDIOperating conditions and introduction

Group Profile

　　Kanpur Equipment Co., LTD.Canpure Equipment International Ltd.Provide innovative membrane products and membrane technologies to the global water treatment market. Kanpur Membrane products and membrane technologies incorporate multiple technologies, As a result, good performance and achievements were achieved.

　　Beijing Yuanlai Water Treatment Equipment Co., LTD. (General Agent)

　　Kanpur membrane products respectively adopt alkali-resistant materials in terms of materialsPSAnd resistant to oxidationPVDFIn terms of filtration accuracy, there are ultrafiltration and microfiltration respectively. In terms of component form, there are internal pressure, external pressure, immersion and electric drive respectively. Therefore, there is always a membrane product that is more suitable for your water purification needs.

　　A "good" film should be "used well". Nowadays, the application scale and scope of membranes are getting larger and larger, but the technology for membrane application is relatively becoming increasingly scarce. This often becomes the reason for the "resistance" and failure of membrane application. Practice has proved that to truly make good use of membranes, the support of a dedicated technical team is needed. Kanpur Company has a strong service team that can provide full-process services including pre-scheme design, construction design, system integration, automatic control design and system integration, equipment installation and commissioning, as well as after-sales service. In addition to providing users with a "user-friendly" membrane hardware, we also offer "user-friendly" membrane technology software to achieve the goal of "as long as you use my membrane, I will make sure you use it well".

Typical performance

　　Water is an excellent solvent and also a good heat transfer medium. The chemical industry often requires purified water as a solvent, heat transfer medium or for generating steam. In most cases, water used in chemical processes needs to be purified.

　　When water is a heat transfer medium, it generally needs to be filtered. Ultrafiltration technology has a higher filtration accuracy in this aspect than traditional sand filtration, multi-media filtration or filter, and can remove all suspended solids and some alternating substances.

　　When water is used as a solvent or for generating steam (boiler feed water, cogeneration of heat and power), desalination treatment of water is required. The traditional desalination method is the ion exchange method. The essence of this method is to exchange cations in water with acid and anions with base. Therefore, this method consumes acid and alkali and causes environmental pollution. Therefore, power plants often refer to demineralized water as chemical water or chemical demineralized water. The petroleum and petrochemical industry requires desalinated water to generate steam for oil thermal recovery, oil refining or petrochemical production, and it can also achieve cogeneration of heat and power. The oil production plant still has the problem of purifying the water for oilfield reinjection. Kanpur Company has adopted a combination of technologies such as specially designed ultrafiltration membranes with hydrophilic properties, high filtration accuracy and large pore size, as well as proprietary system design techniques. After years of efforts and practice, it has finally overcome the technical difficulties in ultrafiltration membrane filtration for oilfield reinjection water. Advocated by KampleTMS (Total Membrane Solution)Membrane integration technology is to use ultrafiltration membranesUFFiltering suspended solids in water, reverse osmosis membranesRO"Remove"98-99%The salt is removed and then desalinated by electricity.EDIRemove the remaining salts to obtain "physical" demineralized water.TMSThe desalinated water produced by this method has more stable water quality and is more environmentally friendly.

Power generation energy industry

　　Thermal power plants use steam as the medium to convert thermal energy into electrical energy. Among them, the pressure of the steam determines the efficiency of transmission. In order to form steam at a higher pressure, the water that forms the steam is purified.

　　The main purpose of traditional boiler feed water treatment is desalination, and the method used is ion exchange. The essence of this method is to exchange cations in water with acid and anions with base. Therefore, this method consumes acid and alkali and causes environmental pollution. Therefore, power plants often refer to demineralized water as chemical water or chemical demineralized water.

　　In the 1980s and 1990s, reverse osmosis membrane water treatment could purify water without consuming acid and alkali98-99%The salt is removed.

　　Advocated by KampleTMS (Total Membrane Solution)Membrane integration technology is to use ultrafiltration membranesUFFiltering suspended solids in water, reverse osmosis membranesRO"Remove"98-99%The salt is removed and then desalinated by electricity.EDIRemove the remaining salts to obtain "physical" demineralized water.TMSThe desalinated water produced by this method has more stable water quality and is more environmentally friendly.

Technical Introduction

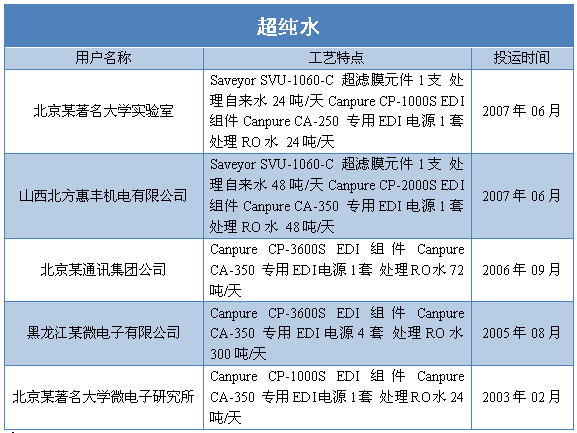

　　Ultrapure water is water in which almost all conductive media in water are removed, and to a very low extent, colloidal substances, gases and organic matter that do not dissociate in water are also removed. The resistivity is greater than18MΩ﹒cmOr close18.3MΩ﹒cmLimit value.

　　Advocated by KampleTMS (Total Membrane Solution)Ultrafiltration membranes for membrane integration technologyUFFiltering suspended solids in water, reverse osmosis membranesRO"Remove"98-99%The salt is removed and then desalinated by electricity.EDIRemove the remaining salts to obtain "physical" demineralized water.TMSThe desalinated water produced by this method has more stable water quality and is more environmentally friendly.
