Introduction to Boiler Water Softener

　　Boiler water softener, also known as boiler water softener or boiler water softening equipment, is mainly used to treat the hardness of the feed water in low-pressure, medium-pressure boilers, steam boilers, hot water boilers, etc. After softening, it can meet relevant national standards.

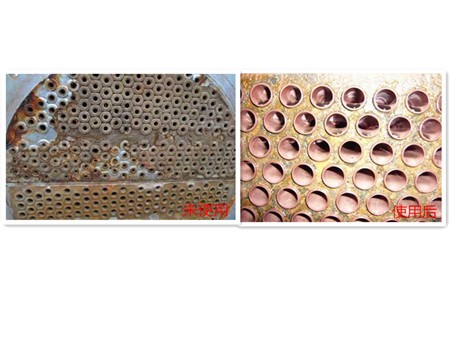

　　Without installing a water softener, regular manual cleaning is required, which consumes a lot of manpower and material resources, and the effect is not as good as expected. Beijing Yuanlai Water Treatment Equipment Co., Ltd. can provide boiler water softening equipment, also known as water softeners.

　　The main advantages of the boiler water softener:

　　1. Fully automatic operation

　　As the water softener adopts computer online monitoring, it has achieved continuous operation and fully automatic operation of the regeneration process. The entire process is free from human interference, and there will be no advance or delay in the operation of each process. Moreover, the switching of each process is almost carried out simultaneously. Therefore, the entire set of equipment is accurate and reliable. Save water, salt, electricity and labor. The cost of water production is extremely low.

　　Second, the technology and operation are stable

　　The entire softening device operates centrally with a multi-way servo valve equipped with a timer, and is complemented by a modern microcomputer control system, making the equipment of high grade. The system is reliable, with a low failure rate and a significantly improved degree of scientific management. The computer also has a specific function of automatically adjusting and compensating for the remaining water volume to keep it at the optimal operating point. For example, the regeneration time can be set at 2 a.m. to avoid peak hours. During regeneration, the computer can automatically estimate the average water production volume of the system over the past seven days and compare it with the current remaining volume to determine whether to issue a regeneration command. The device also adopts non-volatile memory.NOVRAM" Once the power is lost, all the data of the computer can be retained for a relatively long time. After the power is restored, it can automatically resume transmission from the breakpoint. All valve bodies are precisely made of plastic steel and adopt valve disc self-pressure or pump sealing technology, which is leak-proof, clog-proof, corrosion-resistant and solves the problem of pollution to the exchange resin.

　　Third, there is no need to set up a dedicated salt-making system

　　This softening device ingeniously designs a self-priming injector driven by the inlet water pressure in the multi-way servo valve, which performs salt suction and water replenishment at regular intervals as required by the process. The entire salt water preparation is only set with a diameter near the exchange tank500-1000Millimeters, height1000A lightweight salt tank with a small water level controller will do. The salt pool is omitted. The salt pump and necessary distribution pipelines and power distribution equipment also eliminate the additional investment in a dedicated water treatment room.

　　Four. Compact structure and small floor space

　　The entire softening device is rationally designed, exquisitely configured and lightweight, and can be assembled on a generally flat cement floor. No special foundation is required. A set1T/H The water production device occupies only a small area1Square meters. The standardized assembly of accessories only requires1-2Commissioning, training and water production can be completed and put into operation within a few days.

　　Five. Simple operation and easy management

　　As long as the initial data of the soft water equipment is set correctly, the system can operate accurately and faithfully according to the established program. In addition to the daily monitoring of the computer display screen, all the operation for the operator is to add salt to the salt tank at regular intervals and in fixed quantities. Therefore, ordinary operators can quickly get the hang of it and manage it independently after necessary explanations. Almost all users have no dedicated positions but are managed by boiler operators on their behalf.

　　Six. The annual operating cost is extremely low

　　Based on the preliminary statistics and calculation of over a hundred water softening devices of different models, due to their water, electricity, salt and labor savings, the cost of producing one cubic meter of qualified softened water is approximately on average lower than that of traditional water treatment methods2.5The Renminbi yuan.

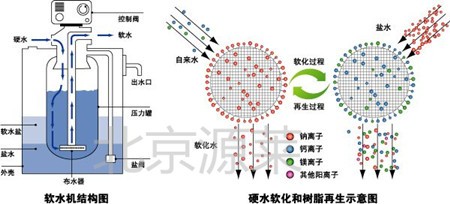

　　                                                        Boiler water softener, Working principle of boiler water softening equipment (Reference)
