Silicon-phosphorus crystal is a chemical agent. When silicon-phosphorus crystal is added to the silicon-phosphorus crystal tank, it is the chemical component of the agentP2O5After being converted in the dosing tank, tap water with anti-corrosion and scale inhibition properties is output outward. Treated tap water can directly provide the water needed for industrial production and People's Daily life. It is mainly used for domestic hot water and is also widely applied in industrial production. Silicon phosphorus crystals are composed of soda﹑Phosphoric acid﹑The active ingredient raw materials such as calcium carbonate are in1200-1700℃The glass-like small balls are fired by high-temperature technology, and during the firing process, mineral elements such as calcium, zinc and magnesium that the human body needs daily are added. Water treated with common silicon-phosphorus crystals is a good way for the human body to naturally supplement minerals. Silicon-phosphorus crystals play a positive role in anti-corrosion, scale inhibition and extending the service life of equipment in industrial water systems.

　　Silicon-phosphorus crystalIt is an economical and effective method for protecting the pipelines of domestic drinking water and industrial water systemsWater treatment chemicalsIt adopts controlled release technology and is widely used in the anti-corrosion and scale prevention treatment of domestic hot water. Silicon phosphorus crystal adopts American technology and adds some components suitable for water quality on the basis of the original American formula. The application conditions in different regions of our country and a large number of practices have proved that silicon phosphorus crystal has its unique advantages in scale inhibition, anti-corrosion and water quality improvement, especially in anti-corrosion performance.

　　Silicon phosphorus crystal has a wide range of target groups, including hot water boilers, air energy, solar energy, drinking water, industrial water treatment and other fields. In industries related to domestic hot water, drinking water and industrial water, scale inhibition treatment is indispensable. The historical development of the silicon-phosphorus crystal technology field is relatively short compared to industrialized regions such as Europe, the United States, and South Korea, lasting only three to five years. It is full of vitality, with the market in an upward trend and stable production growth. Coupled with the public and government's concern for environmental protection, the water treatment design of silicon-phosphorus crystals mainly tends towards scale inhibition and improvement of efficiency levels. The operation method of using silicon phosphorus crystal is very simple. First, put it into the medicine tank, then connect the water source. The medicine in the tank will undergo Brownian motion due to the impact of water flow. At this time, the medicine slowly dissolves in the water and can normally exert its pharmacological effect.

　　"Silicon phosphorus crystalWater treatmentThe technology is different from other water treatment chemicals and equipment currently available in the domestic market. This technology is applicable to domestic water systems. It combines the prevention of secondary water pollution with the protection of water-using equipment. It not only solves the problems of "yellow water" and "red water", avoids the corrosion of pipelines and equipment, but also inhibits the scaling problem during the heating process.

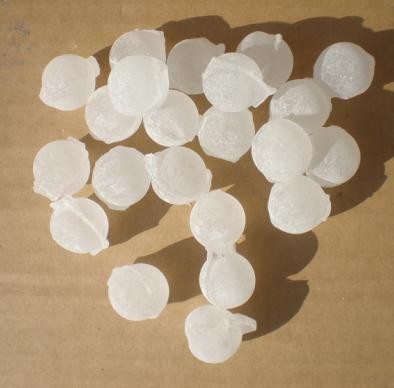

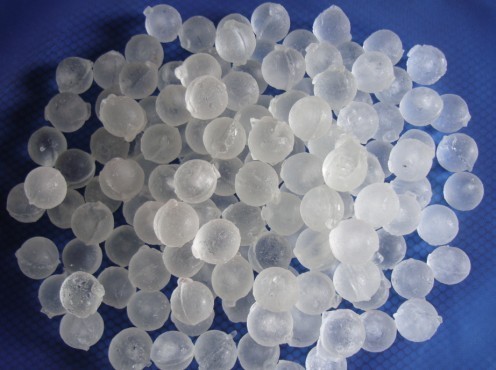

　　"Silicon phosphorus crystal" is a slowly dissolving spherical chemical agent. The medicine is made from a variety of phosphates and silicates through special processing techniques. For a specific water usage system, it is only necessary to install a silicon phosphorus crystal tank of appropriate capacity on the main pipeline and fill it with "silicon phosphorus crystal". When the system is using water, The "silicon phosphorus crystal" then enters the water usage system and begins to function.

I. Installation Steps and Requirements for Silicon Phosphorus Crystal Tanks:

　　1First, check if the appearance of the equipment is damaged. If no abnormalities are found during the inspection, then proceed with the installation.

　　2The equipment should be installed on the prefabricated concrete foundation platform, and there is no need to fix the equipment to the concrete foundation platform.

　　3The installation form of the equipment should be bypass installation to meet the need of adding silicon phosphorus crystal agents without shutting down the machine.

　　4The distance between the large outer diameter of the equipment body and the wall shall not be less than1000mmThe distance between devices shall not be less than1500mm.

　　5The distance for equipment maintenance shall not be less than500mm.

　　6Pipe supports should be installed on the pipes at the inlet and outlet of the equipment, close to the pipe openings;Greater than or equal to the one directly connected to the container pipe openingDN150It is advisable to set up a support under the valve.

　　7Valves need to be installed at the water inlet, outlet and bypass pipe of the equipment.

　　8,BTDR-15,25,40,50FZThe type of equipment is connected to the pipeline by threads.BTDR-65,80,100,125,150FZThe type of equipment and pipelines are connected by flanges.

Ii.Scope of applicationThis silicon-phosphorus crystal can be widely applied in domestic hot water, drinking water systems, heat exchangers and boiler make-up water systems, industrial circulating water and make-up water systems.

Iii. Product Features of Silicon Phosphorus Crystal

　　1Easy to use: No power consumption, no increase in the resistance of the water system, no need for dedicated maintenance on a daily basis, only required3-6Add silicon phosphorus crystals once a month.

　　2, Low cost: The dosage of silicon phosphorus crystal is approximately per ton of water1-5After the equipment is put into operation, the consumption of chemicals can be observed through the viewing window hole of the dosing tank.

　　3Hygiene: Silicon phosphorus crystal is a kind of material that can be used inDrinking waterThe chemistry used in the systemWater treatment chemicalsThe ingredients of the medicine are in complianceFAO/WHO(The United Nations and agricultural organizations/World Health Organization)The standard has been recognizedNSF"(National Environmental Sanitation Foundation of the United States)A registered trademark.

　　4Obvious effect: Silicon-phosphorus crystal glass spheres, composed of polyphosphates and silicates, are sintered at high temperatures into glass-like spheres. Silicon phosphorus crystals are slightly soluble in water and form an automatic protective film on the pipe wall, preventing the corrosion and scaling of metal materials by microorganisms in water. In addition, it can also penetrate rust nodules, causing them to fall off and making the pipe wall smooth.

　　Precautions for the use of silicon phosphorus crystal

　　Silicon-phosphorus crystals only function to prevent the formation of scale and to prevent corrosion. Therefore, the water filtered by silicon-phosphorus crystals must pass throughROmembraneIt can be drunk and used only after filtration or boilingUFMembrane-filtered ones do not meet the standard for direct drinking. When using silicon phosphorus crystals at the drinking water terminal, a timed drainage device must also be installed to control the concentration of silicon phosphorus crystals brought into the water. Because silicon-phosphorus crystals only dissolve slowly rather than have low solubility, water that is soaked for a long time will dissolve a large amount of silicon-phosphorus crystals, and the harm to the human body is self-evident.

Four. Some using silicon-phosphorus crystalsPrecautions

　　1Silicon phosphorus crystals only function to prevent the formation of scale and to prevent corrosion. Therefore, the water filtered by silicon-phosphorus crystals must pass throughROIt can be drunk and used only after membrane filtration or boilingUFMembrane-filtered ones do not meet the standard for direct drinking. When using silicon phosphorus crystals at the drinking water terminal, a timed drainage device must also be installed to control the concentration of silicon phosphorus crystals brought into the water. Because silicon-phosphorus crystals only dissolve slowly rather than have low solubility, water that is soaked for a long time will dissolve a large amount of silicon-phosphorus crystals, and the harm to the human body is self-evident.

　　2"Brand":Generally speaking, choosing a good brand means choosing cost savings, choosing peace of mind, and choosing service. When promoting their products, all manufacturers can talk the talk and make all kinds of promises, but few can actually keep their promises. Without sufficient capacity and financial resources, it is impossible to support after-sales service and ensure the timely supply of spare parts. Most users tend to trust the original imported silicon phosphorus crystal. The original imported silicon phosphorus crystal must have a customs declaration form. Ask the manufacturer to provide the original customs import declaration form and go to the local relevant department to verify whether it is a genuine original import. Be sure to keep your eyes wide open and look carefully to avoid being deceived and spending money in vain!In addition, choose products that have been certified as qualified by relevant domestic inspection departments.

　　3"Selection":There are various models available for the same brand. The selected model is too large, which wastes funds and energy. The selected model is small, with less capital and energy expenditure, but it fails to meet the usage requirements.

　　4After-sales service:Silicon phosphorus crystals need to be replenished with the consumed chemicals regularly. Without good service to protect you, it will truly be a hard time. This choice cannot be based on what the manufacturer says. Instead, it should be investigated. First, look at the company's scale. Second, check the warehouse accessories. Third, look at the maintenance and repair sites. Fourth, check the user feedback.
