The principle and application of reverse osmosis equipment

Released Date: Aug 13,2015 Article Source: Yuanlai Water Treatment

The principle and application of reverse osmosis equipment I. RO Reverse Osmosis Pure Water equipment The reverse osmosis device uses sufficient pressure to make the solvent (usually water) in the solution pass through the reverse osmosis membrane (or semi-permeable membrane) and separate it out. Because this process is opposite to the direction of natural osmosis, it is called reverse osmosis. After reverse osmosis treatment, the content of impurities in water is reduced, and the purity of water quality is improved. Its desalination rate can reach over 97%, and it can remove most of the colloids and large-molecular-weight organic matter in water. Reverse osmosis can adapt to various types of raw water with different salt contents, especially in water treatment projects with high salt content, it can achieve excellent technical and economic benefits. Reverse osmosis has a high desalination rate, high recovery rate, stable operation, small floor space and simple operation, which makes reverse osmosis equipment widely used in various types of desalinated water

　　The principle and application of reverse osmosis equipment

　　I.ROReverse osmosis pure water equipment

　　The reverse osmosis device uses sufficient pressure to make the solvent (usually water) in the solution pass through the reverse osmosis membrane (or semi-permeable membrane) and separate it out. Because this process is opposite to the direction of natural osmosis, it is called reverse osmosis. After reverse osmosis treatment, the content of impurities in water is reduced, the purity of water quality is improved, and its desalination rate can reach97%It can also remove most of the colloids and large-molecular-weight organic substances in water.

　　Reverse osmosis can adapt to various types of raw water with different salt contents, especially in water treatment projects with high salt content, it can achieve excellent technical and economic benefits.

　　Reverse osmosis has a high desalination rate, high recovery rate, stable operation, small floor space and simple operation, which makes reverse osmosis equipment widely used in various desalination water treatment projects. Since reverse osmosis equipment removes most colloids and large-molecular-weight organic substances while desalinating, it is indispensable in the production of pure water.

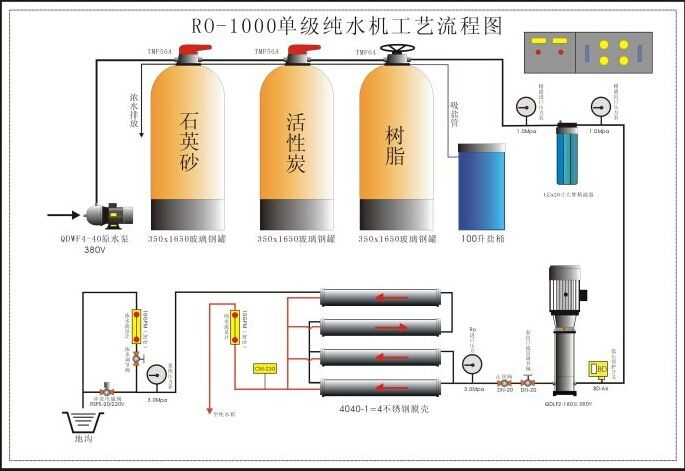

　　Single-stage reverse osmosis process flow:

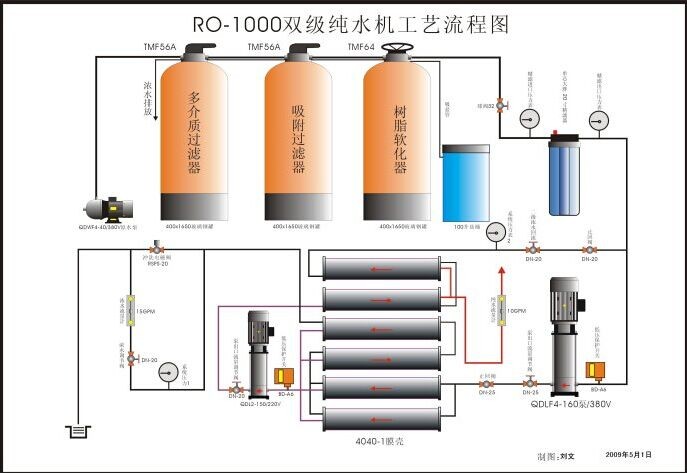

　　Two-stage reverse osmosis process flow

　　The application scope of reverse osmosis pure water equipment

　　★ Drinking purified water: real estate management, communities, enterprises and institutions, as well as production lines for barrel water and bottled water.

　　★ Water for the electronics industry: Water for rinsing electronic components such as integrated circuits, silicon wafers, and display tubes.

　　★ Pharmaceutical industry water usage: large-volume parenterals, injections, tablets, biochemical products, equipment cleaning.

　　★ Process water for the chemical industry Chemical circulating water, chemical product manufacturing, etc

　　★ Industrial water: drinking purified water, beverages, beer, liquor, etc.

　　The main technical parameters of reverse osmosis pure water equipment

　　Host modelRO-250/RO-500/RO-1000/RO-2000/RO-5000

　　Water production volume0.25T/H0.5T/H1.0T/H2.0T/H5.0T/H

　　Utilization rate50%50%70%70%70%

　　Desalination rate99%

　　The quality indicators of the produced water comply with the national standards for drinking purified water.GB-17323-98)

　　The technical requirement temperature for the incoming water1-- -45℃

　　Pressure0.15-0.4MPa

　　Rated working pressure1.0-1.5 MPa

　　High work pressure1.8 MPa

　　Power supply220V/50HZ380V/50HZ

　　Operating ambient temperature1.0-45℃
