The raw water pretreatment system for pure water equipment

Released Date: Mar 09,2016 Article Source: Yuanlai Water Treatment

Pure water equipment, as the name suggests, is a device that produces clean water. With the sharp increase in population, fresh water resources are gradually facing depletion. In this era of water shortage, pure water equipment becomes particularly important. So, what is the raw water pretreatment system of pure water equipment like? Now let me introduce it to you: 1. Raw water Pretreatment system: 1. Raw water pump The function of the raw water pump is to provide raw water pressure for the pretreatment system. If the raw water pressure is sufficient, this equipment does not need to be used. Generally, the raw water pressure is required to be higher than that of ge. 0.3MPa. 2. Raw water tank The function of the raw water tank is simpler: it is used to store raw water. It is just to prevent the raw water from failing to supply the equipment, so it is used as a medium transfer (usually adding a float switch can make the entire system more automated). 3. Quartz sand filtration

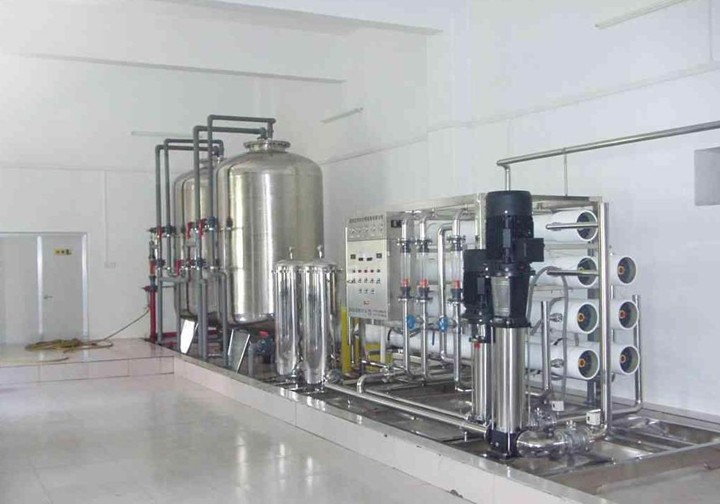

Pure water equipment

　　I. Raw Water Pretreatment System:

　　1Raw water pump

　　The function of the raw water pump is to provide raw water pressure for the pretreatment system. If the raw water pressure is sufficient, this equipment is not necessary. Generally, the raw water pressure is required≥0.3MPa.

　　2Raw water tank

　　The function of the raw water tank is simpler; it is used to store raw water. It's just to prevent the raw water from failing to supply the equipment, so it can be used as a medium transfer(Usually, adding a float switch can make the entire system more automated).

　　3Quartz sand filter

　　Quartz sand filter media are used to remove larger suspended particles, sand, impurities, etc. from the raw water, reducing the turbidity of the water. Moreover, it can also remove a large amount of organic matter, viruses and other substances in the water as the turbidity decreases.

　　4Activated carbon filter

　　The adsorption capacity of activated carbon is utilized to effectively adsorb organic matter, free residual chlorine, colloids, particles, microorganisms, certain metal ions and decolorize in raw water.

　　5Softening system(Dosing system)　　

By taking advantage of the exchange performance of ion resins, calcium and magnesium ions in the raw water are removed to prevent the formation of scale in subsequent equipment, or it can be changed to a dosing system where scale inhibitors are directly added.

　　The above is an introduction to the raw water pretreatment system of pure water equipment. We hope it will be helpful for everyone's future use of pure water equipment. Beijing Yuanlai Water Treatment Equipment Co., Ltd. always puts the interests of customers first. Starting from the perspective of customers, we design, develop and manufacture equipment. With advanced water treatment technology, we are a leader in the water treatment industry. Welcome your inquiries.
