Technical Requirements for FLM-ULP4040-FR Industrial Membrane Elements of Beijing Enterprises Water Group

Released Date: Mar 30,2023 Article Source: Yuanlai Water Treatment

Technical Requirements and Operation Guidelines for Beijing Enterprises Water Group's FLM-ULP4040-FR Industrial Membrane Elements

FLM-ULP4040-FR Technical Requirements for Industrial Membrane elements

1 Performance specifications for membrane elements

Membrane element model

Average water permeability

GPD(m³/d)

Average desalination rate

Effective membrane area

ft²(㎡)

Width of the water supply flow channel

(mil)

FLM-ULP4040-FR

2600(9.8)

99.5

85(8)

Test conditions: Operating pressure ………………………… 150 psi ( 1.03 MPa )

Temperature ...................................................… 77 ℉(

25 ℃)

Concentration ...................................................… 1500mg/L NaCl

Recovery rate of a single membrane element ……………… 15%

pH.................................................................. 7.5-8.0

Minimum desalination rate of a single membrane element ………… 99.0%

Minimum average water permeability ……………………2210gpd(8.4m³/d)

Operating limit: Maximum operating pressure ................................................... 600psi (4.1MPa)

Maximum inlet water temperature ................................................... 113 ° F(45 ℃ )

Maximum water inflow SDI................................................... 5

Influent free chlorine concentration …………………………＜ 0.1ppm

Water enters during continuous operation pH Range ……………… 2-11

Water enters during chemical cleaning pH Range ……………… 1-13

Maximum pressure loss of a single membrane element ……………… 15psi (0.10 MPa)

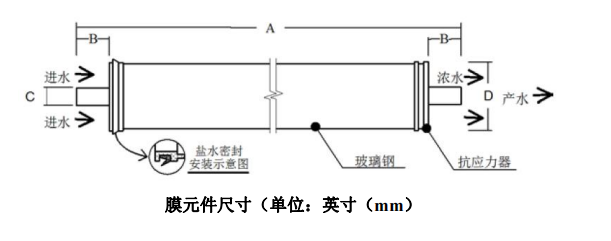

2 Membrane element size

The membrane size of Beijing Enterprises Water Group.png

Product model	A	B	C	D
FLM-ULP4040-FR	40.0(1016)	1.05(26.7)	0.75(19)	3.9(100)

3 Operating Guide

The water supply pressure should be at30-60Gradually increase within the time range of seconds;

The flow rate value should be within15-20Gradually rise to the design cross-flow within seconds;

3) The product water within the first hour should be discharged and not used.

4) Back pressure on the water production side of the membrane element should be avoided at all times.

4 General Information

1) Each membrane element is equipped with a concentrated water sealing ring, a connection adapter and the corresponding ones when leaving the factory O

Ring shape. The specific content is subject to the actual product.

Once a component is moistened, it should always remain moist.

When the system is shut down for a long time, the membrane elements should be immersed in the protective solution to prevent the growth of microorganisms. Standard preservation solution

containing 1.0％Sodium bisulfite (food grade) by weight

Users should avoid using any chemical agents that may affect the membrane elements. If such chemical agents are used in violation of regulations,

Beijing Enterprises Water Group Separation Membrane Company will not be responsible for the warranty.

5 Attention

Due to the inability to control the user's usage methods and conditions, Beijing Enterprises Water Group Separation Membrane Company shall not be held responsible for any consequences resulting from usage

The consequences resulting from the information and data of this sample and the guarantee of the safety and suitability of the product, regardless

Whether to use it alone or in combination with other products, it is recommended that users conduct tests to determine its safety and effectiveness

Whether it is applicable to the specific purpose of use by the user.

Due to technological improvements and product updates, technical data may change at any time without prior notice.
