The variable frequency constant pressure water supply equipment device enables the constant pressure operation of the water supply system for users' daily life and production

Released Date: Nov 23,2016 Article Source: Yuanlai Water Treatment

Variable frequency constant pressure water supply equipment is a new type of energy-saving water supply equipment. The variable frequency constant pressure water supply equipment is an electromechanical high-tech energy-saving water supply device that combines a variable frequency speed regulator with a motor and a water pump by applying microcomputer control technology. It is mainly composed of a water pump unit, a pressure measuring and stabilizing tank, a pressure sensor, a frequency conversion control cabinet, etc.

　　Variable frequency constant pressure water supply

The variable frequency constant pressure water supply equipment is based on the water pressure at the outlet end of the water pump(Or the water flow of the user)To set the parameters, the output frequency of the frequency converter is automatically controlled by the microcomputer to adjust the rotational speed of the water pump motor, achieving closed-loop regulation of the water pressure in the user's pipeline network and ensuring that the water supply system automatically maintains a constant pressure at the set value:When the water consumption increases, the frequency rises and the speed of the water pump speeds up;When water consumption decreases, the frequency drops and the speed of the water pump slows down. This ensures that the entire user network always has sufficient water pressure(It is consistent with the pressure set by the user)And water volume(It varies with the user's water usage).

I.Equipment composition

　　The variable frequency constant pressure water supply equipment mainly consists of a pump unit, a pressure measuring and stabilizing tank, a pressure sensor, a variable frequency control cabinet, etc., and can always maintain the pressure on the pressure gauge(That is, the water pressure in the user's pipeline network)It is equal to the user-set value. It can be used for general domestic or industrial water supply.

Ii.Application scope

　　1Water supply for newly-built residential communities, villas, office buildings and comprehensive buildings.

2Water supply for high-rise buildings, fire protection, hotels and restaurants, etc.

　　3Pneumatic water supply,Renovation of traditional water supply systems such as ground water tank pressurization.

　　4Various cold water supply systems for boilers and hot water for boilers.

　　5Intermediate booster pumping stations in waterworks, secondary pressurization of tap water.

　　6Production and domestic water supply for various industrial and mining enterprises, and pressure stabilization of water distribution networks.

　　7Various types of circulating water and cooling water supply systems.

　　8Pressurized water supply for domestic and fire protection purposes where the pressure of tap water cannot meet the requirements.

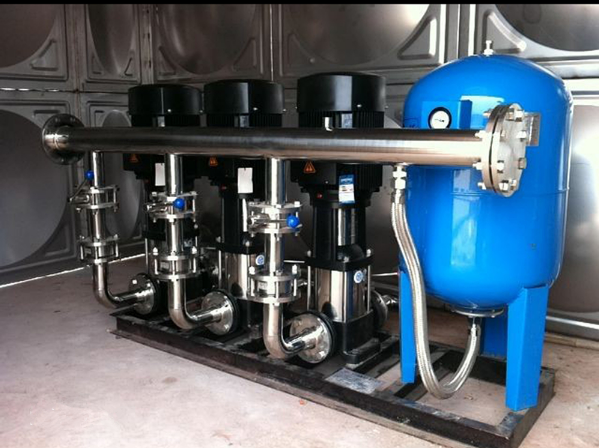

Variable frequency pressure stabilizing water supply system.png

Avic Plaza.jpg

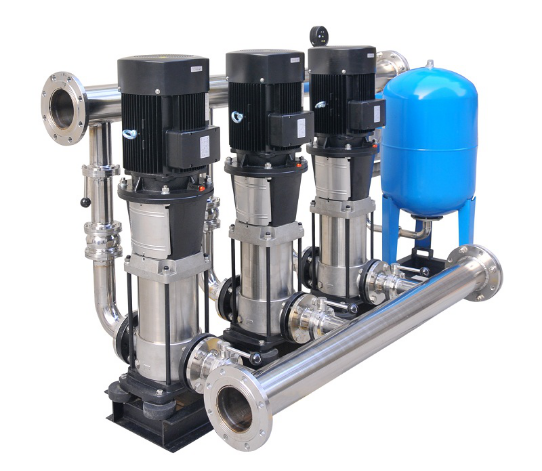

Variable frequency pressure stabilizing water supply system.png
